Ventilation fan
The ventilation fan is located between the ECS cabinet and the transformer cabinet. The purpose of this fan
is to provide proper ventilation to the electrical components within the ECS and electrical cabinets.
Rittal SK 3243
You do not need any tools to remove and replace the ventilation fan.
Removing the Rittal SK 3243 ventilation fan
Open the ECS cabinet door.
1.
Disconnect the fan wires.
2.

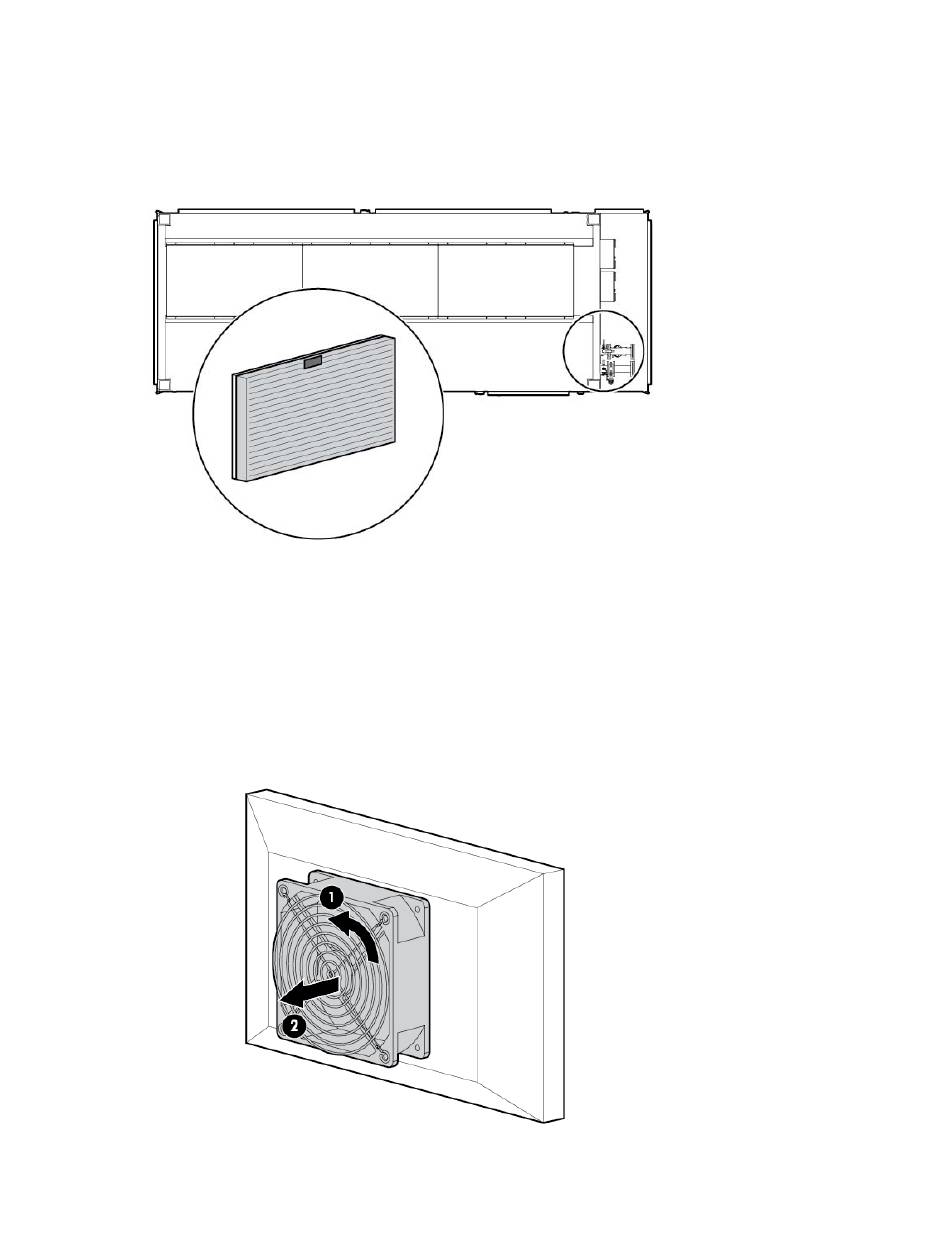

Rotate the fan module counterclockwise to unseat it from the screwless spring terminal (1).
3.
Pull the fan module forward to remove it (2).
4.
Removal and replacement procedures 34
