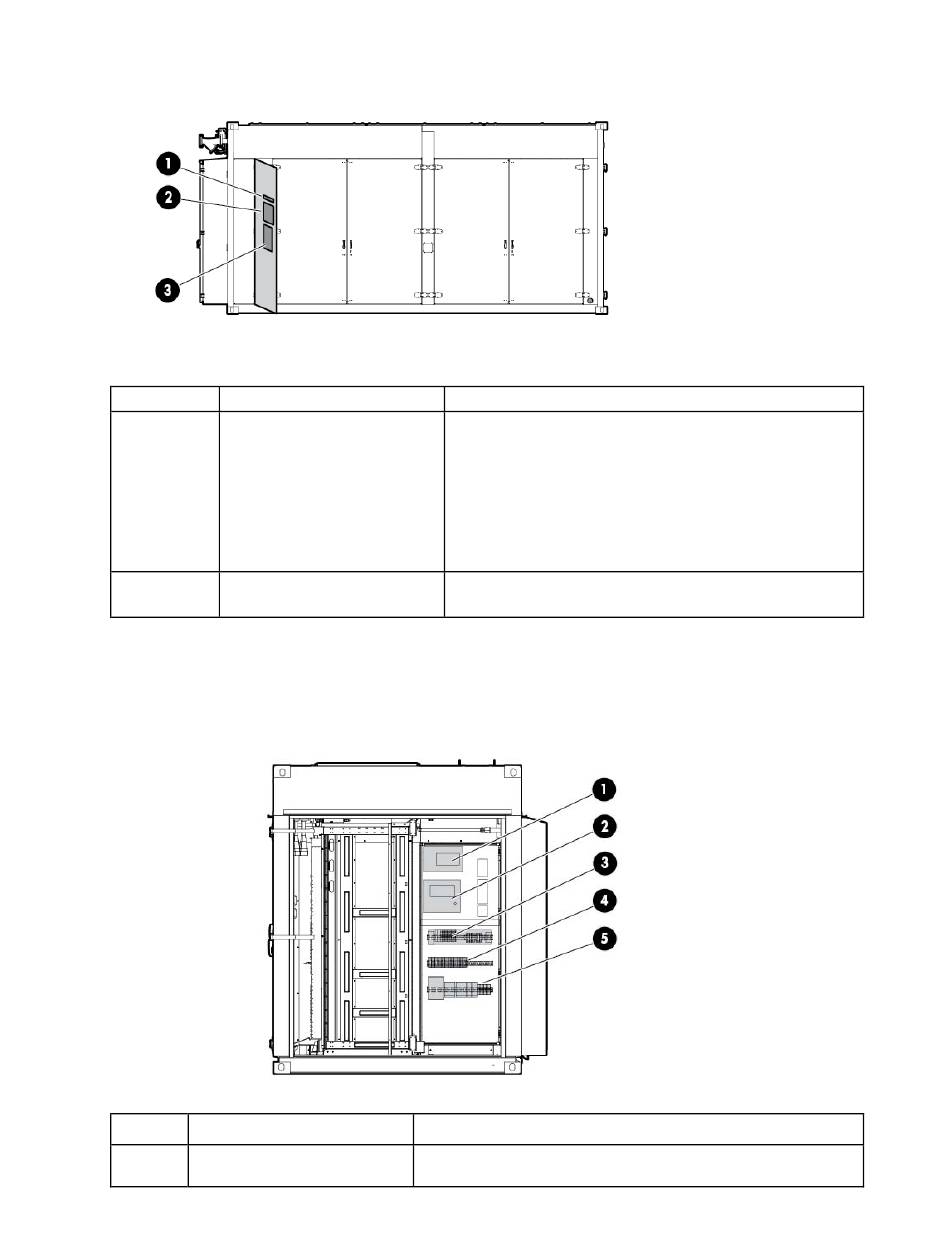

Side view shown
1
2
3
Control cabinet component identification
Item
Component
VESDA air sampling smoke
1
detection unit
Power feeders caution label
Wire color code
Panel schedule/circuit breaker
table/fuse list
Cautions users about phase rotation for all power feeders
Lists the 380-415 Y/200-240 V color codes:
•
Brown—Phase A/L1
•
Black—Phase B/L2
•
Grey—Phase 3/L3
•
Blue—Neutral
•
Green and yellow—Equipment ground
Lists the layout and designation for all circuit breakers and lists
all fuse types and sizes
Description
An early warning, laser scan smoke detection unit
Illustrated parts catalog 12
