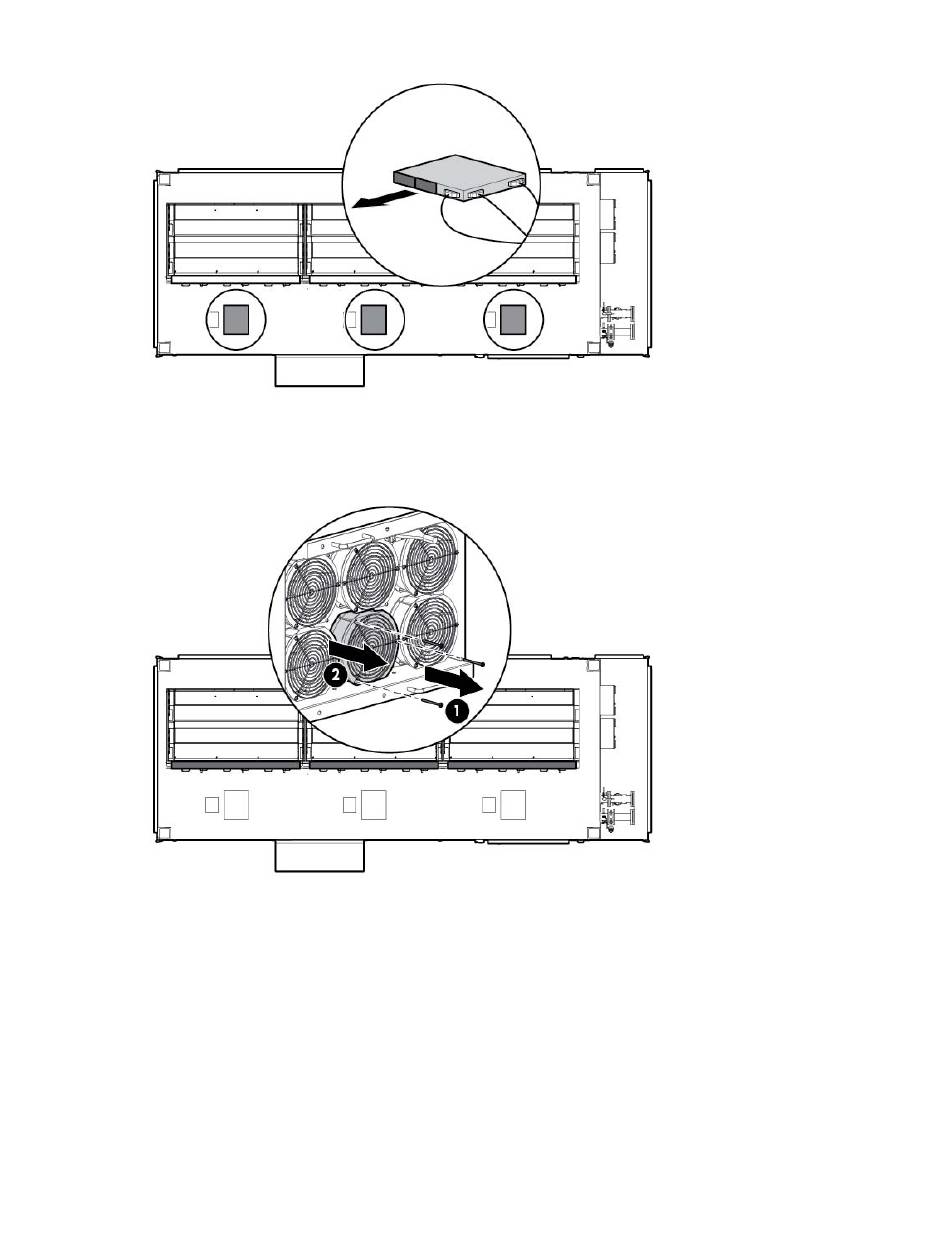

Unseat both power supplies from the fan power assembly.
3.
Remove the three screws that secure the fan in the assembly (1), and then partially remove the fan by
4.
pulling it straight out (2).
Disconnect the wire.
5.
Remove the fan from the assembly.
6.
Replacing the variable speed IT cooling fan
Connect the wire.
1.
Insert the fan into the assembly and push until the fan is fully seated (1).
2.
Removal and replacement procedures 29
