2.Set View

Allow users to view the object on the build plate. Six views are under the view menu, that
is, bottom view, top view, front view, back view, left view and right view.
Method 1：
Click the the [View] button, there are six views in the drop- down list.
Method 2：
Click the the [View] icon on the left, click it again and a sub-menu will appear
with six views for selecting.

3.Reset View

Allow users to reset views by the following two methods:
Click the [View] menu and select [Home View].
Method 1：
Click the [View] button on the left, click it again and you will see the viewing
Method 2：
options, you can click [Reset].

4.Show Model Outline

Click [View]--[Show Model Outline], it will highlight the yellow border of the object.
5.Show Steep Overhang
Click [View]--[Show Steep Overhang]. When the intersection angle between the
model surface and horizontal line is within the overhang threshold value, the surface has
steep overhang and it becomes red in the software. Overhang threshold value could be
set as needed. The default value is 45 degree.

3.2.5 Move

Select the object and move the object by the following two methods:

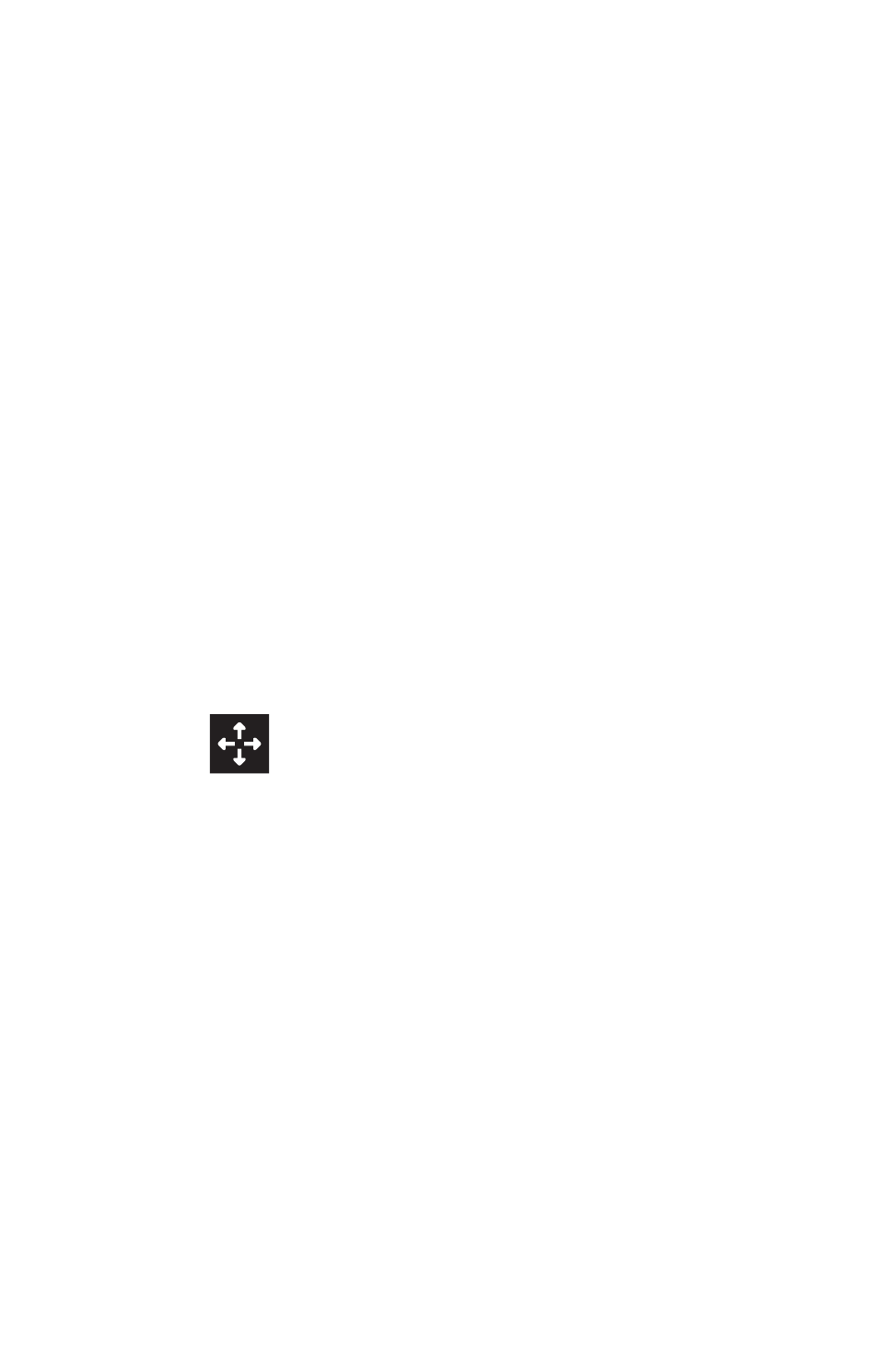

Click the [Move] icon on the left, hold down the left mouse button and drag it
Method 1：
to adjust the location of the model in XY direction. Hold down the Shift key,
hold down the left mouse button and drag it to adjust the location of the
model in Z direction. The distance and the direction of the movement will be
displayed.
Method 2： Click the [Move] button on the left and then enter the distance value to move
the model. You can also click [Reset] to reset distance values.
Note: Users shall click [Center] and [On Platform] after the location adjustment to
ensure the model(s) be within the build area and on the build platform. If a specified
position is needed, only click [On Platform].
