Y Axis Calibration

Y-axis calibration: Used to adjust the consistency of the two extruders in the Y-axis
direction to prevent misalignment during printing.
X
Calibration Calibration
Expert
Mode

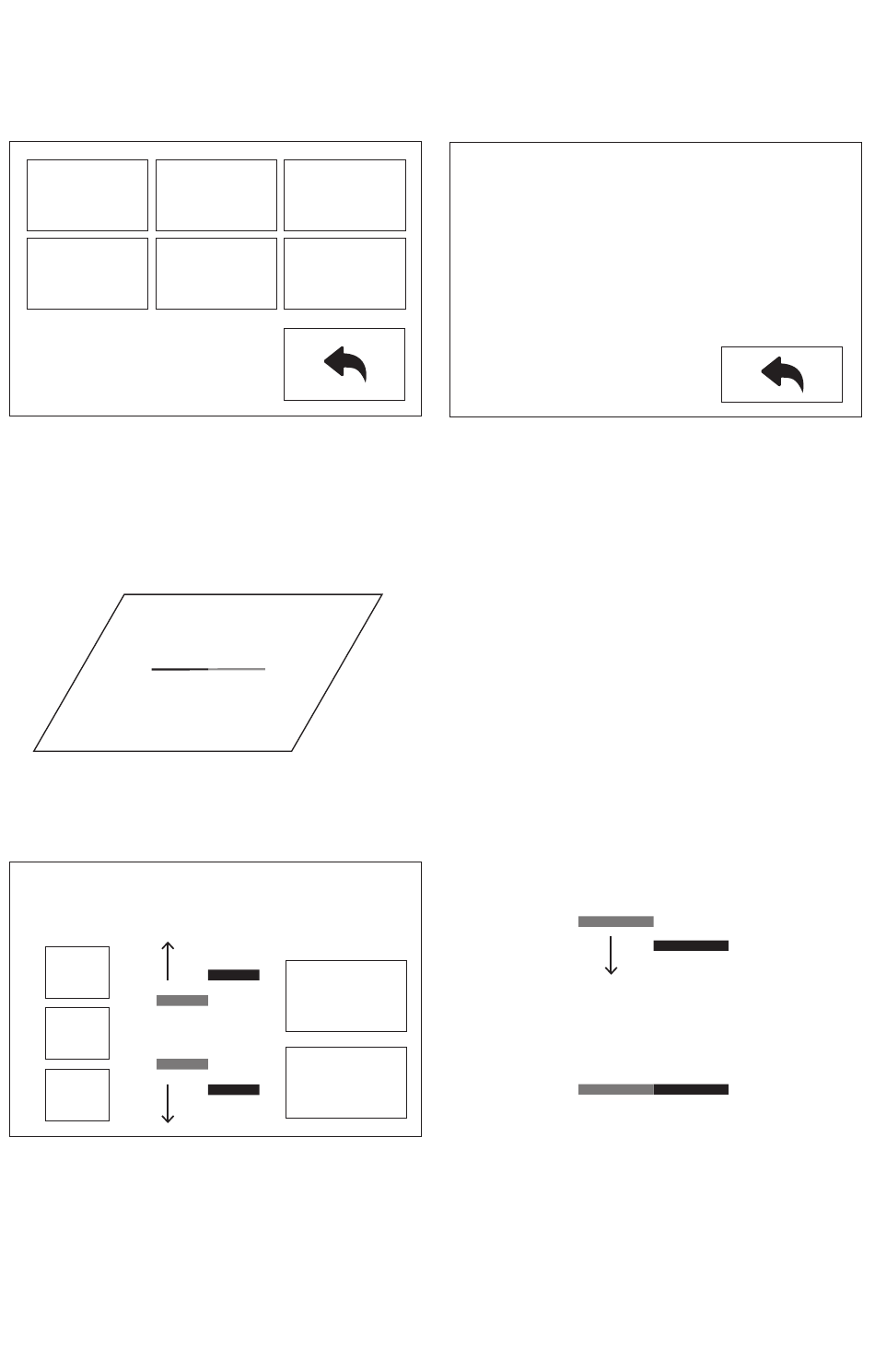

1. Tap [Setting]-[Y Calibration], or continue the Y-axis calibration after the X-axis calibra-
tion is completed. After the machine initialization movement is completed, the nozzle
and the platform will be heated. At this time, please ensure that the filament has been
inserted into the extruder.
2. After heating, left and right extruders print a line one by one.
Please tap Y-，Y+ to adjust and verify make
sure the lines are aligned.
Y+
0.00
Y-
3. According to the actual printed lines, click Y-, Y + to adjust the bias of the extruders and
remove the printed lines; tap the verify button, the left and right extruders will print the
lines again to see if the lines coincide, if they coincide, it means that the Y-axis
calibration is completed, if they are inconsistent, continue to adjust, until it coincides.
Y Z
Calibration
Language FactoryReset
R
Y+
Verify
L
L
OK
Y-
R

Y Calibration

18
L: 152/200
R: 164/200
B: 45/50
L
R
Y-
R
L
