Code : SEA404

ASSEMBLY MANUAL

Speciications:

Wingspan ----------------- 160 cm--------------------------- 63 inches.

Length --------------------- 134.4 cm------------------------ 53.3 inches

Wing area------------------ 49 sq.dm------------------------ 760.1 sq.in.

Weight---------------------- 4.0 kg---------------------------- 8.8 lbs.

Engine---------------------- 15 - 20cc.

Radio------------------------ 5 channels 6 servos.

Motor 110/2000watt/ ESC 85A-100A/ Lipo 6s-8s.

Need help?

Do you have a question about the Oracle Turbo Raven and is the answer not in the manual?

Questions and answers

Summary of Contents for Seagull Models Oracle Turbo Raven

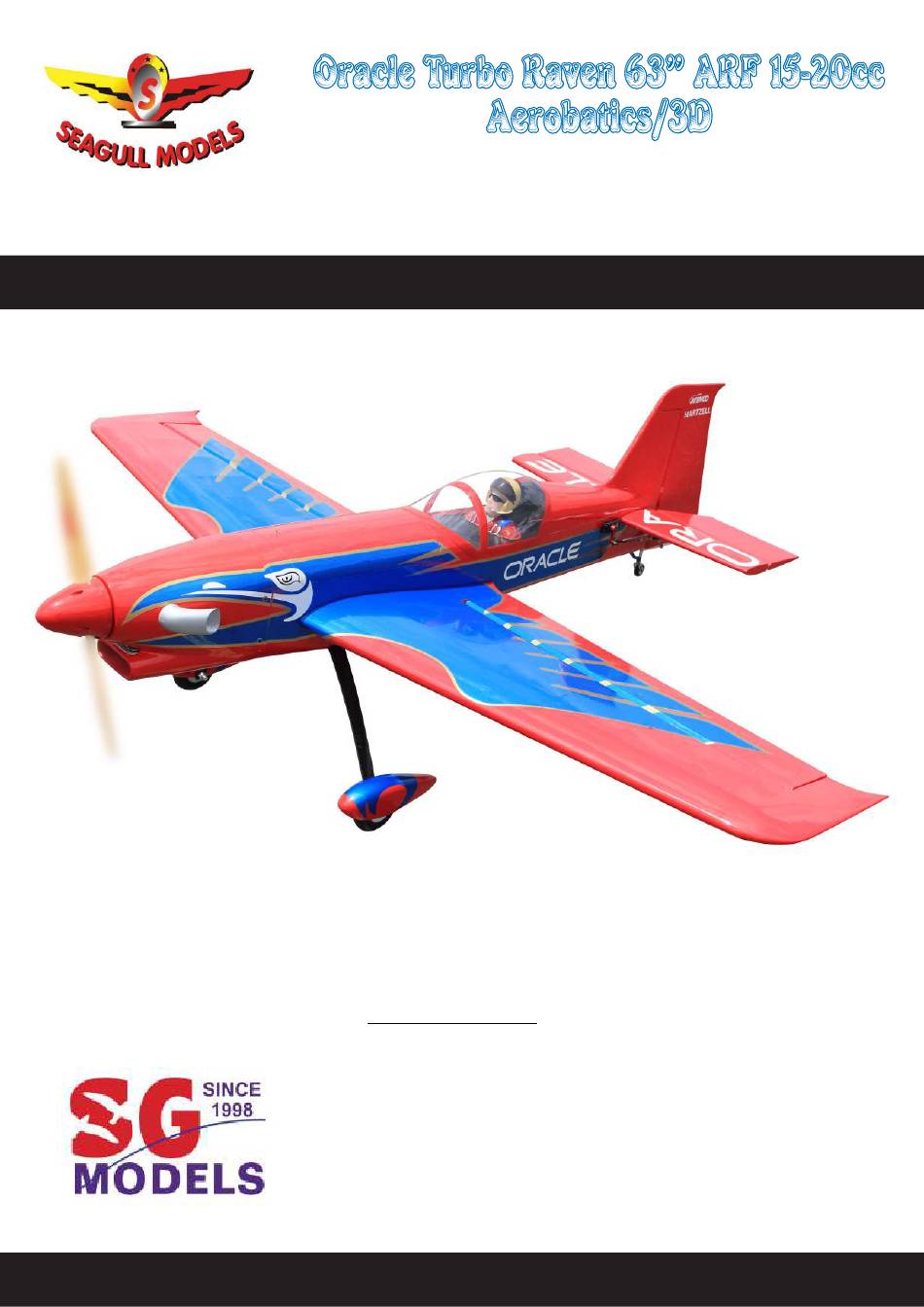

Page 1 Code : SEA404 ASSEMBLY MANUAL Speciications: Wingspan ----------------- 160 cm--------------------------- 63 inches. Length --------------------- 134.4 cm------------------------ 53.3 inches Wing area------------------ 49 sq.dm------------------------ 760.1 sq.in. Weight---------------------- 4.0 kg---------------------------- 8.8 lbs. Engine---------------------- 15 - 20cc. Radio------------------------ 5 channels 6 servos. Motor 110/2000watt/ ESC 85A-100A/ Lipo 6s-8s.
Page 2 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. INTRODUCTION Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D hank you for choosing the Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D ARTF by SG MODELS. he was designed with the intermediate/advanced sport lyer in mind. It is a semi scale airplane which is easy to ly and quick to assemble.
Page 3 KIT CONTENTS HINGING THE AILERON SEA404 Oracle Turbo Raven 63” Note : he control surfaces, including the ailer- ons, elevators, and rudder, are prehinged with ARF 15-20cc Aerobatics/3D hinges installed, but the hinges are not glued in place. It is imperative that you properly adhere 1.
Page 4 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. Delect the aileron and completely saturate each hinge with thin C/A glue. he ailerons front surface should lightly contact the wing during this procedure. Ideally, when the hinges are glued in place, a 1/64” gap or less will be maintained throughout the lengh of the aileron to the wing panel hinge line.
Page 5 Place low-tack tape 1/32 inch (1mm) INSTALL THE AILERONS from the control horn slot. his will pre- CONTROL HORN vent epoxy from getting on the control surface when the control horns are glued Locate the aileron control horns. he taller in place.
Page 6 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. Before the epoxy fully cures, remove Maximum Servo spec. the tape from around the control horn. Torque : 102 oz-in (7.3 kg-cm) @ 6.0V; his will allow the epoxy to low around 160 oz-in (11.5 kg-cm) @ 8.4V;...
Page 7 Tape the servo lead to the wing to pre- vent it from falling back into the wing. 38mm Reinstall the servo into the servo mount and secure the servo inplace using the wood screws provided with you radio system. Repeat the procedure for the other wing half.
Page 8 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. INSTALLING THE AILERON PUSHROD Please study images below. 80mm Repeat all the above steps for the other wing. INSTALL HINGE FOR STABILIZER AND ELEVATOR Please study images below.
Page 9 INSTALL ELEVATOR CONTROL HORN CA glue Fiberglass control horn...
Page 10 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. Epoxy Epoxy...
Page 11 38mm Maximum Servo spec. Torque : 102 oz-in (7.3 kg-cm) @ 6.0V; 160 oz-in (11.5 kg-cm) @ 8.4V;...
Page 12 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. INSTALL HINGE FOR RUDDER AND INSTALL RUDDER CONTROL HORN Please study images below. Please study images below. 10mm Fiberglass control horn Epoxy Epoxy...
Page 13 HORIZONTAL TAIL INSTALLATION Please study images below. Epoxy...
Page 14 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. ELEVATOR PUSHROD INSTALLATION Please study images below. 130mm INSTALL RUDDER CABLE AND SERVO NOTE : servos arm is not provided from manufacturer.
Page 15 Tape the rudder balance tab to the top leading edge of the vertical in in the neutral position as shown. his ensures the rudder is straight when the cables are attached. hread the rudder cable through a brass swage tube, then the threaded co pler, and back through the brass swage tube on both sides.
Page 16 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. Feed one rudder cable through the pre installed cable exit tube in the rear of the fuse toward the front of the fuse. Repeat for other side. Cut of excess cable as shown.
Page 17 Crimp the brass swage tube with a TAILWHEEL INSTALLATION crimping tool or pliers. Locate items necessary to install tailwheel. Cut of excess cable as shown.
Page 18 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. Epoxy Epoxy 3x15mm...
Page 19 INSTALLING THE MAIN LANDING GEAR TO FUSELAGE Please study images below. M3x4mm...
Page 20 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. M3x4mm...
Page 21 M3x10mm Loctite M3x10mm M4x20mm...
Page 22 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. INSTALLING THE RECEIVER SWITCH Loctite Install the switch into the precut hole in the side, in the fuselage. M4x20mm Trim and cut Switch INSTALLING THE ENGINE SWITCH Trim and cut...
Page 23 Switch FUEL TANK INSTALLATION You should mark which tube is the vent and which is the fuel pickup when you attach fuel tubing to the tubes in the stopper. Once the tank is installed inside the fuselage, it may be diicult to determine which is which. Slide the fuel tank into the fuselage.
Page 24 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. MOUNTING THE ENGINE ENGINE MOUNT INSTALLATION Position the engine with the drive washer Locate the items necessary to install the (145mm) forward of the iewall as shown. engine mount included with your model.
Page 25 he ire wall has the location for the THROTTLE SERVO INSTALLATION throttle pushrod tube (pre-drill). Slide the pushrod tube in the irewall and guide it through the fuel tank mount. Use medium C/A to glue the tube to the irewall and the fuel tank mount. Connect the Z-bend in the 450mm throttle pushrod to the outer hole of the carburetor arm.
Page 26 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. Move the throttle stick to the closed po- Connect ignition module to pickup line of engine. Secure with Safety Clip, safety sition and move the carburetor to closed. wire, tape or other method. Ensure the plugs Use a 2.5mm hex wrench to tighten the...
Page 27 COWLING Please study images below. Use a drill and drill bit to drill the holes for the cowl mounting screws. Make sure the cowl position is correct before drilling each hole. Tape the cowl to the fuselage using low-tack tape.
Page 28 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. Install the muler and muler extension onto the engine and make the cutout in the cowl for muler clearance. Connect the fuel and pressure lines to the carburetor, muler and fuel iler valve. Secure the cowl to fuselage using the M3x12mm socket head screws.Putting a small length of silicon fuel...
Page 29 5.5mm hen, use 5.5mm drill bit to enlarge the holes on the electric motor box. M4x25mm and washers Attach the motor mount to the front of the electric motor box using four 4mm blind nut, four M4x25mm hex head bolts to se- cure the motor.
Page 30 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. Attach the speed control to the side of the motor box using two-sided tape and tie wraps. Connect the appropriate leads M4x20mm from the speed control to the motor. Make sure the leads will not interfere with the operation of the motor.
Page 31 INSTALLING THE SPINNER Install the spinner backplate, propeller and spinner cone. he propeller should not touch any part of the spinner cone. If it does, use a sharp modeling knife and carefully trim Epoxy away the spinner cone where the propel- ler comes in contact with it.
Page 32 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. ATTACHMENT WING - FUSELAGE Attach the aluminium tube into fuselage. Epoxy Wing tube INSTALLING THE BATTERY-RECEVER Plug the servos leads and the switch lead into the receiver. Plug the battery pack lead into the switch also.
Page 33 *If possible, irst attempt to balance the APPLY THE DECALS model by changing the position of the re- ceiver battery and receiver. If you are un- 1) If all the decals are precut and ready to able to obtain good balance by doing so, stick.
Page 34 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. 60-100mm 60-100mm 70-120mm Fuselage 70-120mm 40-80mm Wing 40-80mm...
Page 35 If it does not, lip the servo reversing excessive vibration which could lead switch on your transmitter to change to engine and/or airframe failure. the direction. We wish you many safe and enjoyable lights with your Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D.
Page 36 Oracle Turbo Raven 63” ARF 15-20cc Aerobatics/3D Instruction Manual. If you have any queries, or are interested in our products, please feel free to contact us Factory : 12/101A - Hamlet 4 - Le Van Khuong Street - Dong hanh Ward - Hoc Mon District - Ho Chi Minh City - Viet Nam.
