WIRING PROCEDURE

For systems using conduit, modules must be wired
using a short piece of suitable flexible conduit to allow
optical alignment of the modules. Conductor insulation
should be stripped off with a bare conductor length
of 0.2 inch (5 mm) minimum and 0.7 inch (18 mm)
maximum). Open Path Eclipse screw terminal torque
range is 3.5–4.4 lb.-in. (0.4–0.5 N·m).
Cable shield, if used, should be properly terminated. If
not terminated, clip the shield wire off short and insulate
it within the detector housing to prevent the shield wire
from accidentally contacting the detector housing or
any other wire.
Figure 8 shows the wiring terminal strip located inside
the detector's integral junction box.
Figure 9 shows the wiring terminal configuration for
the OPECL transmitter. (The transmitter requires only
operating power.)
Figure 10 shows the wiring terminal configuration for the
OPECL receiver without relays.
Figure 11 shows the wiring terminal configuration for the
OPECL receiver with relays.
Figures 12 through 15 show the 4 to 20 mA output of the
OPECL receiver in various wiring schemes.
Figure 16 shows the wiring terminal configuration for the
EQP OPECL.
The OPECL housing must be electrically
connected to earth ground. A dedicated earth
ground lug is provided for this purpose.
For proper HART communication, it is required
that an analog signal loop resistance of 250 to 500
ohms be present at the receiver analog output
terminals. See Figure 17 for benchtop test wiring.
For OPECL systems using HART communication,
the maximum wiring distance is 2,000 feet.

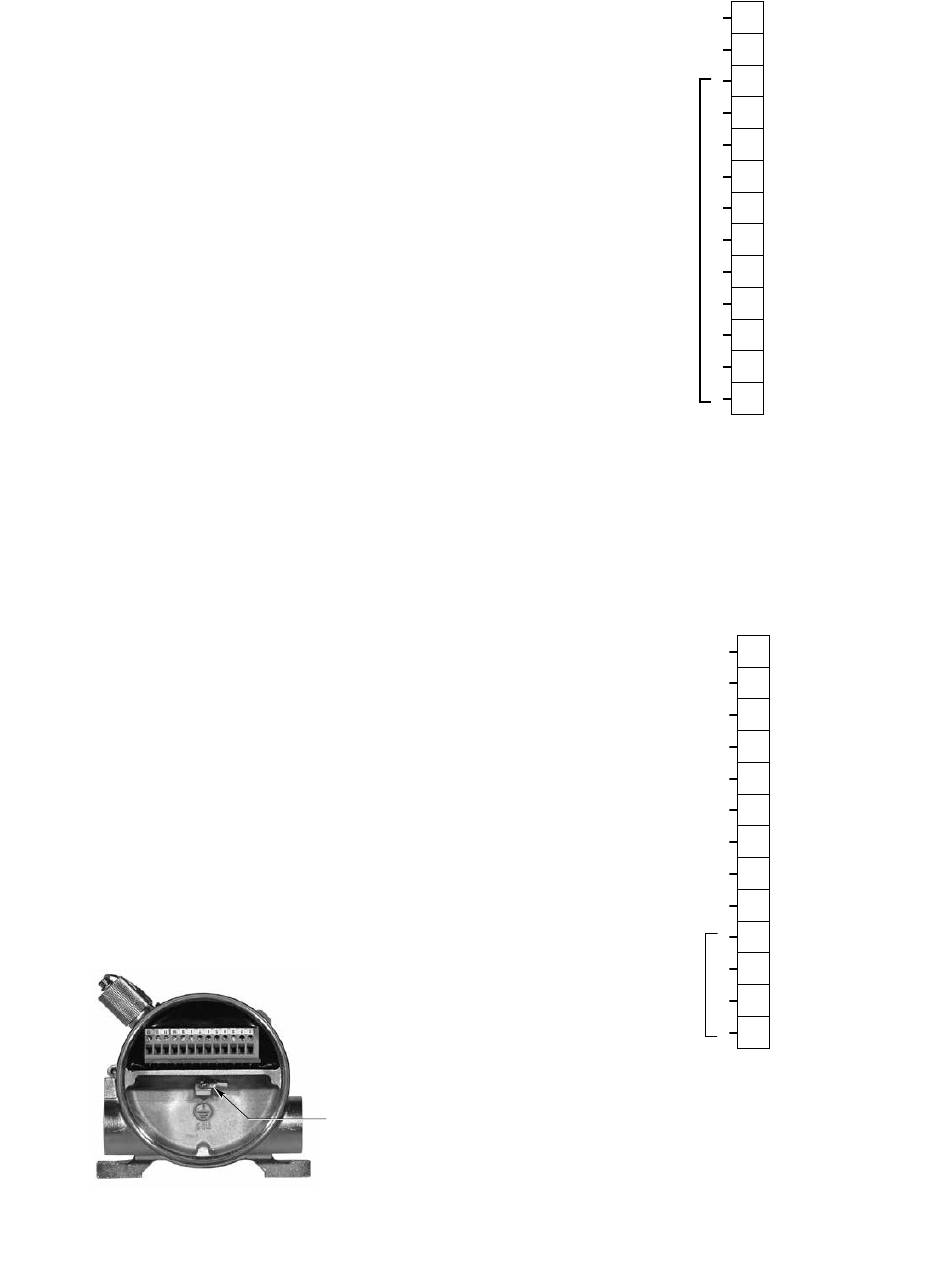

Figure 8—Terminal Strip Located Inside Wiring Compartment
11.3
NOTE
NOTE
EARTH GND LUG
A2084
NO USER CONNECTION
Figure 9—Transmitter Wiring Terminal Identification
NO USER CONNECTION
Figure 10—Wiring Terminal Identification for OPECL Receiver
14
1
–24 VDC
2
+24 VDC
3
4
5
6
7
8
9
10
11
12
13
A2197
1
–24 VDC
2
+24 VDC
3
CALIBRATE
4
–24 VDC
5
+24 VDC
6
+ 4-20 MA
7
– 4-20 MA
8
RS-485 B
9
RS-485 A
10
11
12
13
A2196
without Relays
