Det-Tronics Open Path Eclipse Instructions Manual page 20

VERTICAL ADJUSTMENT
BOLTS WITH LOCKING NUTS (2)
VERTICAL ALIGNMENT LOCKING NUTS (2)
HORIZONTAL ADJUSTMENT
BOLTS WITH LOCKING NUTS (2)
6. Install the Telescope Alignment Tool onto
the receiver module by inserting the captive
thumbscrews into the threaded holes on the
faceplate. See Figure 19. Ensure that the telescope
is properly attached, that the eyepiece is accessible,
and that the thumbscrews are completely tightened.
TELESCOPE ALIGNMENT SCREW
(VERTICAL)
TELESCOPE ALIGNMENT SCREW
(HORIZONTAL)
TELESCOPE ALIGNMENT TOOL

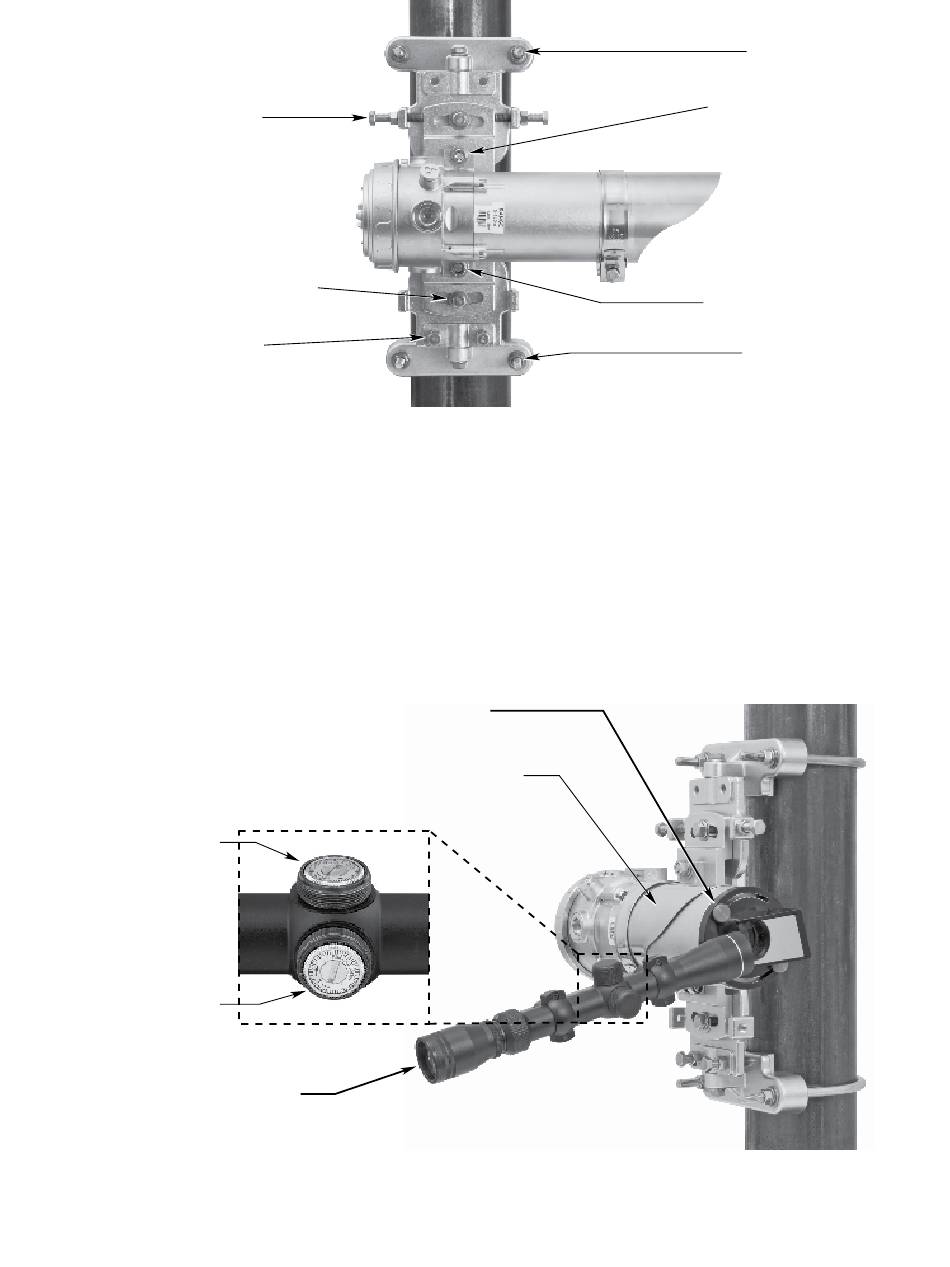

Figure 19— OPECL with Telescope Alignment Tool Installed (Transmitter Module Shown)
11.3
Figure 18—OPECL Mounting and Alignment Hardware (Transmitter Module Shown)
CAPTIVE SCREWS (2)
TEMPORARILY SLIDE BROW TOWARD
BACK OF MODULE HOUSING
B2302
7. Slowly adjust the receiver module up/down as
required using the vertical adjustment bolts until
the telescope cross hairs are centered as close
as possible to dead center on the window of the
transmitter module. Tighten the vertical alignment
locking nuts so that no movement will occur.
18
U-BOLT NUTS (2)*
OPECL MOUNTING BOLT*
OPECL MOUNTING BOLT*
U-BOLT NUTS (2)*
*TORQUE TO 20 FT-LBS
D2303
95-8556
