Instructions

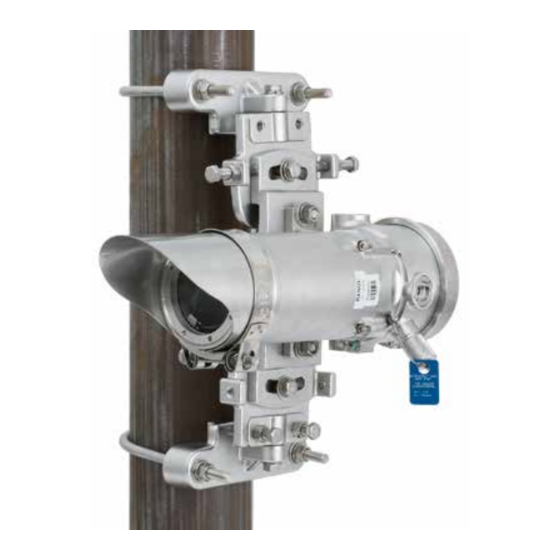

Infrared Hydrocarbon Gas Detector
Open Path Eclipse
Model OPECL
11.3
Rev: 6/17
95-8556

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Open Path Eclipse and is the answer not in the manual?

Questions and answers

Related Manuals for Det-Tronics Open Path Eclipse

Summary of Contents for Det-Tronics Open Path Eclipse

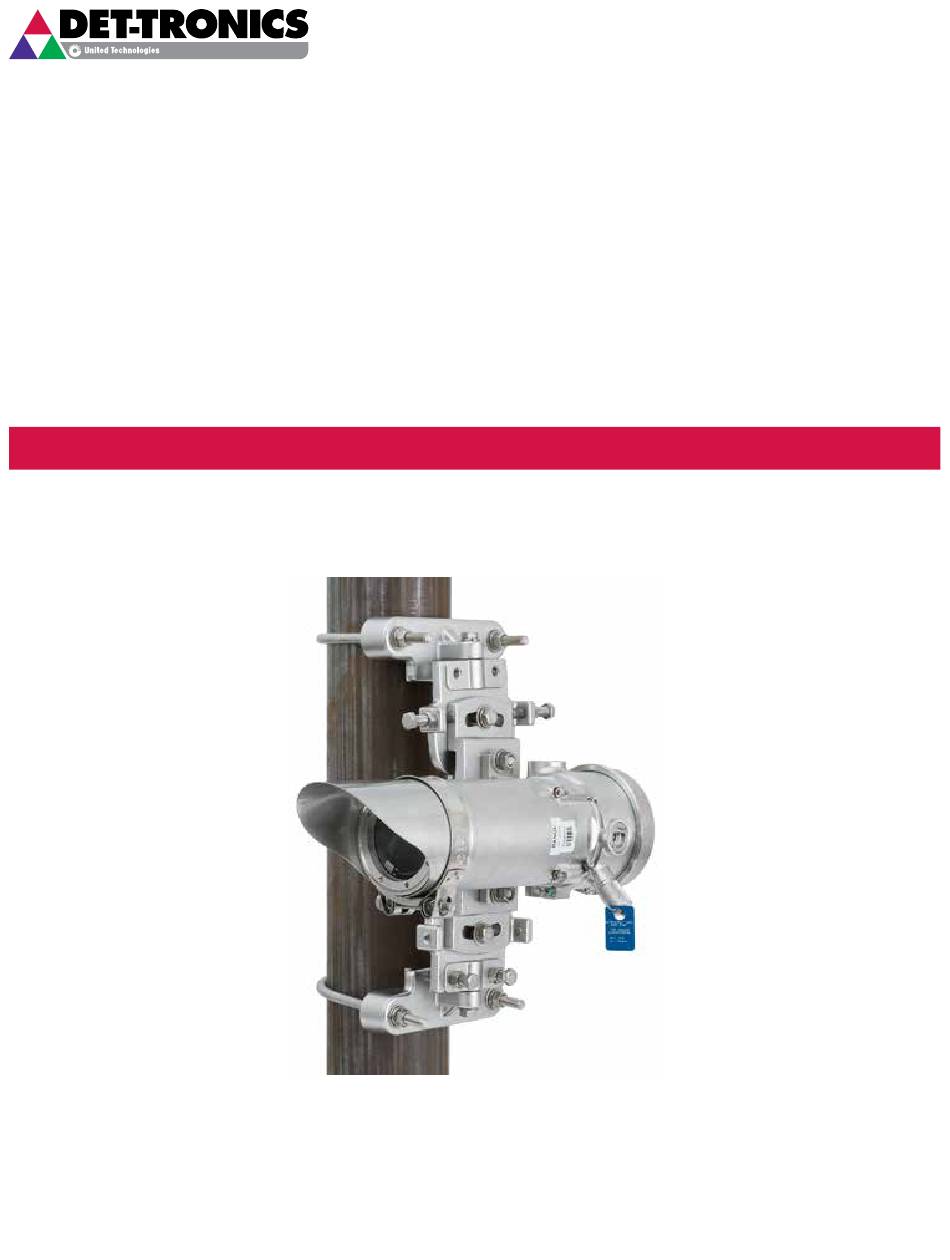

  • Page 1 Instructions Infrared Hydrocarbon Gas Detector Open Path Eclipse Model OPECL 11.3 Rev: 6/17 95-8556...

  • Page 2: Table Of Contents

    Table of Contents APPLICATION ............1 CALIBRATION ............23 Calibration Overview ..........23 OPERATION OVERVIEW ...........2 Important Calibration Notes .......23 Theory of Operation ..........2 Calibration Initiation ..........23 Detectable Gases ..........2 Detailed Calibration Procedure using Standard Output ...........2 Magnetic Switch ..........23 Optional Relays ............2 MAINTENANCE ............23 Communication ............3 Recording Capability ..........3...

  • Page 3: Application

    Both modules are powered from an external 24 volt DC supply. The receiver provides the The Open Path Eclipse is ideal for use in harsh outdoor measurement signal outputs, and is furnished with environments and is certified explosion-proof for use in an onboard "status indication"...

  • Page 4: Operation Overview

    OPERATION OVERVIEW DETECTABLE GASES OPECL is capable of detecting most hydrocarbon THEORY OF OPERATION gases and vapors including methane, ethane, propane, butane, and propylene. Gas type and other operational The OPECL transmitter module illuminates a direct parameters are selected via digital communications. linear path ending at the OPECL receiver module.

  • Page 5: Communication

    OPERATION COMMUNICATION The standard OPECL system provides an analog 4-20 MODULE IDENTIFICATION mA signal output, with HART and RS-485 MODBUS serial communication from the receiver module. EQP Models While the OPECL transmitter and receiver modules communicate with the EQP controller over the LON. appear physically identical, each module is labeled as “transmitter”...

  • Page 6: Operating Modes

    Table 2—Factory Default Settings Default Configurable Options PLACE CALIBRATION MAGNET HERE TO ACTIVATE INTERNAL Gas Type Methane Ethane, Propane REED SWITCH Butane, Propylene Special Measurement Range 0-2, 0-5 (LFL-M) B2349 Low Alarm Threshold 0.25 to 3 (LFL-M) Figure 2—Location of Receiver's Internal Magnetic Switch High Alarm Threshold 1 to 3 (LFL-M)

  • Page 7: Fault Indication

    FAULT INDICATION TRANSMITTER LAMP OPERATION Faults and status conditions are indicated using the 4-20 Dual xenon lamps illuminate the linear detection path mA analog signal output. Refer to Table 3. Signaling from the transmitter to the receiver. Should excessive modes include two predefined and one user defined degradation of the light intensity occur, the transmitter mode.

  • Page 8: Specifications

    SPECIFICATIONS CAUTION When the OPECL Gas Detector is used in INPUT VOLTAGE (Both Modules)— conjunction with an appropriate certified Control 24 Vdc nominal. Operating range is 18 to 30 Vdc. Unit and configured for a non‑latching high alarm, Ripple cannot exceed 0.5 volts P-P. the control unit must always latch and require a deliberate manual action to clear a high gas alarm.
  • Page 9 ACCURACY— HART COMMUNICATION PORT— Refer to the appropriate Appendix for details. An intrinsically safe port is provided on the receiver for connecting a Rosemount/Emerson HART Communicator. NOTE • Maximum separation distance between receiver and Misalignment will cause the manufacturer stated communicator is 610 meters.
  • Page 10 DIMENSIONS— SHIPPING WEIGHT— Transmitter or receiver (replacement): Module 30 pounds (14 kg) Length: 11.5 inches (29 cm) Transmitter and receiver with mounting hardware: Diameter: 3.5 inches (9 cm) nominal 75 pounds (34 kg) 4.5 inches (11 cm) maximum WARRANTY— Mounting Plate 2 year limited warranty from date of manufacture.

  • Page 11: Important Safety Notes

    NOTE Det-Tronics Field Service Engineering group routinely The Open Path Eclipse is intended for detection provides jobsite application surveys and analysis for of hydrocarbon vapors only. The device will not customers, and their services are highly recommended detect hydrogen gas.
  • Page 12 Consideration of the following system location guidelines Snow and Ice in Ambients Below –20°C is also recommended: The heated optics on both modules will melt snow or ice on the windows in ambient temperatures down to approximately –20°C. Below this temperature, LED Visibility snow or ice blown onto the window will not be melted Select a mounting orientation where the Open Path...

  • Page 13: Module Mounting Recommendations

    MODULE MOUNTING RECOMMENDATIONS IMPORTANT In all cases, consider whether additional bracing OPECL modules must be affixed to a solid, non-vibrating or support is needed to ensure the structural structure capable of supporting a minimum of 100 lbs (46 integrity of the module installation. See Figure kg), located within the system’s rated separation distance.

  • Page 14: 24 Vdc Power Supply Requirements

    Mounting Sequence IMPORTANT Devices certified for hazardous locations shall be 1. Attach the OPECL module to the pan-tilt mounting installed in accordance with EN/IEC 60079‑14 and plate and tighten the OPECL mounting bolts to 20 NEC 505. lb.-ft. minimum. 2. Install the lower mounting bracket. WIRING CABLE REQUIREMENTS 3.

  • Page 15: Power Wiring Size And Maximum Length

    In order to change alarm relay settings from the factory default settings, it is recommended to utilize a HART 3. Normally, nothing smaller than 18 AWG (1.0 mm Field Communicator. Contact the factory for further is recommended by Det-Tronics for OPECL power assistance. cabling. NOTE Wire size requirements are dependent upon power Refer to “Alarm Relays”...

  • Page 16: Wiring Procedure

    0.2 inch (5 mm) minimum and 0.7 inch (18 mm) maximum). Open Path Eclipse screw terminal torque range is 3.5–4.4 lb.-in. (0.4–0.5 N·m). Cable shield, if used, should be properly terminated. If...
  • Page 17 24 VDC –24 VDC – +24 VDC CALIBRATE –24 VDC –24 VDC +24 VDC CALIBRATE +24 VDC –24 VDC 4 to 20 MA + 4-20 MA +24 VDC – 4-20 MA – + 4-20 MA RS-485 B – 4-20 MA RS-485 A RS-485 B RS-485 A...
  • Page 18 24 VDC 24 VDC – – –24 VDC –24 VDC +24 VDC +24 VDC CALIBRATE CALIBRATE 4 to 20 MA 24 VDC –24 VDC –24 VDC +24 VDC – +24 VDC – + 4-20 MA + 4-20 MA 4 to 20 MA –...

  • Page 19: Startup

    STARTUP BASIC ALIGNMENT PROCEDURE When the OPECL is installed and wired as described in Equipment Required the “Installation” section, it is ready for commissioning. 1. Properly installed and powered OPECL system If the application requires that specific changes be (transmitter and receiver). Easy access to both made to the factory settings, HART communication will modules is highly recommended.
  • Page 20 U-BOLT NUTS (2)* VERTICAL ADJUSTMENT OPECL MOUNTING BOLT* BOLTS WITH LOCKING NUTS (2) VERTICAL ALIGNMENT LOCKING NUTS (2) OPECL MOUNTING BOLT* HORIZONTAL ADJUSTMENT BOLTS WITH LOCKING NUTS (2) U-BOLT NUTS (2)* *TORQUE TO 20 FT-LBS B2302 Figure 18—OPECL Mounting and Alignment Hardware (Transmitter Module Shown) 6.
  • Page 21 STEP 1: CENTER CROSS HAIRS ON TARGET USING ADJUSTMENT BOLTS ON MOUNTING PLATE (POSITION A). STEP 2: ROTATE SCOPE 180°. ALIGNMENT ERROR CAUSES CROSS HAIRS TO MOVE TO POSITION B. STEP 3: ADJUST ALIGNMENT SCREWS ON SCOPE TO PLACE CROSS HAIRS AT POSITION C. STEP 4: ROTATE SCOPE 180°...

  • Page 22: Aperture Kit For Short Range Applications

    APERTURE KIT FOR SHORT RANGE APPLICATIONS RECOMMENDATIONS FOR USING THE HART FIELD COMMUNICATOR The Short Range Aperture Kit enables successful application of the OPECL gas detector at distances • Ensure that the HART communicator is certified for of approximately 5 to 30 meters. The kit is available use in classified areas.
  • Page 23 NOTE BEAM BLOCK TOP If a HART handheld communicator is not available, the alignment procedure can be performed in a limited way by monitoring the 4‑20 mA output. (This method is only partially effective due to the deadband built into the 4‑20 mA output.) If the partial beam blocks result in output deflection If this block causes Absorption to increase greater than 4.00 mA +/‑...

  • Page 24: Gain Level Check

    3. From the Root menu, select the Status Menu If this situation occurs, a ratio of over 1.0 will be (selection #2). realized. Det-Tronics recommends eliminating any condition that causes a receiver to display a ratio of 4. From the Status Menu, select the Sensor Information over 1.0.

  • Page 25: Calibration

    Refer to the Model OPECL Safety Manual (number 95‑8665) for specific requirements Calibration Using Magnetic Switch and recommendations applicable to the proper The Open Path Eclipse receiver provides an onboard installation, operation, and maintenance of all magnetic calibration/reset switch for non-intrusive SIL‑Certified OPECL IR gas detectors.

  • Page 26: Optics Cleaning

    A Fault status is indicated by a yellow LED and also by required only if an optical fault is indicated. the 4 to 20 mA output. Refer to Table 5 for assistance in correcting malfunctions with the Open Path Eclipse Thoroughly douse both window surfaces using a liberal Detector.

  • Page 27: Replacing Opecl Transmitter/ Receiver Electronics Module

    REPLACING OPECL TRANSMITTER/ MODULE REPLACEMENT PROCEDURE RECEIVER ELECTRONICS MODULE Tools Required: – 4 mm hex wrench WARNING – Torque wrench capable of accurately measuring 40 Do not open when an explosive gas atmosphere inch-pounds may be present. 1. Bypass system alarms as needed, then remove 24 CAUTION Vdc power from the OPECL detector.

  • Page 28: Device Repair And Return

    DEVICE REPAIR AND RETURN 6. Insert and tighten the four flange bolts in an The Open Path Eclipse IR Hydrocarbon Gas Detector opposing consecutive order in two stages — first is not designed to be repaired in the field. If a problem...

  • Page 29: Ordering Information

    High Range OPECL Gas Test Cell Detector Electronics Corporation *includes OPECL config software 6901 West 110th Street Minneapolis, Minnesota 55438 USA Operator: (952) 941-5665 or (800) 765-FIRE Customer Service: (952) 946-6491 Fax: (952) 829-8750 Web site: www.det-tronics.com E-mail: det-tronics@det-tronics.com 11.3 95-8556...
  • Page 30 OPECL MODEL MATRIX MODEL DESCRIPTION Open Path Eclipse Infrared Gas Detector OPECL TYPE MATERIAL Stainless Steel TYPE CONDUIT ENTRY THREAD TYPE 2 Port, Metric M25 2 Port, 3/4" NPT TYPE OUTPUT None (Transmitter only) Eagle Quantum Premier (EQP) (Receiver or Kit) 4-20 mA, RS485, HART (Receiver or Kit) 4-20 mA, RS485, HART w/Optional Relay Board (Receiver or Kit) –...

  • Page 31: Appendix A - Fm Approval Description

    The following items, functions and options describe the FM approval. APPROVAL Open Path Eclipse Infrared Hydrocarbon Gas Detector, Model OPECL Series. Class I, Div. 1, Groups B, C & D (T5) with intrinsically safe output for HART communication in accordance with control drawing 007722-001 (see Appendix G).

  • Page 32: Appendix B - Csa Certification Description

    The following items, functions and options describe the CSA approval. APPROVAL Open Path Eclipse Infrared Hydrocarbon Gas Detector, Model OPECL Series. Class I, Div. 1, Groups B, C & D (T5) with intrinsically safe output for HART communication in accordance with control drawing 007722-001 (see Appendix G).

  • Page 33: Appendix C - Atex Approval Description

    APPENDIX C ATEX APPROVAL DESCRIPTION (Not CE Compliant) The following items, functions and options describe the ATEX approval. APPROVAL Open Path Eclipse Infrared Hydrocarbon Gas Detector, Model OPECL Series. Receiver Transmitter 0539 II 2 G 0539 II 2 G ®...
  • Page 34 ATEX Special Conditions for Safe Use for the [ib] HART communication port only: • The intrinsically safe output on the HART Communicator Port is internally connected to ground and will therefore not withstand a dielectric strength test. • For installations in which both the Ci and Li of the intrinsically safe apparatus exceeds 1% of the Co and Lo parameters of the associated apparatus (excluding the cable), then 50% of Co and Lo parameters are applicable and shall not be exceeded.
  • Page 35 ACCURACY (per EN 60079-29-4) 4-20 mA Model: ±0.25 LFL-meters or ±12.4% of applied gas concentration, whichever is greater, with water vapor @ ≥82°C. LON Model: ±0.25 LFL-meters or ±15.2% of applied gas concentration, whichever is greater, @ –55°C. RESPONSE TIME 4-20 mA Model T50: 1.2 seconds (2.5 LFL-meters applied) T90: 2.5 seconds (2.5 LFL-meters applied).

  • Page 36: Appendix D - Iecex Approval Description

    APPENDIX D IECEx APPROVAL DESCRIPTION The following items, functions and options describe the IECEx approval. APPROVAL Open Path Eclipse Infrared Hydrocarbon Gas Detector, Model OPECL Series. Receiver Transmitter IECEx ULD 05.0001X IECEx ULD 05.0001X Ex db [ib] IIC T5 Gb Ex db IIC T5 Gb T5 (T amb –55°C to +60°C)
  • Page 37 Special Conditions for Safe Use for the [ib] HART communication port only: • The intrinsically safe output on the HART Communicator Port is internally connected to ground and will therefore not withstand a dielectric strength test. • For installations in which both the Ci and Li of the intrinsically safe apparatus exceeds 1% of the Co and Lo parameters of the associated apparatus (excluding the cable), then 50% of Co and Lo parameters are applicable and shall not be exceeded.

  • Page 38: Appendix E - Other Approvals

    APPENDIX E OTHER APPROVALS The following items, functions and options describe various other approvals applicable to the Model OPECL. SIL APPROVAL IEC 61508 Certified SIL 2 Capable. Applies to specific models – refer to the Safety Reference Manual (form 95-8665) for details. INMETRO (Brazil) Certificate No.

  • Page 39: Appendix F - Hart Communication

    APPENDIX F HART COMMUNICATION Digital communication with the Open Path Eclipse is necessary to monitor internal status and to modify the factory settings. This appendix provides guidance on establishing HART communication, and describes the communication menu structure when using the Open Path Eclipse with the HART Handheld Communicator.
  • Page 40 OPEN PATH ECLIPSE HART MENU STRUCTURE This section displays the menu trees for the Open Path Eclipse. The Menu tree shows the primary commands and options available when using menu selections. OPGD RX Root Menu Process Menu 1) Process Menu...
  • Page 41 The HART Communicator can interface with the Open Path Eclipse from the onboard I.S. communication port, from the control room, or from any wiring termination point in the analog output signal loop. To communicate, connect the HART communicator in parallel with the Open Path Eclipse analog signal or load resistor. The connections are non- polarized.

  • Page 42: Appendix G - Control Drawing

    APPENDIX G CONTROL DRAWING 11.3 95-8556...
  • Page 43 EAGLE QUANTUM PREMIER COMPATIBLE OPECL INSTALLATION AND WIRING The Eagle Quantum Premier (EQP) version of the Model OPECL Open Path Eclipse uses the identical installation procedure, device location guidelines, and power supply requirements as described in the “Installation” section of this manual.
  • Page 44 CONFIGURATION AND OPERATION Configuration of the EQP OPECL is accomplished using Det-Tronics Safety System Software (S3) that is running on the EQP Operator Interface Station (OIS). ONBOARD HART PORT The on-board HART port is functional on the EQP OPECL, however, it should not be used for device configuration purposes.
  • Page 45 SETTING NETWORK ADDRESSES Overview of Network Addresses Each OPECL receiver on the EQP LON must be assigned a unique address. (Since transmitters do not reside on the LON, no network address switch setting is needed.) Addresses 1 to 4 are reserved for the EQP controller. Valid addresses for field devices including OPECL gas detectors are from 5 to 250.
  • Page 46 Do not assign duplicated addresses. Duplicated addresses are not automatically detected. Modules given the same address will use the number given and report to the controller using that address. The status word will show the latest update, which could be from any of the reporting modules using that address. After setting address switches, record the address number and device type on the “Address Identification Chart”...
  • Page 47 Switch Access Procedure NOTE It is strongly recommended to document all OPECL gas detector network addresses as well as the addresses of all other LON devices on the Address Identification Chart before disassembling and programming the OPECL gas detectors. Removal of four stainless steel flange bolts and the front electronic module of the OPECL receiver from the bulkhead is required in order to gain access to the network address DIP switch.
  • Page 48 SINGLE SOLENOID DUAL SOLENOIDS CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8 RELAY 1 RELAY 2 RELAY 3 RELAY 4 DIGITAL INPUTS RELAY 5 RELAY 6 RELAY 7 RELAY 8 95-8556 11.3...
  • Page 49 All trademarks are the property of their respective owners. © 2017 Detector Electronics Corporation. All rights reserved. Toll-free: 800.765.3473 6901 West 110 Street Fax: 952.829.8750 Minneapolis, MN 55438 USA Det-Tronics manufacturing system is certified to ISO 9001— the world’s most recognized quality management standard. www.det-tronics.com det-tronics@det-tronics.com...
