No Function
05 Drive configuration
The setting of Pr 05 automatically sets up the drives configuration.
A change to Pr 05 is set by pressing the
NOTE
The drive must be disabled, stopped or tripped for a change to take place. If Pr 05 is
changed while the drive is running, when the
parameter edit mode, Pr 05 will change back to its previous value.
When the setting of Pr 05 is changed, the appropriate drive configuration parameters are
NOTE
set back to their defaut values.
In all of the settings below, the status relay is set up as a drive ok relay:
T5
OK
T6
Configuration
AI.AV
AV.Pr
AI.Pr
Pr
PAd
E.Pot
tor
Pid
HUAC

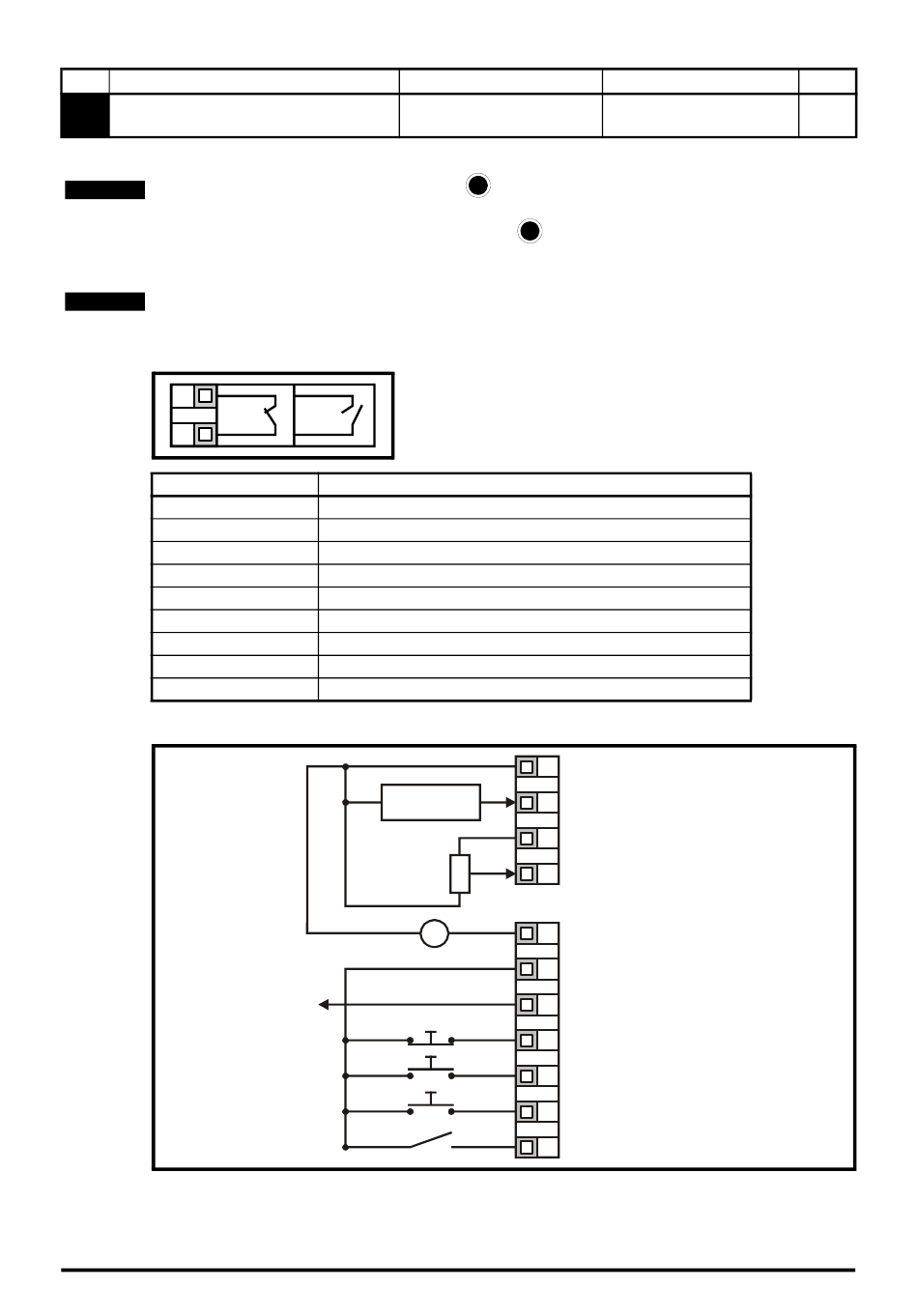

Figure 6-1 Pr 05 = AI.AV (current or voltage input)
Terminal B7 open: Local voltage speed reference (A2) selected
Terminal B7 closed: Remote current speed reference (A1) selected
24
AI.AV, AV.Pr, AI.Pr, Pr, PAd,
E.Pot, tor, Pid, HVAC
M
Fault
Voltage and current input
Voltage input and 3 preset speeds
Current input and 3 preset speeds
4 preset speeds
Keypad control
Electronic motorized potentiometer control
Torque control operation
PID control
Fan and pump control
Remote speed
reference input
10k
(2kmin)
_
+
V
