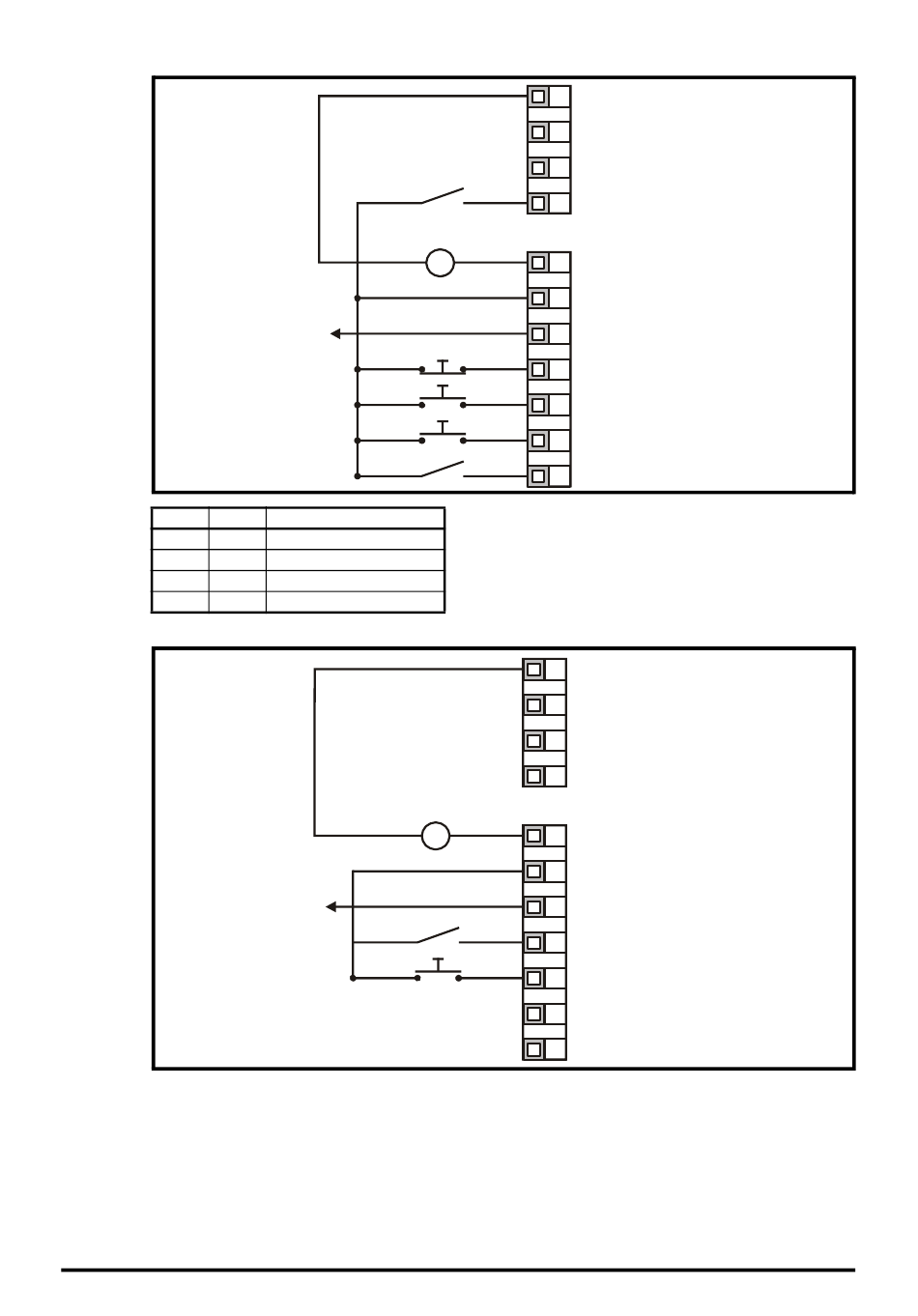

Figure 6-4 Pr 05 = Pr (4 presets)
T4 B7
0 0
0 1
1 0
1 1
Figure 6-5 Pr 05 = PAd (keypad control)
Setting-up a Forward/Reverse terminal in Keypad mode
From the drive's display:
• Set Pr 71 to 8.23
• Set Pr 61 to 6.33
• Press the Stop/Reset key
Terminal B5 will now be set-up as a Forward/Reverse terminal
26
_
+
V
Reference selected
Preset 1
Preset 2
Preset 3
Preset 4
_
+
V
www.johnsoncontrols.com
T1 0V
T2 Not used
T3 +10V reference output
T4 Reference select
Analog output
B1
(motor speed)
B2 +24V output
Digital output
B3
(zero speed)
B4 /Stop
B5 Run
B6 Jog
B7 Reference select
T1 0V
T2 Not used
T3 +10V reference output
T4 Not used
Analog output
B1
(motor speed)
B2 +24V output
Digital output
B3
(zero speed)
B4 Drive Enable/Reset
B5 Forward/Reverse
B6 Not used
B7 Not used
VFD67 Size A to D Getting Started Guide
Issue Number: 1
