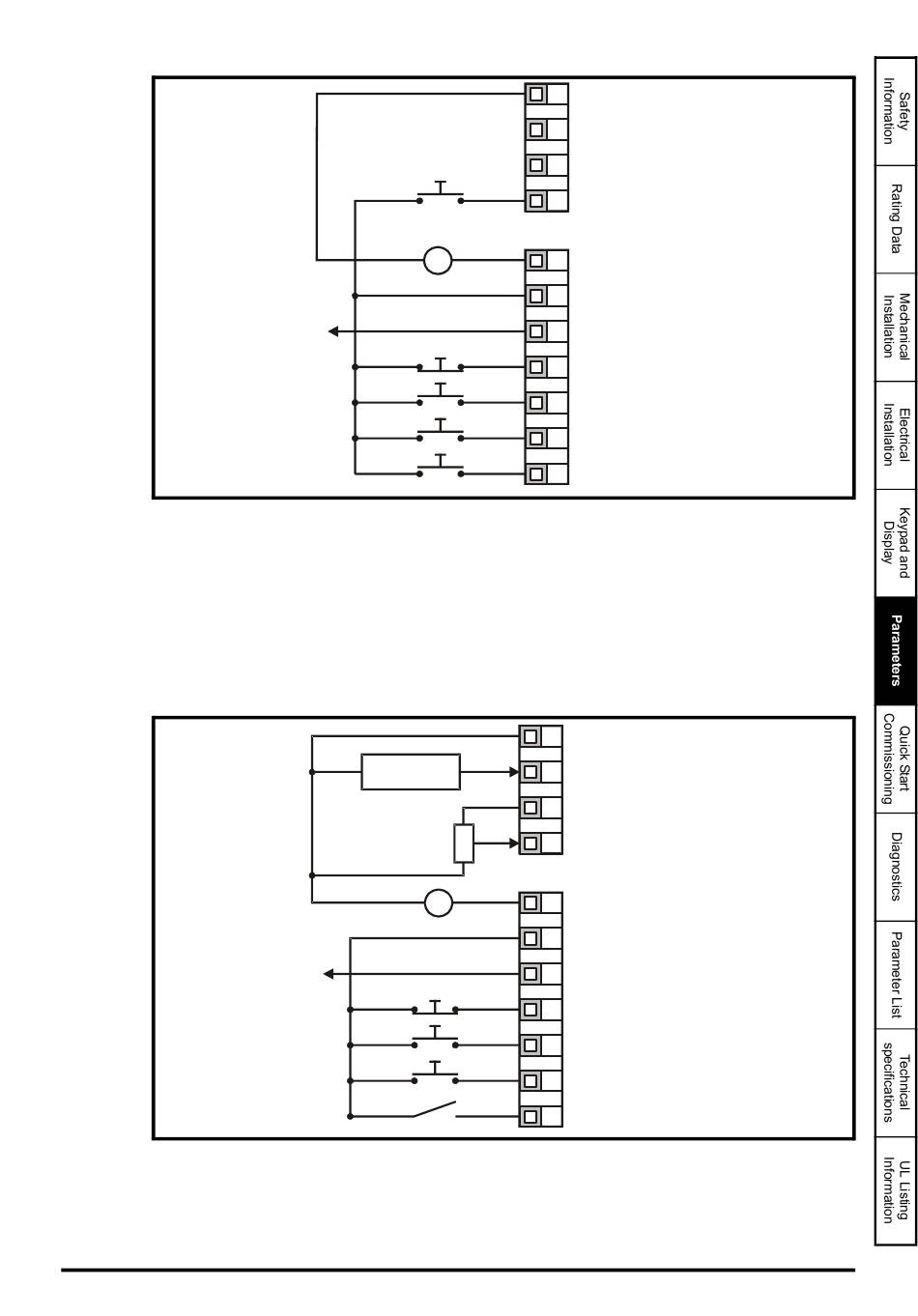

Figure 6-6 Pr 05 = E.Pot (binary control - increase / decrease speed)
When Pr 05 is set to E.Pot, the following parameters are made available for adjustment:
• Pr 61: Motorized pot up/down rate (s/100%)
• Pr 62: Motorized pot bipolar select (0 = unipolar, 1 = bipolar)
• Pr 63: Motorized pot mode: 0 = zero at power-up, 1 = last value at power-up,
2 = zero at power-up and only change when drive is running,
3 = last value at power-up and only change when drive is running.
Figure 6-7 Pr 05 = tor (torque mode)
VFD67 Size A to D Getting Started Guide
Issue Number: 1
_
+
V
Remote speed
reference input
10k
(2kmin)
_
+
V
www.johnsoncontrols.com
T1 0V
T2 Not used
T3 +10V reference output
T4 Down
Analog output
B1
(motor speed)
B2 +24V output
Digital output
B3
(zero speed)
B4 /Stop
B5 Run
B6 Jog
B7 Up
T1 0V
Remote current speed
T2
reference input (A1)
T3 +10V reference output
Torque reference
T4
input (A2)
Analog output
B1
(motor speed)
B2 +24V output
Digital output
B3
(zero speed)
B4 /Stop
B5 Run
B6 Jog
Torque mode
B7
select
