D Diagnostic - Circontrol Wallbox eNext User Manual

Wallbox eNext User Manual
All changes are applied automatically and the
following message will pop up to confirm it.
D
Power relays
Power relays manage the energy that will be supplied to the electric vehicle connected
to the Charge Point. This diagnostic will check the internal circuits to verify that the
power relays work correctly.
Beacons
The LED Beacon indicates the status of the Charge Point in each moment.
This diagnostic will test that all the LED colors work properly. LED beacon will turn
red, green blue and white in this order. The user has to check that all beacon lights
work properly.
26

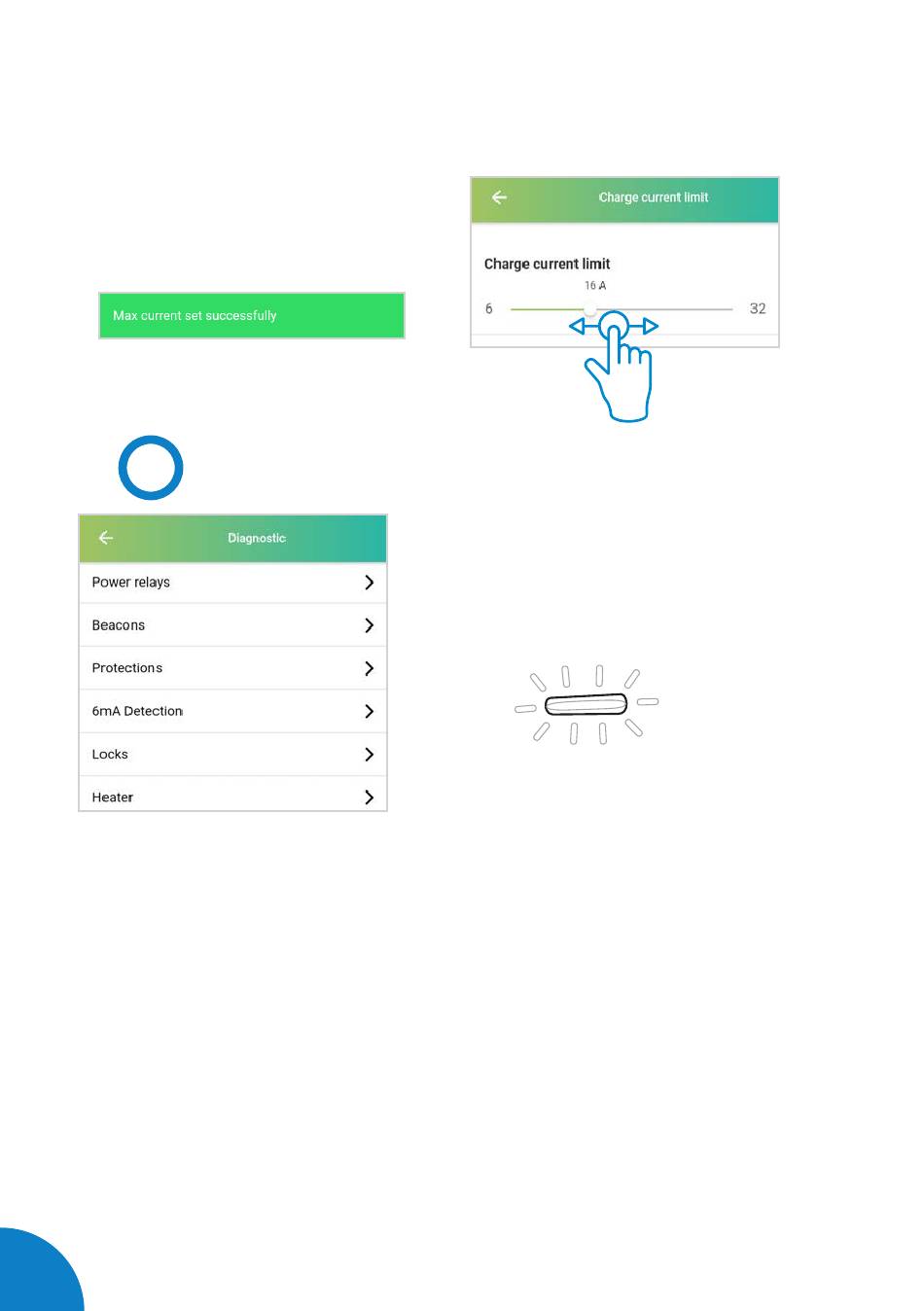

Diagnostic
It is used to check Charge Point internal
devices and diagnose possible errors. The
LED beacon shows a white color during
diagnostic process.
