Wallbox

eNext Series

Installation Manual

Table of Contents

Need help?

Do you have a question about the Wallbox eNext Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Circontrol Wallbox eNext Series

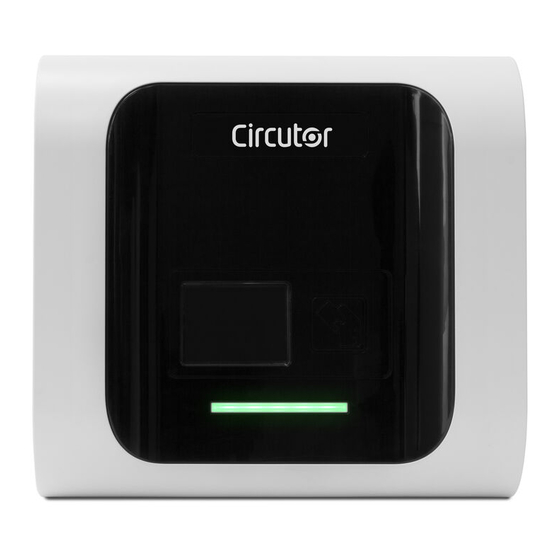

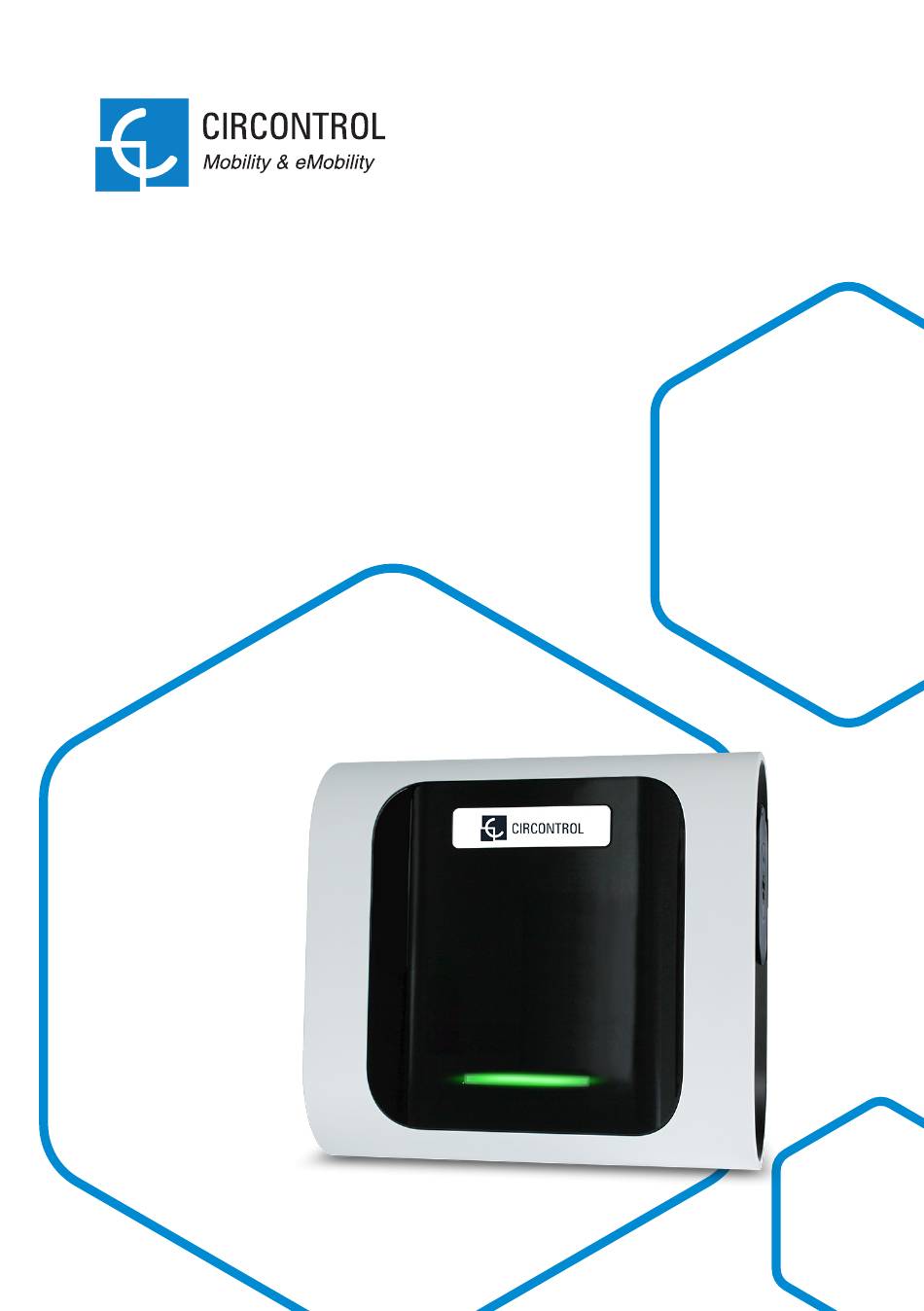

Page 1 Wallbox eNext Series Installation Manual...
Page 2 Wallbox eNext Series Installation Manual...
Page 3 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2019 by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
Page 4 Wallbox eNext Series Installation Manual...
Page 5: Table Of Contents
Here’s your guide to install eNext. 1 — So, hello! 5 — Installation 2 — Before 6 — Technical Data installation 3 — Overview 7 — Need Help? 4 — Dimensions...
Page 6 Wallbox eNext Series Installation Manual...
Page 7: So, Hello
So, hello! This manual provides commissioning information about Wallbox eNext, which has been designed and tested to allow electric vehicle charging, specified in IEC 61851. This document has different sections such as step-by-step installation procedure and technical data. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT SAFETY INFORMATION IN THIS DOCUMENT ELECTRICAL RISK Necessary precautions shall be taken to prevent any electrical...
Page 8 Wallbox eNext Series Installation Manual I M P O R TA N T E L E C T R I C A L S A F E T Y I N S T R U C T I O N S Read carefully all the instructions before starting in order to ensure properly handling of electrical parts.
Page 9: Before Installation
IEC 61851. caps that don’t close...). • Do modify this unit. • Use only Circontrol supplied spare modified, Circontrol will reject all parts. responsibility and the warranty will • Do not use this product if the be void.
Page 10 Wallbox eNext Series Installation Manual E L E C T R I C A L W I R I N G C O N S I D E R AT I O N S Take into consideration this section before starting wiring connections of the Charge Point.
Page 12 Wallbox eNext Series Installation Manual What’ s included: Installation Charge Point Manual Allen wrench Identification label 2.5 mm...
Page 13: Overview
Overview 1 — Beacon lights 3 — Plugs* 5 — Closing box holes 2 — Cable glands 4 — Wall support holes (*) Plugs may vary depending on the model...
Page 14 Wallbox eNext Series Installation Manual Dimensions in mm...
Page 15: Dimensions
Dimensions 52,5 62,5 62,5 52,5 39,5 20,5 *This measurement may vary...
Page 16 Wallbox eNext Series Installation Manual Material: • Allen wrench of 2,5 mm is included in the installation kit. • Screws, sealing washers and plastic anchors are not included. • The fastening system of the Charge Point has been designed to be installed on a wall.
Page 17: Installation
• Please comply with your country regulations. • The Charge Point shall be installed on a wall or on Circontrol accessories. • When installing the unit, some space shall be reserved for usability, maintenance and safety reasons. The picture below shows the recommended minimum...
Page 18 Wallbox eNext Series Installation Manual Opening Open the Wallbox using an Allen wrench. 2.5mm Allen wrench Use the ratchet tool to open / close in conditions that hinder access...
Page 19 Positioning Drill the wall. Drill bit M 6/8 1100 Dimensions in mm...
Page 20 Wallbox eNext Series Installation Manual Fixing Place the unit on the previous pierced points and fix it with screws.
Page 21 Wiring • Use provided cable glands in order to mantain the IP protection Cable glands M32 • The current of the power supply can be limited. In order to perform this adjustment please refer to the Instruction Manual. • The IEC-61851-1 ed 3 standard indicates that each plug shall have protections. In case the Charge Point has no protections inside, they shall be upstreams.
Page 22 Wallbox eNext Series Installation Manual External electric protections should be placed upstreams as shown below: SINGLE-PHASE Charge Point THREE-PHASE Charge Point Connect to the 230VAC. • Connect to the 400VAC. • • If the Power Supply is Single- Phase, connect L1 and N.
Page 23 Home BeON Home BeON is an optional device that optimises the Electric Vehicle (EV) Charge Point. Analysing the total current consumption in residential facilities, Home BeON manages the remaining current for the EV Charge Point, avoiding any tripping on the Main Circuit. Home BeON is only available on single-phase Charge Points.
Page 24 Wallbox eNext Series Installation Manual DC current leakage detector The DC current leakage detector is an optional device that detects any DC leakage and protects the facility. This protection is performed in two different ways depending on the Charge Point power supply.
Page 25 Remote control function Remote control function is a potential free contact which allows the charge transaction remote start and stop. This remote control function is disabled by default, by means of a jumper (as shown in the picture below). You must remove the jumper to use this function. BOR1 BOR4 BOR1 BOR4 JUMPER...
Page 26 Wallbox eNext Series Installation Manual Closing C l o s e t h e C h a r g e P o i n t a s p e r t h e f o l l o w i n g s t e p s o f v e r i f i c a t i o n a n d o p e r a t i o n .
Page 27 8 — S E C U R E C L O S U R E • Tighten the screws crosswise in the sequence shown below. • As a guideline, the recommended assembly torque is 0.8-1Nm. 9 — O P E R AT I O N Check that no abnormal noise appears while the unit is charging.
Page 28 Wallbox eNext Series Installation Manual GENERAL DATA Beacon lights Frontal LED bar Wireless communication Bluetooth v4.2 + BLE Available connectors Type 2 Socket Type 1 Cable Type 2 Cable MECHANICAL DATA Enclosure rating IP54 / IK10 Enclosure material ABS / PC...
Page 29: Technical Data
Technical Data ELECTRICAL DATA Power supply 1P+N+PE / 3P+N+PE Input voltage 230VAC+/- 10% / 400VAC+/-10% 50Hz / 60Hz Frequency MCB (curve C) - includes shunt trip DC 6mA leakage detector (MCB/RCBO with shunt trip Protections (optional) is required to open the circuit) RCBO: RCD Type A + MCB - includes shunt trip Some models cannot include intern protections, at this point, them shall be placed upstream with the same characteristics.
Page 30 Wallbox eNext Series Installation Manual...
Page 31: Need Help
Need help? In case of any query or if further information is required, please contact our Post-Sales Department ps-support@circontrol.com circontrol.com (+34) 937 362 940 (+34) 937 362 941...
Page 32 CIRCONTROL WALLBOX ENEXT SERIES INSTALLATION MANUAL A comprehensive guide on how to install and verify your Wallbox eNext. V1.6, October edition 2019 R169 CIRCONTROL S.A. - ALL RIGHTS RESERVED...
