EN
16

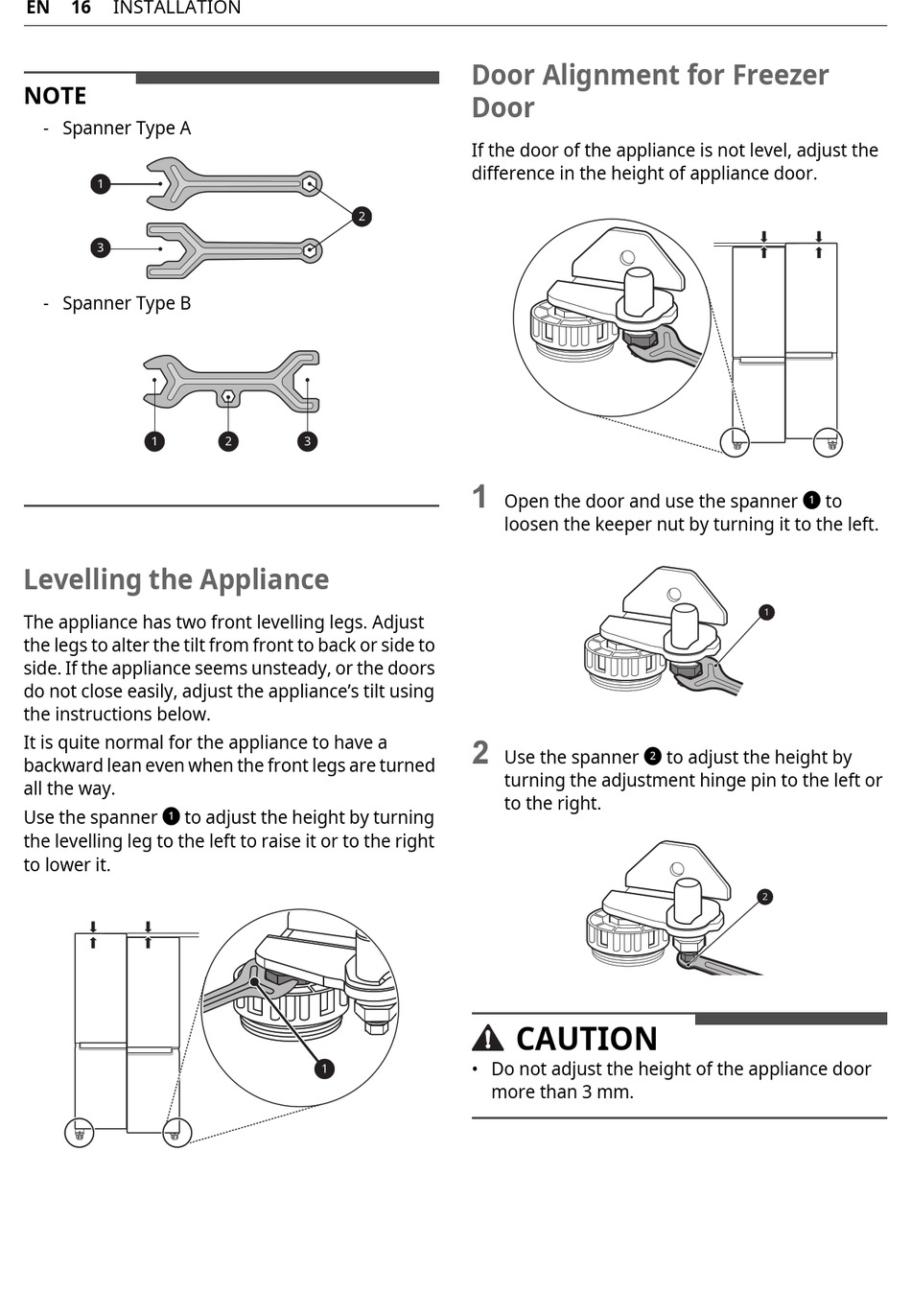

INSTALLATION
NOTE
- Spanner Type A
- Spanner Type B
Levelling the Appliance
The appliance has two front levelling legs. Adjust
the legs to alter the tilt from front to back or side to
side. If the appliance seems unsteady, or the doors
do not close easily, adjust the appliance's tilt using
the instructions below.
It is quite normal for the appliance to have a
backward lean even when the front legs are turned
all the way.
Use the spanner
to adjust the height by turning
a
the levelling leg to the left to raise it or to the right
to lower it.
Door Alignment for Freezer
Door
If the door of the appliance is not level, adjust the
difference in the height of appliance door.
1
Open the door and use the spanner
loosen the keeper nut by turning it to the left.
2
Use the spanner
turning the adjustment hinge pin to the left or
to the right.
CAUTION
• Do not adjust the height of the appliance door
more than 3 mm.
a
to adjust the height by
b
to
