CHAPTER 3

INJECTION SYSTEM COMPONENTS

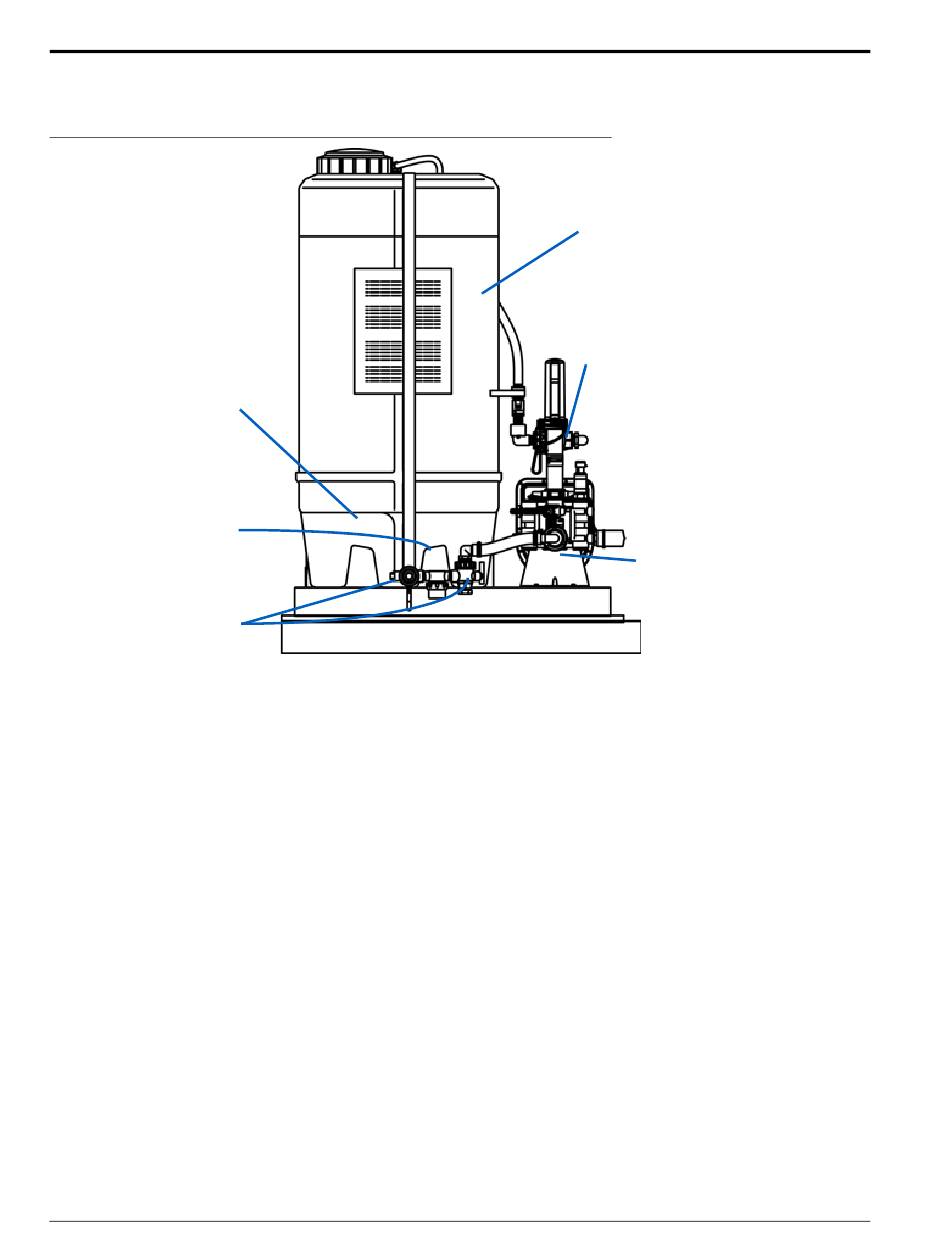

FIGURE 1. Injection Module Components

Tank Saddle

(P/N 118-0159-007)

Strainer

(P/N 333-9000-061)

3-Way Valve with

Center Shut Off

(P/N 334-0001-037)

The Sidekick Pro injection system consists of:

• ISOBUS based universal terminal (UT) and appropriate cabling

• Sidekick Pro™ ICD injection pump

• In-line mixer

• Check valves

• Cabling required to connect injection system components and existing ISOBUS

The following ISOBUS control consoles may be used with the injection system:

• Viper 4

• CR7 or CR12

• ISOBUS compatible UT

SideKick Pro™ ICD 1-40 oz./min. and 5-200 oz./min. Installation & Operation Manual

24 Gallon Tank

(P/N 118-0159-016)

3-Way Valve with Continuous Flow

(P/N 334-0001-054)

Injection Pump Only:

1-40 Oz./Min (063-0174-781)

5-200 Oz./Min (063-0174-780)
