Install the SmarTrax Node

Mount the SmarTrax Node

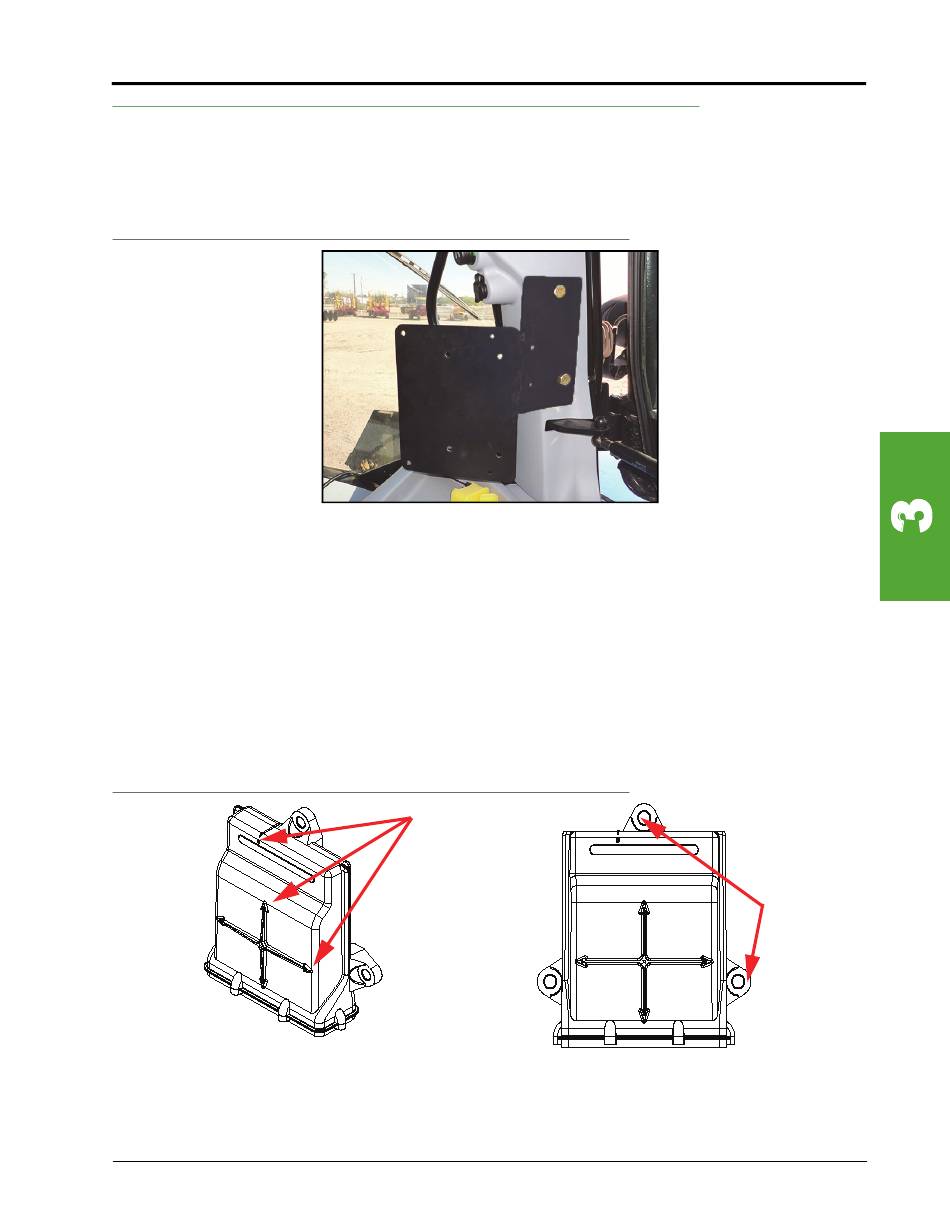

Node Mounting Bracket Installed
FIGURE 5.
Mount the SmarTrax node (P/N 063-0173-228) to the node mounting bracket (P/N 107-0172-137) using
1.
three 3/8"-16 lock nuts (P/N 312-4001-109).
Remove the two bolts and washers from the post in the left-rear corner of the cab.
2.
Note:
The bolts are located just above the base of the door's gas spring.
Align the node mounting bracket with the holes in the post and reinstall the machine's washers and bolts.
3.
Note:
The washers should be placed between the post and the node mounting bracket.

Node Mounting Locations

Node Mounting
FIGURE 6.
When choosing the location for the SmarTrax node, consider the following points:
•
Mount the SmarTrax node inside the machine's cab on a flat, level surface for proper performance and
cable connection.
Manual No. 016-5032-007 Rev. B
Direction Arrows
Any two arrows must
be parallel with level
ground
