Chapter 3

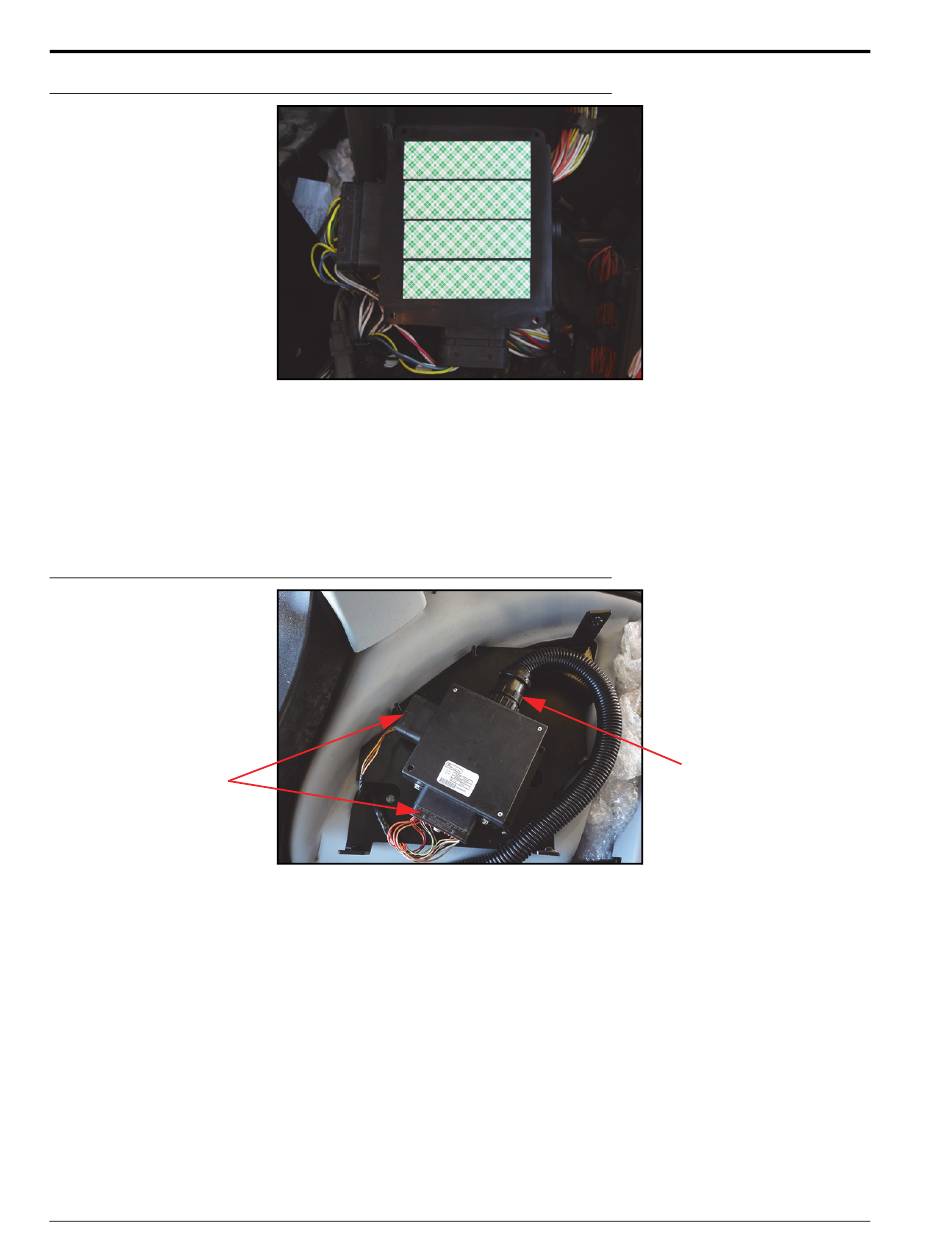

Double-Sided Tape on Case IH Interface Box
FIGURE 3.
Place four double-sided tape strips on the bottom of the Case IH interface box (P/N 063-0173-038).
3.
Remove the backing from the double-sided tape and adhere the Case IH interface box to the metal plate in
4.
the storage compartment.
Note:
The Case IH interface box should be oriented so that the round 37-pin connector on the side of the
box points away from the operator's seat.
Case IH Interface Box Installed
FIGURE 4.
Machine's
Existing Steering
Control Cables
Connect the machine's steering control cables to the Case interface box (P/N 063-0173-038).
5.
Connect the round 37-pin connector from the node harness (P/N 115-4001-068) to the 37-pin port of the
6.
Case IH interface box.
Route the node harness out of the storage compartment toward the operator's seat.
7.
Compress the foam insulation of the side wall so that the node harness fits and reinstall the storage
8.
compartment cover.
8
Case IH Puma and New Holland T70X0/T7.XXX - Steering Ready SmarTrax™ Installation Manual
Node Harness
(P/N 115-4001-068)
