Electrical installation

9 ELECTRICAL INSTALLATION
All electrical inputs and outputs of the device are not galvanically
isolated from the supply voltage.
9.1

Safety instructions

DANGER!
Risk of electric shock.
▶ Before working on equipment or device, switch off the power
supply and secure to prevent reactivation.
▶ Observe applicable accident prevention and safety regulations
for electrical equipment.
WARNING!
Risk of injury from improper installation.
▶ Installation may be carried out by authorized technicians
only and with the appropriate tools.
Risk of injury from unintentional activation of the system and
an uncontrolled restart.
▶ Secure system from unintentional activation.
▶ Following installation, ensure a controlled restart.
Type 8696
9.2 Electrical installation with circular
plug-in connector
→ Connect the positioner according to the table.
5
6
4
7
3
8
2
1

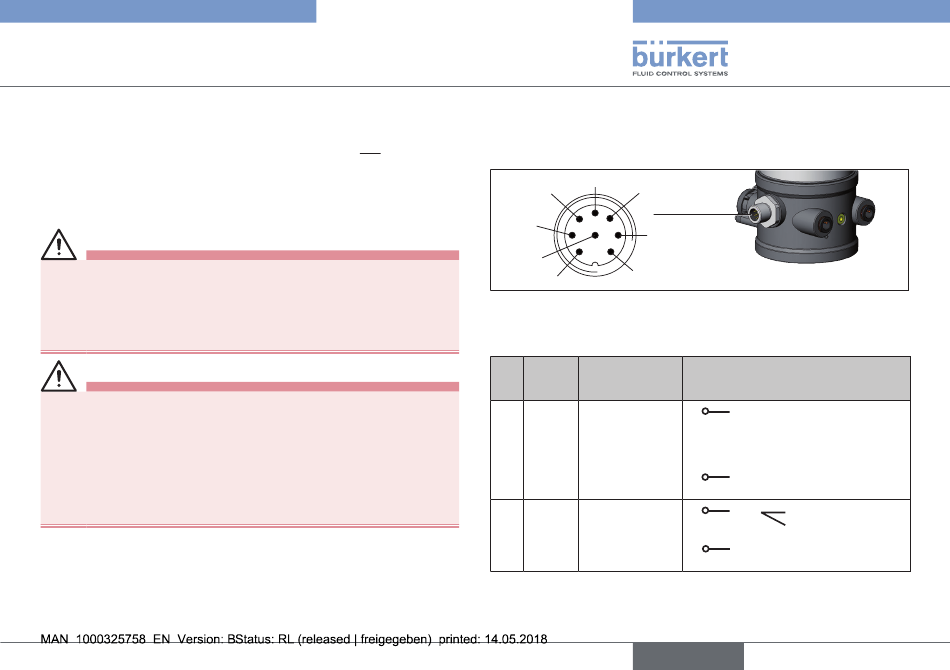

Fig. 9: Circular plug M12 x 1, 8-pole
Input signals of the control center (e.g. PLC)
Wire
Pin Configuration External circuit / signal level
color
3)
1 white Set-point value
+
(0/4 – 20 mA)
2 brown Set-point value
GND
5 grey Binary input +
6 pink Binary input
GND
Tab. 3: Pin assignment - input signals of the control center
english
1 + (0/4 – 24 mA)
GND
2
5 0 – 5 V (log. 0)
+
10 – 30 V (log. 1)
6
GND
15
