DigiMod PFC4

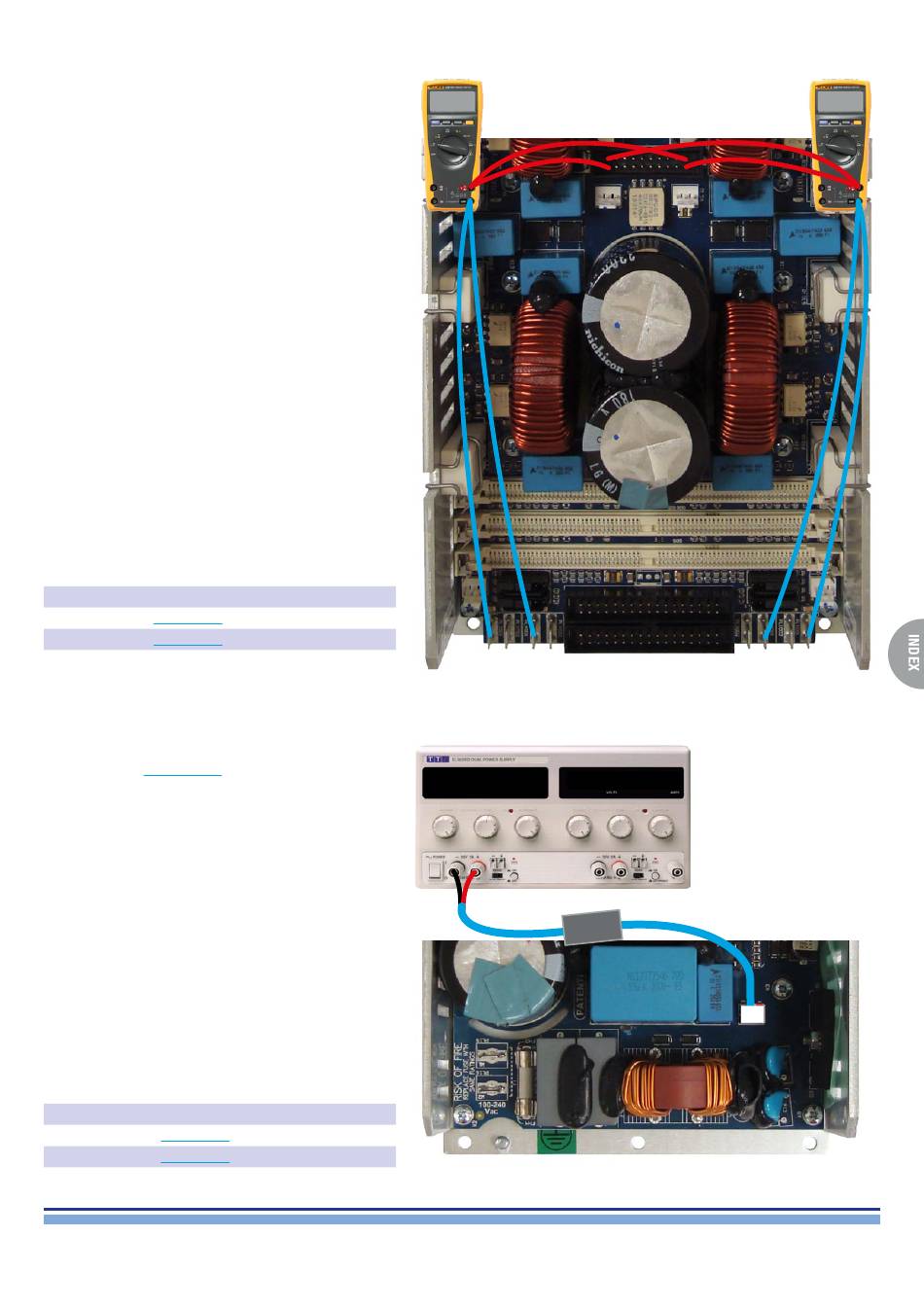

By means of a multimeter set to Ohm, check for any short
circuit in the Mosfets by probing on the points indicated
on (Fig. 9).
Please refer to the following table when ordering the
repair Kit.
Model Kit Number
DigiMod PFC2 KT000891.R
DigiMod PFC4 KT000841.R

Checking the Power Supply

This step is common to both PFC2 and PFC4 models.
By means of the CB000591.R, connect a DC Power supply
to the module's PL1 connector.
Supply 15Vdc.
Check the current drawn by the module, it should be
around 27.5mA.
(Fig. 10)
Please refer to the following table when ordering the
repair Kit.
Model Kit Number
DigiMod PFC2 KT000890.R
DigiMod PFC4 KT000843.R
Description
KIT DM PFC2 AMP 1CH
KIT DM PFC4 AMP 1CH
Description
KIT DM PFC2 PSU
KIT DM PFC4 PSU
Ω
15Vdc 27.5mA
DigiMod PFC2 - PFC4 | SERVICE MANUAL
(Fig. 9)
(Fig. 10)
Ω
