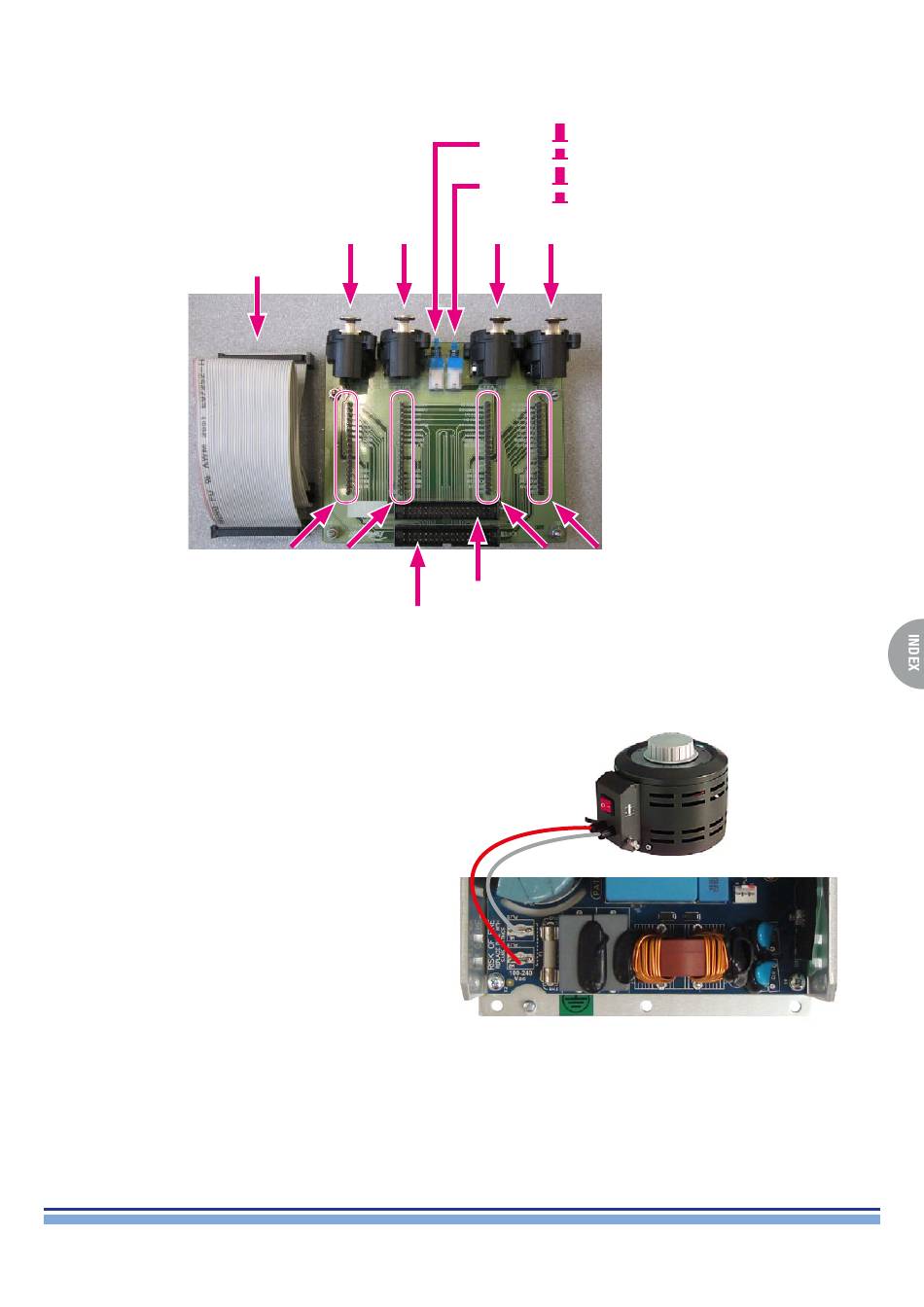

KT000291 Interface Board

Switching the Module On in AC - 8Ω LOAD CONNECTED (1KW max power) AT000043
Connect a Variac to the CN8 (PL15/16) connector and
slowly increase the voltage to 100 VAC
CH 1 CH 3
CB000350
PL 1 PL 3
CH 1&2
DigiMod PFC2 - PFC4 | SERVICE MANUAL
Link switches
Single channel Mode
SW1/2
Link CH1 + CH2
Single channel Mode
SW3/4
Link CH3 + CH4
Input connectors
CH 4 CH 2
PL 4 PL 2
CH 3&4
Output connectors
Testing point
