DigiMod PFC2 - PFC4 | SERVICE MANUAL

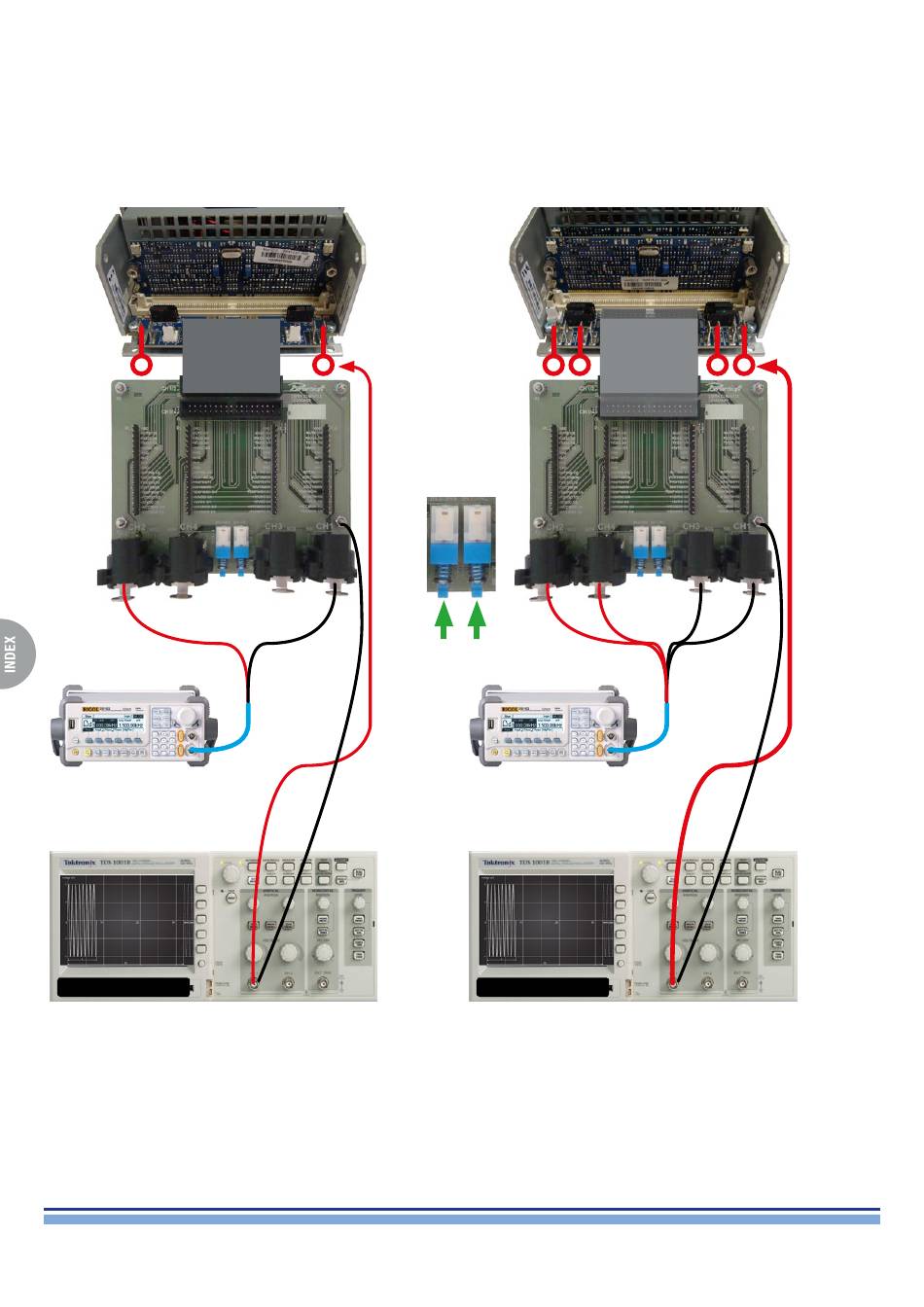

Connect the module to the KT000291 Interface Board (CH1/2 on DigiMod PFC2, CH1/2 - CH3/4 on DigiMod PFC4) , and press the
switches between the XLR connectors in order to link CH1+CH2 and CH3+CH4.
Connect a function generator to the CH1, CH2 (PFC2) or CH1, CH2, CH3, CH4 (PFC4) ins on the Interface Board and feed a 1 kHz sine
wave @ 1 Vrms 8-32 EIAJ test signal.
DigiMod PFC2
CH1/2
+
KHz
122Vp 1
22
DigiMod PFC4
+
The pushbuttons must be
set to the pressed position.
122Vp 1
CH3/4
CH1/2
+
+
+
KHz
+
