DigiMod PFC2 - PFC4 | SERVICE MANUAL
Upgrading the EEPROM

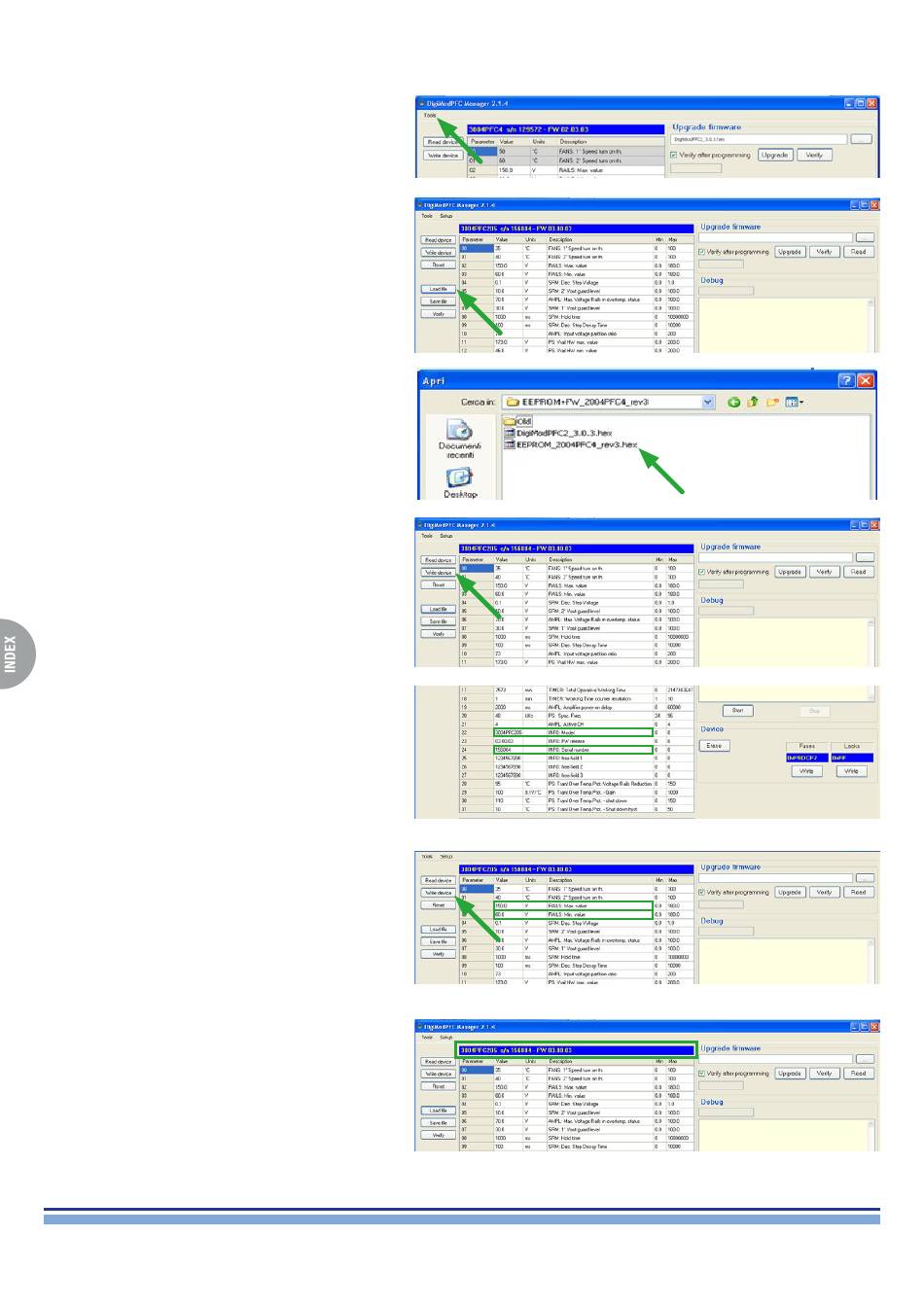

• Click on "Tools"
• Click on "Enable"
• insert the password: " p@ssw0rd "
• Click on the indicated point "Load File"
• Double-Click the EEPROM Upgrade file
i.e. EEPROM_2004PFC4_rev 3.hex
• Click on the indicated point "Write Device"
• Wait for the Completion of the Process
• Insert the Module's Serial Number
i.e. INFO: Serial Number = 123456
• L.ACOUSTIC models: insert the Model's Info
i.e. INFO: Model = 3004PFC2LA
• L.ACOUSTIC models: Check the following Limits
RAIL S: Max value = 150V
RAIL S: Min Value = 100V
• Click on the indicated point "Write Device"
• Check the Model, Serial Number and FW Version
• Click on "Tools"
• Click on "Disable"
• Switch the Module off and Disconnect it from the PC
