DigiMod PFC2 - PFC4 | SERVICE MANUAL
Thermal Limit
Switch the input signal off.
Switch the module on.

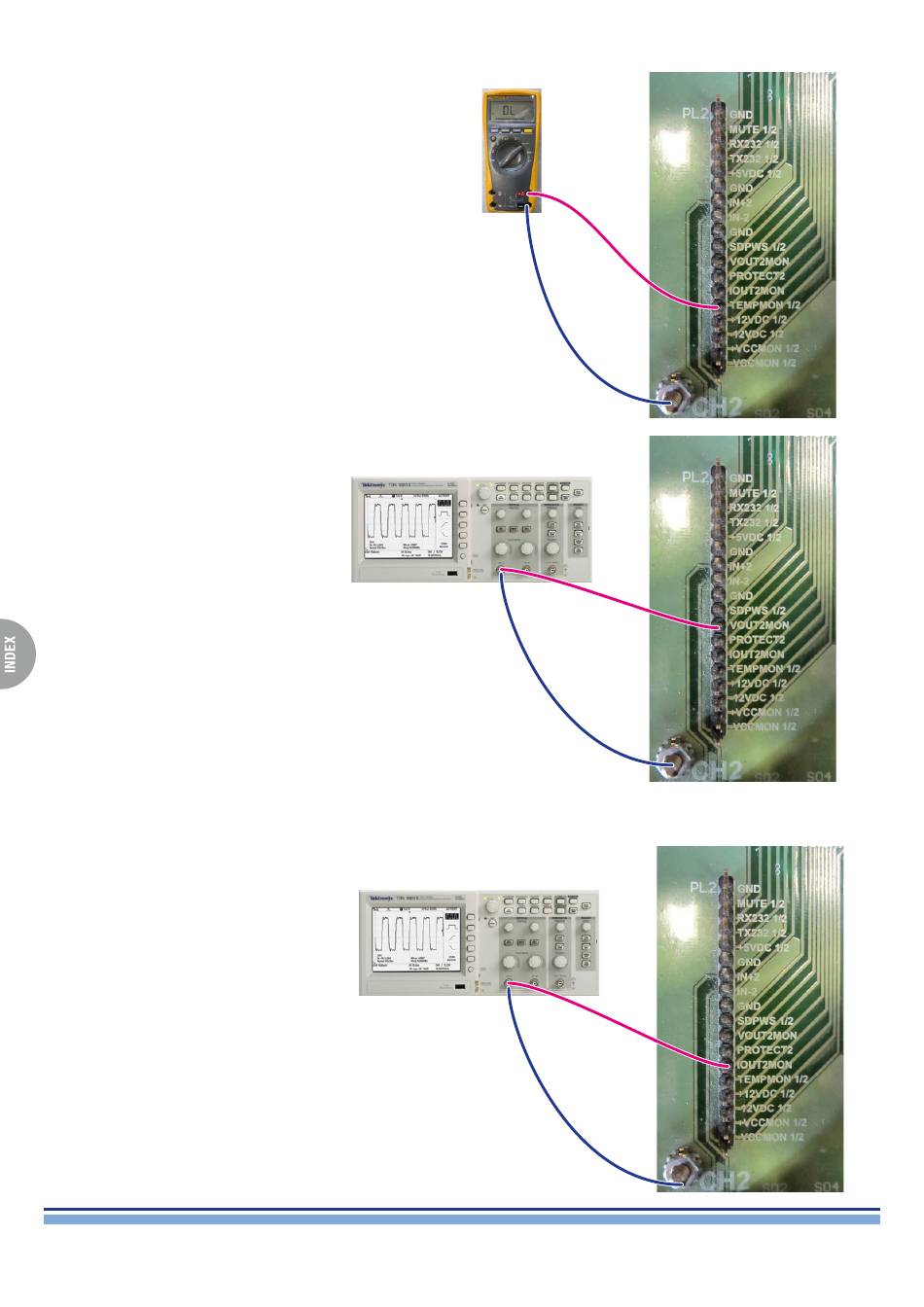

Measure the voltage at the TEMPMON pin
2.75 V
< V
< 2.85 V
DC
TEMPMON
DC
Switch the input signal on.
After approximatively 3 minutes the module's fans start
spinning.
Measure the voltage at the TEMPMON pin
2.20 V
< V
< 2.30 V
DC
TEMPMON
DC
VOUTMON Voltage
Measure the voltage at the VOUTMON pin:
5.40 V
< V
< 5.70 V
peak
VOUT2MON
IOUTMON Voltage
Measure the voltage at the IOUTMON pin:
2.85 V
< V
< 3.10 V
peak
IOUT2MON
24
(no input signal)
(with input signal)
peak
peak
