© 2012 - 2013 Powersoft
powersoft_MSeries_uguide_en_v2.6
M Series amplifiers

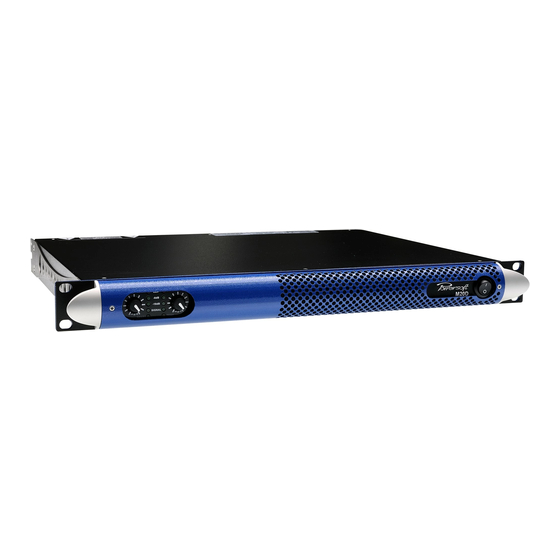

M30D / M30D HDSP+ETH
M20D / M20D HDSP+ETH
M14D / M14D HDSP+ETH
M50Q / M50Q HDSP+ETH
M28Q / M28Q HDSP+ETH
CLIP
6dB
-18dB
SIGNAL
-
-
+32
+32
dB
dB
TEMP
READY
user guide
REV 1.1 August 2013
DO000100
Keep This Manual For Future Reference
Advertisement
Table of Contents
Related Manuals for powersoft M30D HDSP+ETH
Summary of Contents for powersoft M30D HDSP+ETH
-

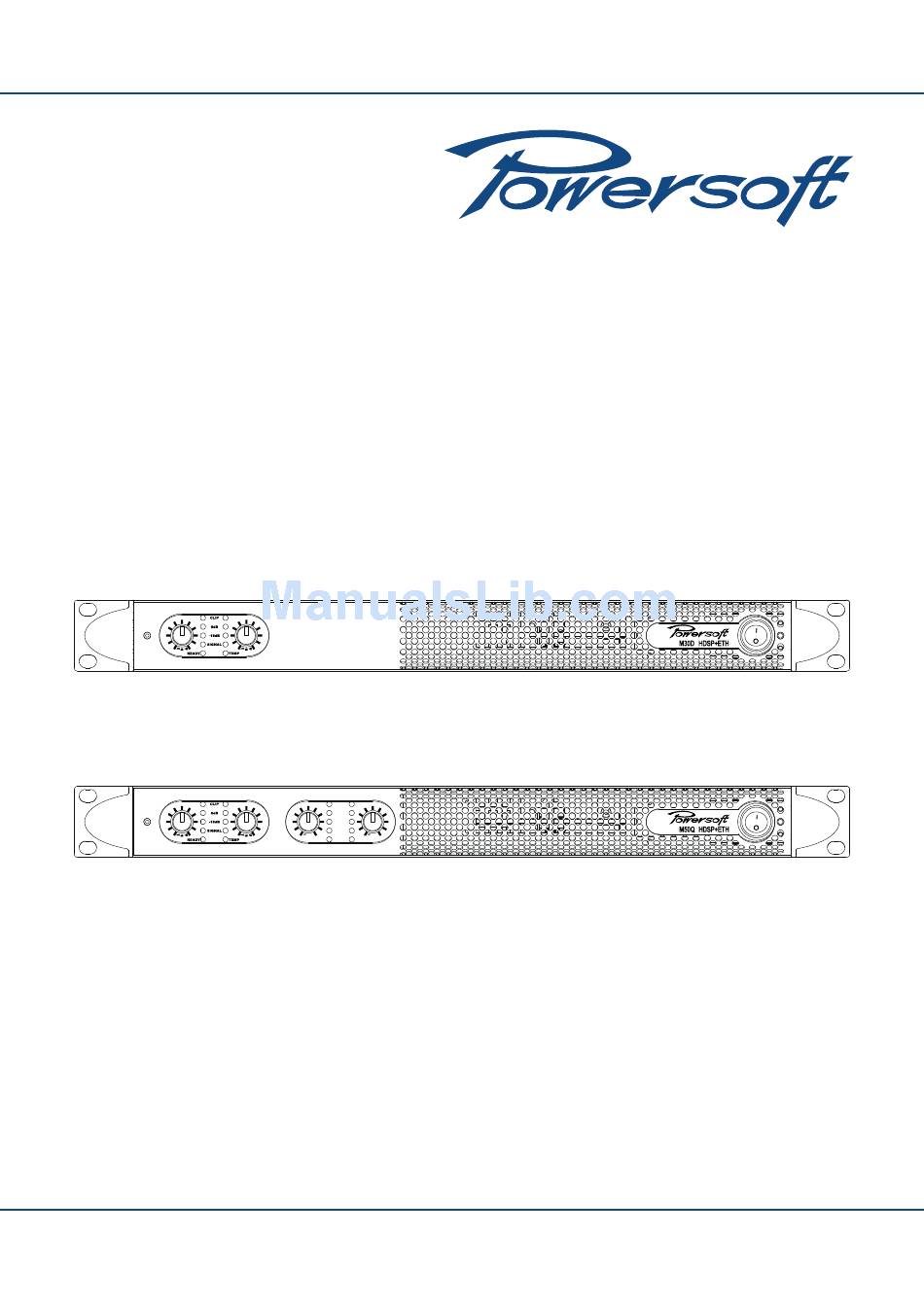

Page 1: User Guide
M Series amplifiers M30D / M30D HDSP+ETH M20D / M20D HDSP+ETH M14D / M14D HDSP+ETH M50Q / M50Q HDSP+ETH M28Q / M28Q HDSP+ETH CLIP -18dB SIGNAL TEMP READY user guide REV 1.1 August 2013 © 2012 - 2013 Powersoft DO000100 Keep This Manual For Future Reference powersoft_MSeries_uguide_en_v2.6... -
Page 2: Table Of Contents
Table of contents 9.3 V Ext 9.4 DSP features and operations 1 Important safety instructions 9.4.1 DSP Features 2 Precautions regarding installation 9.4.2 Input routing selection and internal signal route 2.1 Location 9.4.3 Input section 2.2 Wiring 9.4.4 Output section 2.3 Speaker damage 9.5 Internal processing layout 3 Mechanical drawings... - Page 3 10.8.5 RMS limiter M14D and M14D HDSP+ETH 10.8.6 Peak limiter M20D and M20D HDSP+ETH 10.8.7 Damping factor correction M30D and M30D HDSP+ETH 10.9 Locking M28Q and M28Q HDSP+ETH 10.10 On board preset operations M50Q and M50Q HDSP+ETH 10.11 Copy and paste operations Annex A: IP management and recovery 10.12 Input/output eq curves...
-
Page 4: Important Safety Instructions
TV sets. An amplifier f Ensure a proper ventilation. installed in close proximity of such equipment may experience f Install in accordance with Powersoft’s instructions. noise or generic performance degradation. f Do not install near any heat sources or apparatus that produce heat. -
Page 5: Wiring
2.2 Wiring This manual contains important information on operating your Powersoft amplifier correctly and safely. Please read it carefully before operating your amplifier. If you have any questions, con- This device must be powered exclusively by earth con- nected mains sockets in electrical networks compliant to tact your Powersoft dealer. -
Page 6: Mechanical Drawings
3 Mechanical drawings 379,5 44,1 337,3 FIGURE 1: M Series mechanical drawing. All dimensions in millimiters. -
Page 7: Interfaces
FIGURE 2: M Series – MxxD front panel view. PAT. PEND. Made in Italy FIGURE 3: M Series – MxxD (non HDSP+ETH) rear panel view. PAT. PEND. Made in Italy FIGURE 4: M Series HDSP+ETH rear panel view. 1. Channel 1 input attenuator 8. - Page 8 CLIP -18dB SIGNAL READY TEMP FIGURE 5: M Series – MxxQ front panel view. PAT. PEND. Made in Italy FIGURE 6: M Series – MxxQ (non HDSP+ETH) rear panel view. PAT. PEND. Made in Italy FIGURE 7: M Series HDSP+ETH rear panel view.
-
Page 9: Welcome
Congratulations on buying a Powersoft M Series amplifier! multi patented application of Pulse Width Modulation (PWM) Powersoft is a leading company in the field of high efficiency high frequency sampling techniques is just one of the many factors audio power management. The Powersoft Class D technology contributing to the M Series’... -
Page 10: Mounting
Damage caused by connecting the amplifier to an improper AC mains voltage is not covered by the warranty. All Powersoft amplifiers are designed for standard 19” rack By using good quality input and speaker cables, the likelihood mounting with four front panel holes and two rear-lateral holes. In of erratic signal behavior is reduced to a minimum. -
Page 11: Front Panel Adjustments
High impedance loudspeakers can be paralleled in 70V/100V distributed lines and directly managed by the M Series amplifiers. GREEN Input signal presence SIGNAL High output voltage per channel of M20D, M30D and M50Q Status indicators amplifiers guarantees direct connection to hi-Z loudspeakers in a Color Solid ON Label line (see FIGURE 13). -
Page 12: Series Hdsp+Eth Operation
on channels 1 and 2, while the second column refers to the preset speakON Single channel mode selected for channels 3 and 4. A signal can be sent remotely to the connector amp to force all preset LEDs to blink for 30 s; this can be useful in a situation where many amplifiers are networked together and it 2–... -
Page 13: Input Routing Selection And Internal Signal Route
Release time, 4 – 4500 ms. With 1 ms steps experienced user as well as a complete tool with remote control Two biquad filters for frequency shaping. Frequency for the end user. The ADAU 1701 device is a fixed point DSP shaping is a function obtained by pre and post limiter eq. -
Page 14: Locking
Equalizer f Output Section: The M Series HDSP+ETH boards allow full amplifier remote Equalizer control with Powersoft’s software client Armonía Pro Audio Suite. RMS Limiter Other third party clients are also available. Peak Limiter Armonía Pro Audio Suite is a software environment entirely... -
Page 15: Autoip
10.1.3 AUTOIP WARNING! The device is reachable only from PCs in the same subnet mask, if this information is lost you will need to re-init Every device tries to set up network communication when the the network device with a third-party software. data cable is plugged in and connected to another device (PC, switch, etc.). -
Page 16: Setup Device
10.2 Setup device There are two ways to configure the device, based on your needs and on the availability of the real device. The main difference is that you can either work with virtual devices before going online and then send the setup to the units remotely or you can operate on the physical unit directly. -
Page 17: File Operations
WARNING! Remember that turning off or disconnecting the IMPORT: save a .preset file on the selected slot and recall that slot. power plug without saving changes on any internal memory slot leads to data loss. Before turning off, save the data on any internal slot or WARNING! This leads to a couple of seconds interruption of export to a .pam file. -
Page 18: Device Preset File .Pam
NOTE: In the 1 in / 2 out configuration, the input eq is exported f yes, the device specified in the window will be aligned to the (or applied) to both input eq’s. For example, exporting 1 in / 2 out data in the .paw file;... -
Page 19: Output Eq
Every channel limiter is color coded: blue for channel 1, red for resistance can affect the output stage damping factor. Powersoft channel 2, green for channel 3, orange for channel 4. -
Page 20: Locking
The following values can be set by the user: f Enable: enables the correction algorithm. f Resistance compensation: set the negative or positive resistance value added to the output circuitry. The cable resistance tool allows to set: f Cable dimensions: enter the gauge of the wire used in the speaker cable and the cable length into the Wire gauge dropdown list and the Wire length spinbox respectively. -
Page 21: Copy And Paste Operations
NOTE: pasting a channel preset file doesn’t modify the internal structure of a device. For example, a channel copied from a All Powersoft amplifiers have variable speed fans to assist 1 in / 2 out configuration doesn’t affect the internal structure cooling. -
Page 22: Thermal Warning
(forty eight) months, starting from the date of purchase printed on In order to protect your speakers from mechanical damage Powersoft’s (or any of its Authorized Dealer’s) invoice to the end caused by a DC signal coming from the amplifier’s output, a DC customer. -
Page 23: Assistance
Powersoft Customer Care or your direct knowledge, occasionally, due the nature of the failure, it might be necessary to return defective products to Powersoft for repair. In the latter case, before shipping, you are kindly asked to follow step by step the procedure described below: Obtain the “Defect Report Form”... -
Page 24: Series Power Rating
— — 1400 W 2 channel M20D/M20D HDSP+ETH 1200 W 600 W 1200 W — 2400 W amplifiers M30D/M30D HDSP+ETH 1500 W 900 W 1200 W 1500 W 3000 W M28Q/M28Q HDSP+ETH 700 W 360 W — — 1400 W... -
Page 25: Specifications
18 Specifications M14D and M14D HDSP+ETH General Number of channels 2 mono, bridgable per channel pair Max output power per channel single channel mode bridge mode 4 � / Ch 8 � / Ch 8� / Ch pair 700 W 360 W 1400 W Max output voltage... -
Page 26: M20D And M20D Hdsp+Eth
M20D and M20D HDSP+ETH General Number of channels 2 mono, bridgable per channel pair Max output power per channel single channel mode bridge mode 4 � / Ch 8 � / Ch 70 V 100 V 8� / Ch pair 1200 W 600 W 1200 W... -
Page 27: M30D And M30D Hdsp+Eth
M30D and M30D HDSP+ETH General Number of channels 2 mono, bridgable per channel pair Max output power per channel single channel mode bridge mode 4 � / Ch 8 � / Ch 70 V 100 V 8� / Ch pair... -
Page 28: M28Q And M28Q Hdsp+Eth
M28Q and M28Q HDSP+ETH General Number of channels 4 mono, bridgable per channel pair Max output power per channel single channel mode bridge mode 4 � / Ch 8 � / Ch 8� / Ch pair 700 W 360 W 1400 W Max output voltage 85 V... -
Page 29: M50Q And M50Q Hdsp+Eth
M50Q and M50Q HDSP+ETH General Number of channels 4 mono, bridgable per channel pair Max output power per channel single channel mode bridge mode 4 � / Ch 8 � / Ch 70 V 100 V 8� / Ch pair 1250 W 750 W 1200 W... -
Page 30: Annex A: Ip Management And Recovery
In order to reset the IP configuration of your M Series are visbile with this software. HDSP+ETH amplifier outside the Armonía environment, follow Powersoft will be not responsible for any damage suffered by next instruction. third-party products equipped with Lantronix hardware. - Page 31 Next images display how to set a DHCP IP addressing. FIGURE A.5: Select Obtain an IP address and click next. FIGURE A.6: Set DHCP and Auto IP assignment.
- Page 32 Via Enrico Conti, 5 50018 Scandicci (FI) Italy Tel: +39 055 735 0230 Fax: +39 055 735 6235 General inquiries: info@powersoft.it Sales: sales@powersoft.it Application & technical support: support@powersoft.it Service & maintenance: service@powersoft.it www.powersoft-audio.com © 2012 - 2013 Powersoft powersoft_MSeries_uguide_en_v2.6...
