DigiMod PFC2 - PFC4 | SERVICE MANUAL

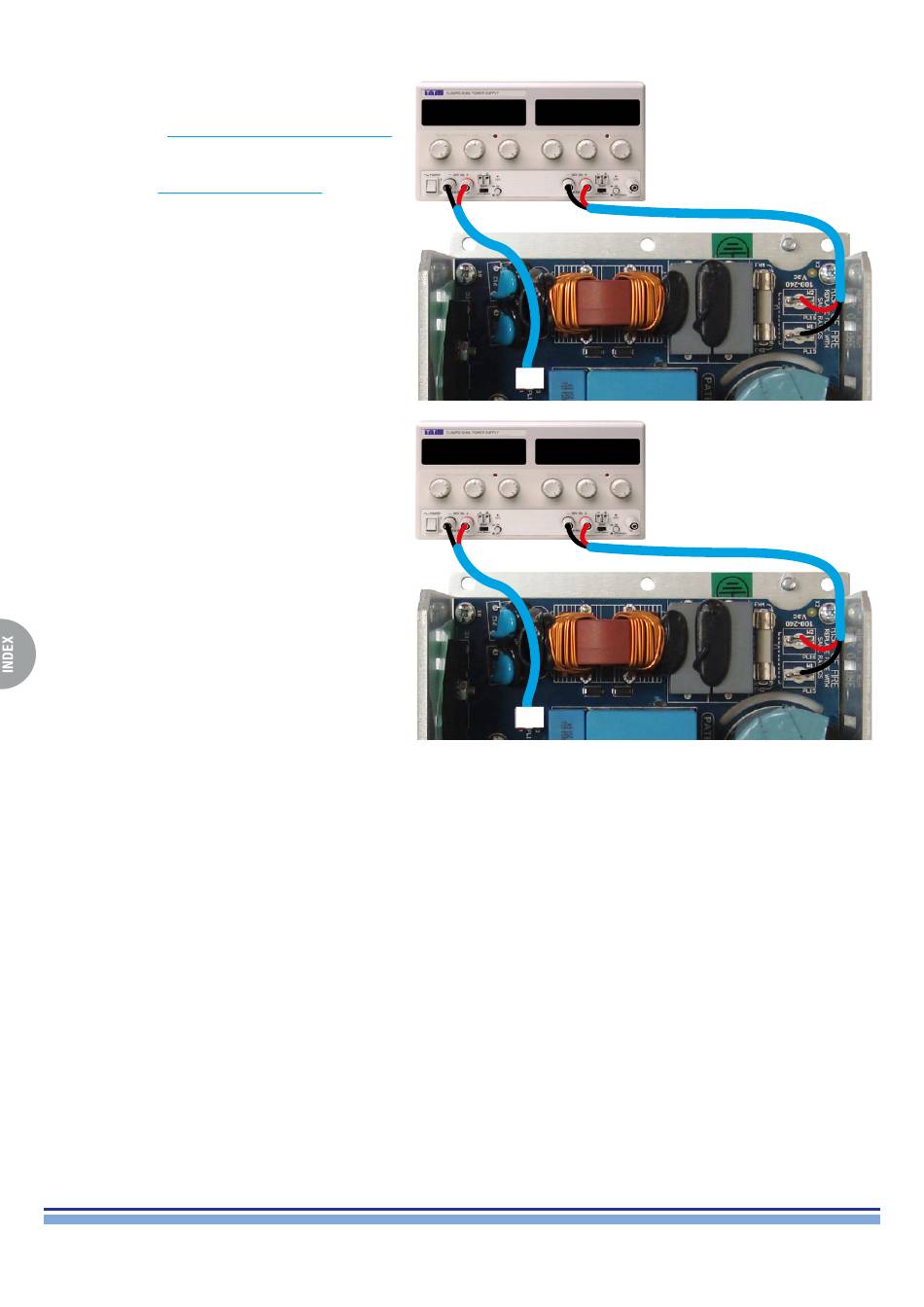

Switching the module on in DC
This step is common to both the PFC2 and PFC4 models.
By means of the
DigiMod PSU AUX Voltage
connect a DC Power supply to the module's PL1
connector and supply 15Vdc.
By means of the
DigiMod Mains DC
second DC Power Supply and supply 30Vdc by slowly
incrementing the output voltage to spec.
Check the current drawn by the module:
PFC 2
15Vdc - 17.5 mA
30Vdc - 375 mA
PFC 4
15Vdc - 20mA
30Vdc - 630mA
(Fig. 14)
12
15Vdc 17.5mA
Cable,
Cable, connect a
15Vdc 20mA
30Vdc 375mA
PFC2
30Vdc 630mA
PFC4
(Fig. 14)
