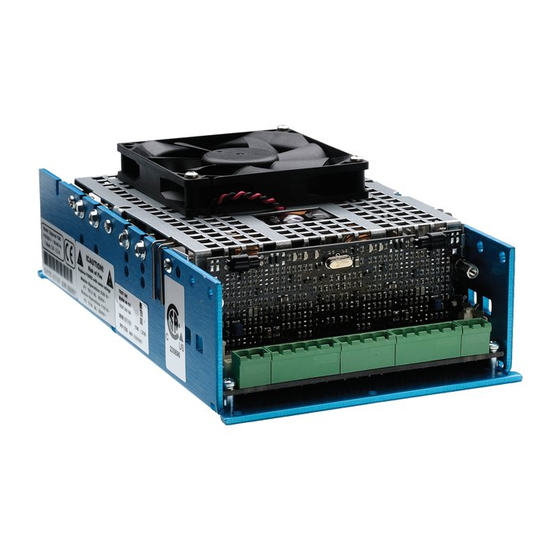

powersoft DigiMod 500 User Manual
Hide thumbs
Also See for DigiMod 500:
- Service manual (26 pages) ,
- How to connect (5 pages) ,
- Service manual (21 pages)
Related Manuals for powersoft DigiMod 500
Summary of Contents for powersoft DigiMod 500
- Page 1 6/24/02 DigiMod 500 DigiMod 1000 DigiMod 1500 DigiMod 2000HV DigiMod 1000NPS User Manual COD: MAN-DGM-USER_MAN19-EN-11 NOV 2007...
- Page 2 2014/35/EU Low Voltage Directive 2014/30/EU EMC Directive 2011/65/EU RoHS Directive For more details, please refer to Powersoft website. This equipment may introduce harmonics components higher than IEC 61000-3-2 Class A limits when connected to the supply mains. It is the responsibility of the installer or user of the equipment to inform and ask for, by consultation with the distribution network operator if necessary, the permission to connect this equipment to the low voltage supply (see clause 4 of IEC 61000-3-2).
-
Page 3: Safety Rules
Safety rules DigiMod 500/1000/1500/2000HV/1000NPS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This device must be powered exclusively by earth connected mains sockets in electrical networks compliant to the IEC 364 or similar rules. Is absolutely necessary to verify this fundamental requirement of safety and, in case of doubt, require an accurate check by a qualified personal. -
Page 4: Specifications
Auxiliary supply ................Dc +15V (+30% -15%)@(0.7 A) / -15 V (+30% -15%)@ (0.3 A) +7V (+30% -15%)@(0.5 A) All requirements are provided by a master DigiMod 500 orDigiMod 1000 thru slave connector DIMENSIONS / WEIGHTS Weight ..................1.0 Kg DigiMod500 Weight .................. -
Page 5: Connection Description
Connection description DigiMod 500/1000/1500/2000HV/1000NPS CN3: PIN1, POWER OUTPUT CHANNEL 1 POSITIVE PIN2, POWER OUTPUT CHANNEL 1 NEGATIVE CN11: PIN1, SIGNAL GROUND CHANNEL 1 PIN2, BALANCED INPUT + CHANNEL 1 PIN3, BALANCED INPUT – CHANNEL 1 PIN4, OUTPUT TO EXTERNAL VOLUME CONTROL CHANNEL 1, R Potentiometer = 1KOhm to 2.7Kohm, linear type... -
Page 6: Mating Connectors
Mating connectors DigiMod 500/1000/1500/2000HV/1000NPS Connectors ID Manufacturer Model/Code CN1 (2POLES 7.5mm) Phoenix Contact GMSTB 2,5/2-ST(Cod. Ph.C. 1766880) (DigiMod500/1000/1500) (Cod. Powersoft CN000153) CN1 (2 poles, Faston) Various 6.3x0.8 mm female Faston (DigiMod2000HV) CN2 (2POLES 7.5mm) Phoenix Contact GMSTB 2,5/2-ST (Cod. Ph.C. 1766880) (DigiMod500/1000/1500) (Cod. - Page 7 Power Wiring Cable DigiMod1000NPS Powersoft s.r.l. - P. IVA n. 04644200489 – Via E.Conti, 5 Scandicci - Tel.: (+39) 055 7350230- Fax: 055 7356235 07/11/07...
-
Page 8: Thermal Constrains
RISK OF ELECTRIC SHOCK DO NOT OPEN This device must be correctly heatsinked for correct and reliable operation: Two operating modes are feasible for DigiMod 500/1000/1000NPS. fan cooled operation external heatsink operation For Digimod1500/2000HV only fan cooling operation is provided 1) Thermal behaviour with upper mounted fan cooler (80X80mm, 24 Vdc) is warranted by design up to 50°C enviromental temperature with 6 dB power crest factor program operation,... -
Page 9: Application Tips
Application tips DigiMod 500/1000/1500/2000HV/1000NPS WARNING! Mains Connections details for Digimod 2000HV In case of usage of not protected fast-on connectors, the minimum air distance between Earth connection and mains energized fast-on body / blades, must be at least 2,5mm. Single ended operation (stereo and bi-amp mode): DigiMod output stage is designed to work in balanced supply mode. - Page 10 $ % ! $ % ! $ % ! $ % ! " " " " ! ! ! ! Powersoft s.r.l. - P. IVA n. 04644200489 – Via E.Conti, 5 Scandicci - Tel.: (+39) 055 7350230- Fax: 055 7356235 07/11/07...
- Page 11 ! ! ! ! CN15 = Power connector for slave unit wiring CN8 = Simm board connector see details Powersoft s.r.l. - P. IVA n. 04644200489 – Via E.Conti, 5 Scandicci - Tel.: (+39) 055 7350230- Fax: 055 7356235 07/11/07...
- Page 12 Connecting Layout DigiMod1000NPS " " " " ! ! ! ! Powersoft s.r.l. - P. IVA n. 04644200489 – Via E.Conti, 5 Scandicci - Tel.: (+39) 055 7350230- Fax: 055 7356235 07/11/07...
- Page 13 CN8 Simm Socket application DigiMod 500/1000/1500/2000HV/1000NPS Powersoft s.r.l. - P. IVA n. 04644200489 – Via E.Conti, 5 Scandicci - Tel.: (+39) 055 7350230- Fax: 055 7356235 07/11/07...
- Page 14 CN11,CN12,CN16 interface board application DigiMod 500/1000/1500/2000HV/1000NPS Powersoft s.r.l. - P. IVA n. 04644200489 – Via E.Conti, 5 Scandicci - Tel.: (+39) 055 7350230- Fax: 055 7356235 07/11/07...
- Page 15 DGMDSPA installation DigiMod 500/1000/1500/2000HV/1000NPS DGMDSPA installation consist in removing J3 and J4 jumpers to allow signal path to flow to DGMDSPA board or remove the jumpers located on pins 3,4 of CN18 and 1,2 of CN17 ( in the latest releases of the units) .
