Checking modules in DC - PSU Current Consumption

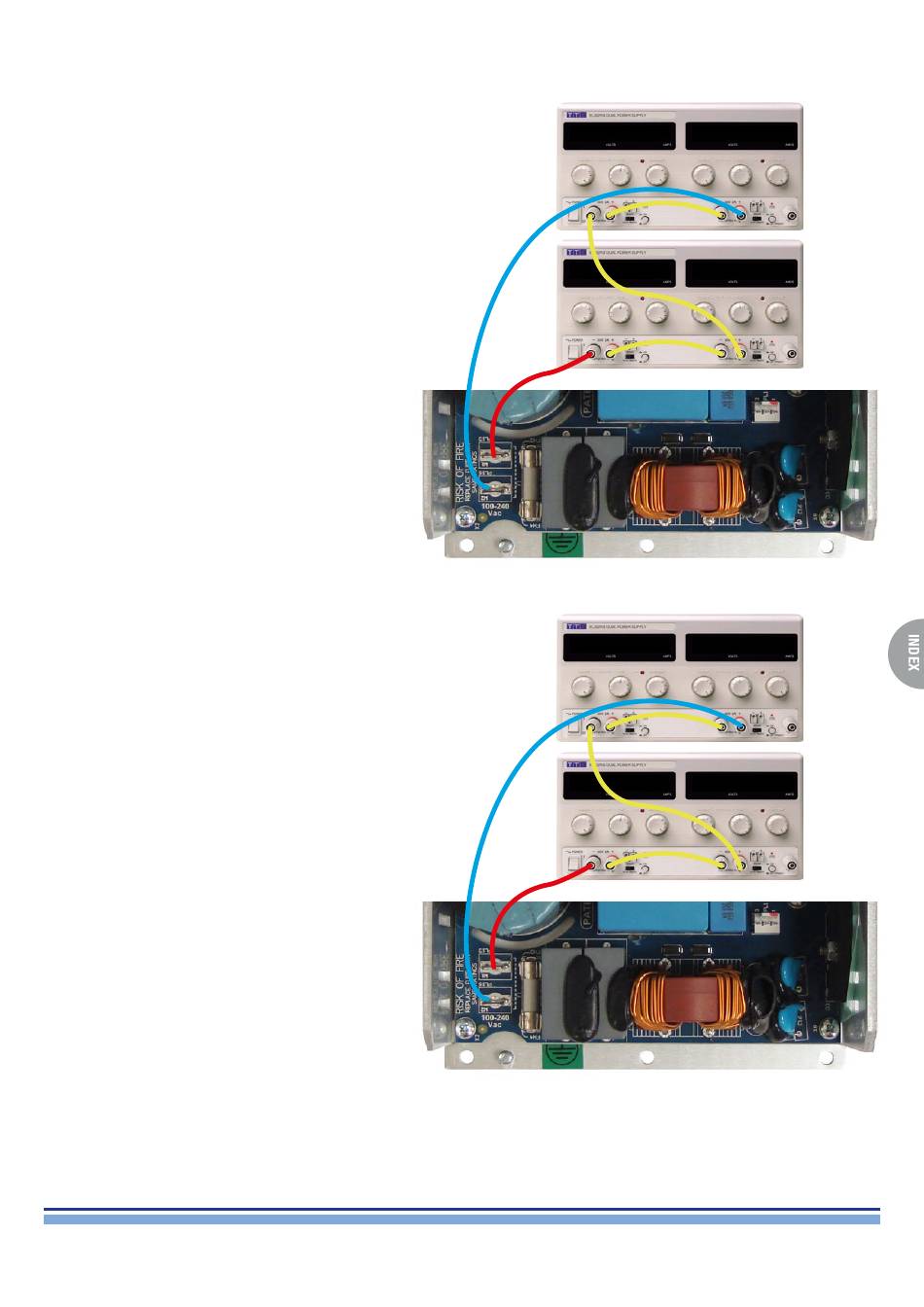

Connect two external power supplies as portrayed in the
pictures in order to switch on the module with 120 V
Check the Current Consumption on the Power Supply.
PFC2
30V 98mA
PFC4
30V 164mA
dc.
DigiMod PFC2 - PFC4 | SERVICE MANUAL
30 V 98 mA 30 V
30 V 98 mA 30 V
PFC2
30 V 164 mA 30 V
30 V 164 mA 30 V
PFC4
(Fig. 15)
98 mA
98 mA
164 mA
164mA
