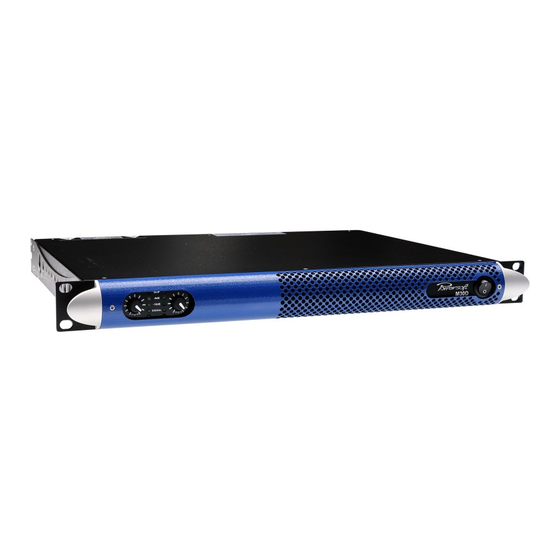

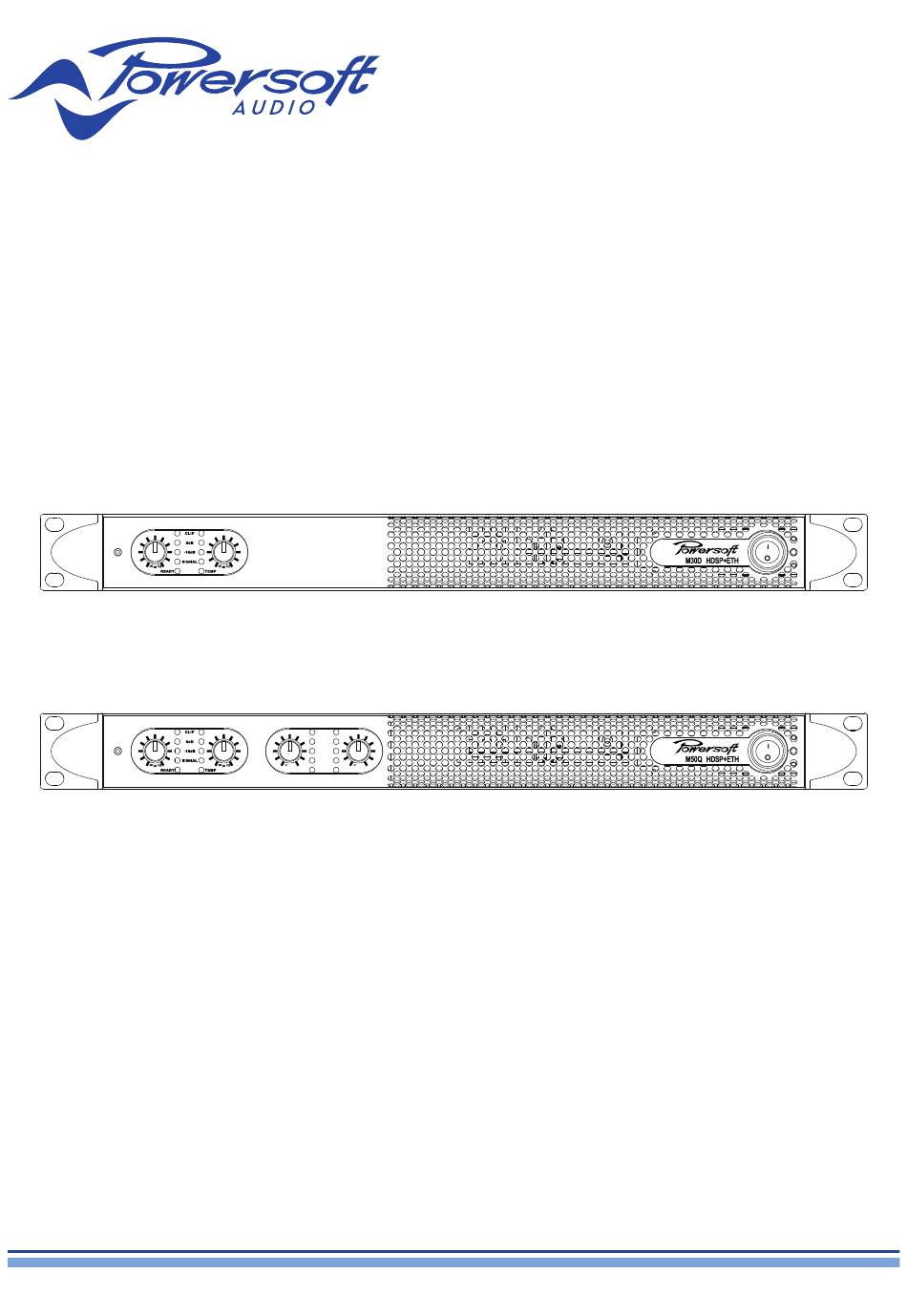

- Page 1 M Series M30D / M30D HDSP+ETH M20D / M20D HDSP+ETH M14D / M14D HDSP+ETH M50Q / M50Q HDSP+ETH M28Q / M28Q HDSP+ETH CLIP -18dB SIGNAL READY TEMP Service Manual ©2016 Powersoft Keep this manual powersoft_MSERIES_servman_en_v3.7 for future reference...
- Page 2 Intentionally left blank...
- Page 3 11. Internal LED Check This technical document aims to be a support guide in repairing 12. VOID VQ Lantronix Device Initialization and low-voltage testing the M Series power amplifiers. 13. Repair Kit List The troubleshooting approach will help you characterize the kind 14.
- Page 4 M SERIES | SERVICE MANUAL 1. Service Repairing Kit: M & Q MAINS DC CABLE DigiMod 500 - 3000 AMP AUX VOLTAGE CABLE CB000583.R CB000691.R PSU AUX VOLTAGE CABLE CB000586.R...
-
Page 5: Opening The Amplifier Cover
M SERIES | SERVICE MANUAL 2. Opening the amplifier cover: Disconnect the amplifier from the mains. If the amplifier has been connected to the mains in the last few minutes, please proceed with attention as the internal capacitors bank could be charged and harmful! (Fig. - Page 6 M SERIES | SERVICE MANUAL 3. Discharging the internal capacitors bank: Before proceeding in operating inside the amplifier, check if the rails are completely discharged: LEDs in (Fig. 3) the should be off; this should happen about 15 minutes after the amplifier has been switched off and disconnected from the mains.
-
Page 7: Troubleshooting
M SERIES | SERVICE MANUAL 4. Troubleshooting: Power supply: It is now possible to perform a quick troubleshooting procedure common to most of our products. With the multimeter set to Ohm, check for continuity in all the fuses portrayed in (Fig. 5). -
Page 8: Removing The Mainboard
M SERIES | SERVICE MANUAL Amp stage: With a multimeter set to Ohm test for any faults in the Amp stage mosfets. Although it is possible to fit the probes in the gap between the heatsink and the capacitors (Fig. 8) feel free to remove as many sping retainers as needed in order to access the Mosfets more confortably. - Page 9 M SERIES | SERVICE MANUAL Remove the rear panel by unscrewing the screws highlighted in (Fig. 12) (Fig. 12) Once the rear panel is removed, lift the top metal frame as portrayed in (Fig. 13) (Fig. 13) The following picture (Fig. 14) portrays the location of all 12 screws that need to be removed in order to free the board from the main chassis.
-
Page 10: Removing The Fan
M SERIES | SERVICE MANUAL This done, it is now time to remove the 4 outmost hex screws lacated on the heatsink and highlighted in (Fig. (Fig. 15) It is now possible to remove the board from the amplifier’s chassis. Lift the board from the connector’s side and gently pull it paying attention not to damage any of the components. -
Page 11: Removing The Front Panel
M SERIES | SERVICE MANUAL 7. Removing the front panel: Before removing the front panel, make sure the power supply capacitors have been discharged as explained in chapter Begin by removing the connector that connects the amplifier power switch highlighted in (Fig. 19) (Fig. - Page 12 M SERIES | SERVICE MANUAL In order to remove the front panel protection grille unscrew the two screws marked in (Fig. 23) (Fig. 23) (Fig. 24) portrayes the front panel and its protection grille removed from the chassis. (Fig. 24)
-
Page 13: Removing The Heatsink
M SERIES | SERVICE MANUAL 8. Removing the heatsink: Once the main board has been removed from the amplifier chassis as described in chapter 5, if necessary it is possible to remove the heatsink in order to gain access to the components placed underneath. - Page 14 M SERIES | SERVICE MANUAL Cleaning the Heatsink: Peel off the SilPad from both sides of the heatsink Using a plastic scraper, remove the leftover glue Dampen a clean cloth with some isopropyl alcohol and wipe off the excess residues.
-
Page 15: Changing The Operating Voltage
M SERIES | SERVICE MANUAL 9. Changing the operating voltage: M Series has an internal jumper with a Faston to change the operating voltage from 115V to 230V. (Fig. 29) (Fig. 29) Move the faston to change the operating voltage as indicated on the PCB as portrayed in (Fig. - Page 16 M SERIES | SERVICE MANUAL 10. Testing the Main Board: (Fig. 33) With of a multimeter set to Ohm, check the fuse highlighted on (Fig. 32), as portrayed in (Fig. 33). Ω (Fig. 34) By means of the PSU AUX VOLTAGE CABLE...
- Page 17 M SERIES | SERVICE MANUAL Check the Q1, Q2 gates highlighted on (Fig. 36) by means of an oscilloscope. The following pictures (Fig. 37, 38) portray a more detailed view of the setup and the waves that must appear on the (Fig.
- Page 18 Ohm between all the fuses and all the resistors, as portrayed in (Fig. 40) If a short circuit is found, or the fuses are in fault please ask for the M SERIES 1 CH KIT, matching the model of the Amp to be repaired: KT000846.R KIT MD754 M14D - AMP 1CH KT000847.R...
- Page 19 M SERIES | SERVICE MANUAL By means of the DigiMod 500 - 3000 AUX VOLTAGE CABLE connect a DC power supply to the CN2 connector highlighted in (Fig. 41). (Fig. 41) Slowly increase the voltage to 18V and check the absorption, it should be around: 1.15A...
- Page 20 M28Q SMD00757.R SM000687.R (Table 1) If any of the aforementioned tests fail please ask for the M SERIES 1 CH KIT, matching the model of the Amp to be repaired: KT000846.R KIT MD754 M14D - AMP 1CH KT000847.R KIT MD755 M20D - AMP 1CH KT000848.R...
- Page 21 M SERIES | SERVICE MANUAL Highlighted in (Fig. 45) is the position of the J5 connector. (Fig. 45) In order to check the Fan connect the amp to the Mains and short the two poles of the J5 connector as portrayed in (Fig.
- Page 22 M SERIES | SERVICE MANUAL 11. Internal LEDs check: The following picture (Fig. 47) portrays the position of all the check LEDs. V AUX V AUX V AUX PSU V AUX PSU V RAIL V RAIL (Fig. 47) FAULT CH1/2...
- Page 23 M SERIES | SERVICE MANUAL 12. VOID VQ Lantronix Device Initialization Using this procedure you will be able to do: 1. Lantronix setup 2. Device initialiation 3. Firmware update 4. Configuration setting 5. Default preset installtion HOW TO PROCEED Connect the amplifier to your PC via ethernet Install and open “Product Manager”software...
- Page 24 M SERIES | SERVICE MANUAL The following window will be shown. Select the correct network interface and click on “Next” The following window will be shown. Enter the Serial number and click on “Next” to start the procedure. Check if led on the ethernet port of the amplifier start to blink. Otherwise it’s possible there is a hardware problem.
- Page 25 M SERIES | SERVICE MANUAL 13. Repair KIT list: KT000845.R KT000846.R KIT MD&MQ PSU KIT MD 754 - AMP 1CH KT000847.R KT000848.R KIT MD755 - AMP 1CH KIT MD756 - AMP 1CH KT000849.R KT000850.R KIT MQ757 - AMP 1CH KIT MQ751 - AMP 1CH...
- Page 26 SM000737.R M Series Rem Rear SM000738.R M Series Front Board (Display) SM000733.R Martin Audio Front Board (Display) SM000735.R SM000733.R SM000737.R SM000738.R SM000735.R (Martin Audio) *When Ordering, inform the Powersoft Customer Care about Product Serial Number and Amp Model for customization.
-
Page 27: Mechanical Parts
M SERIES | SERVICE MANUAL 15. Mechanical Parts Location Part No. Q.ty ME000500 ME000444 ME000447 ME000446 ME000284 ME000501 ME000445 ME000443 FI000023 ME000522 ME000523 ME000268 CS000274 ME000213 ME000504 ME000441 ME000444 VI000137 ME000520 ME000521 Power Cord CV000028 M-Series - EU CV000037 M-Series - Japan, US, Taiwan, Canada, Brazil... -
Page 28: Safety Precautions
M SERIES | SERVICE MANUAL IMPORTANT SAFETY ADDENDUM The aim of this addendum is to describe the safety precautions to be undertaken when servicing any Powersoft amplifier/module. WE RECOMMEND THAT ALL SERVICE OPERATIONS ARE CARRIED OUT BY A TRAINED TECHNICIAN IF NOT EXPLICITLY STATED OTHERWISE, DISCONNECT THE AMPLIFIER FROM THE MAINS. - Page 29 Intentionally left blank...
- Page 30 Tel: +39 055 735 0230 Fax: +39 055 735 6235 General inquiries: info@powersoft.it Sales: sales@powersoft.it Application & technical support: support@powersoft.it Service & maintenance: service@powersoft.it powersoft-audio.com Data are subject to change without notice. For latest update please refer to the online version available on www.powersoft-audio.com...
