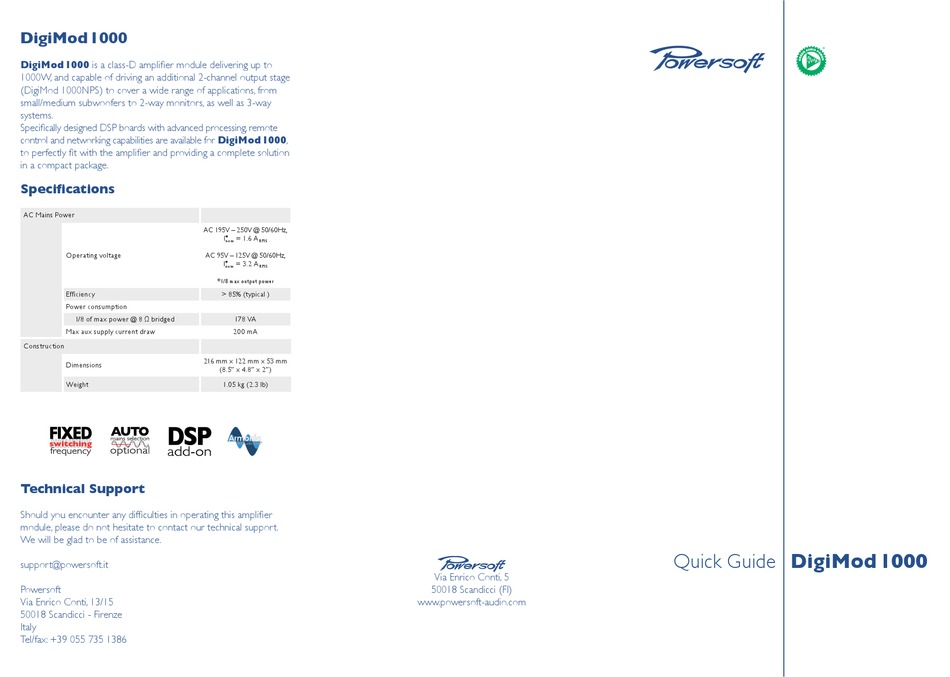

powersoft DigiMod 1000 Quick Manual

DigiMod 1000

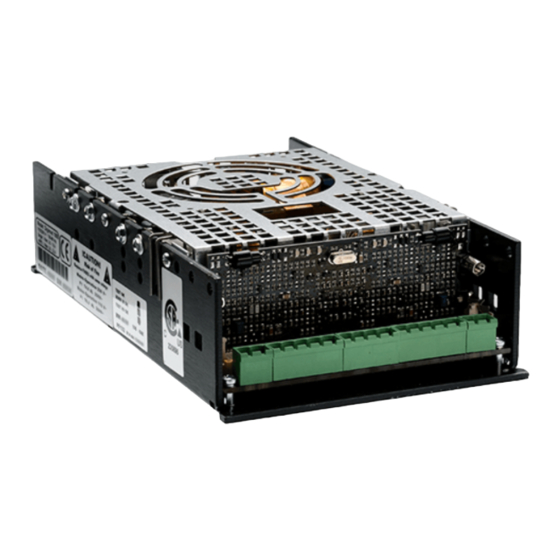

DigiMod 1000 is a class-D amplifier module delivering up to
1000W, and capable of driving an additional 2-channel output stage
(DigiMod 1000NPS) to cover a wide range of applications, from
small/medium subwoofers to 2-way monitors, as well as 3-way
systems.
Specifically designed DSP boards with advanced processing, remote
control and networking capabilities are available for DigiMod 1000,
to perfectly fit with the amplifier and providing a complete solution
in a compact package.

Specifications

AC Mains Power
Operating voltage
Efficiency
Power consumption
I/8 of max power @ 8 � bridged
Max aux supply current draw
Construction
Dimensions
Weight

Technical Support

Should you encounter any difficulties in operating this amplifier
module, please do not hesitate to contact our technical support.
We will be glad to be of assistance.
support@powersoft.it
Powersoft
Via Enrico Conti, 13/15
50018 Scandicci - Firenze
Italy
Tel/fax: +39 055 735 1386
AC 195V – 250V @ 50/60Hz,
I = 1.6 A
*
nom RMS
AC 95V – 125V @ 50/60Hz,
I * = 3.2 A
nom RMS
*
1/8 max output power
> 85% (typical )
178 VA
200 mA
216 mm x 122 mm x 53 mm
(8.5" x 4.8" x 2")
1.05 kg (2.3 lb)
Via Enrico Conti, 5
50018 Scandicci (FI)
www.powersoft-audio.com
®
Quick Guide DigiMod 1000
