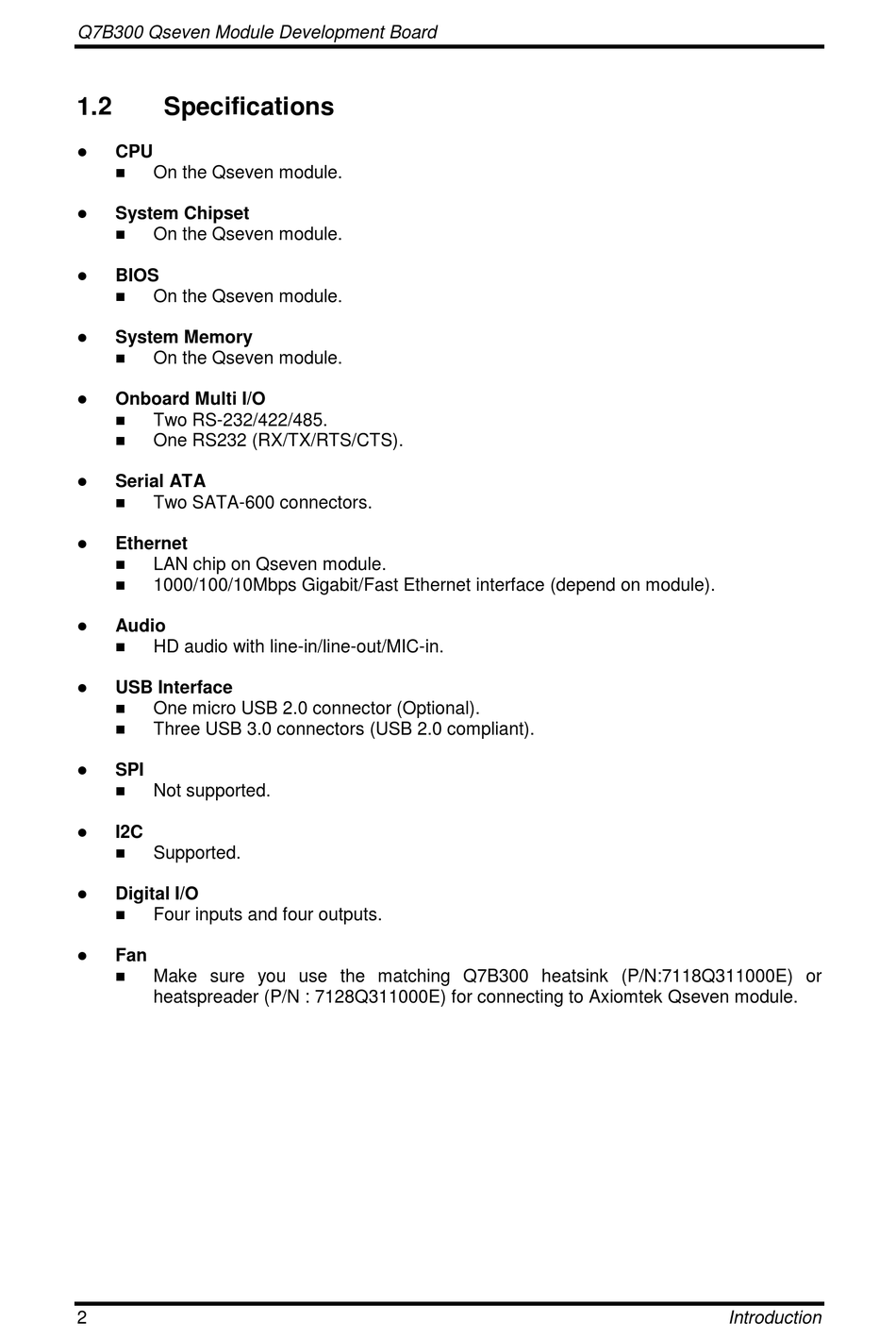

Specifications

 CPU
 On the Qseven module.

System Chipset
 On the Qseven module.
 BIOS
 On the Qseven module.
 System Memory
 On the Qseven module.
 Onboard Multi I/O

Two RS-232/422/485.
 One RS232 (RX/TX/RTS/CTS).
 Serial ATA
 Two SATA-600 connectors.
 Ethernet
 LAN chip on Qseven module.
 1000/100/10Mbps Gigabit/Fast Ethernet interface (depend on module).
 Audio
 HD audio with line-in/line-out/MIC-in.
 USB Interface
 One micro USB 2.0 connector (Optional).
 Three USB 3.0 connectors (USB 2.0 compliant).
 SPI

Not supported.
 I2C
 Supported.
 Digital I/O

Four inputs and four outputs.
 Fan
 Make sure you use the matching Q7B300 heatsink (P/N:7118Q311000E) or
heatspreader (P/N : 7128Q311000E) for connecting to Axiomtek Qseven module.
