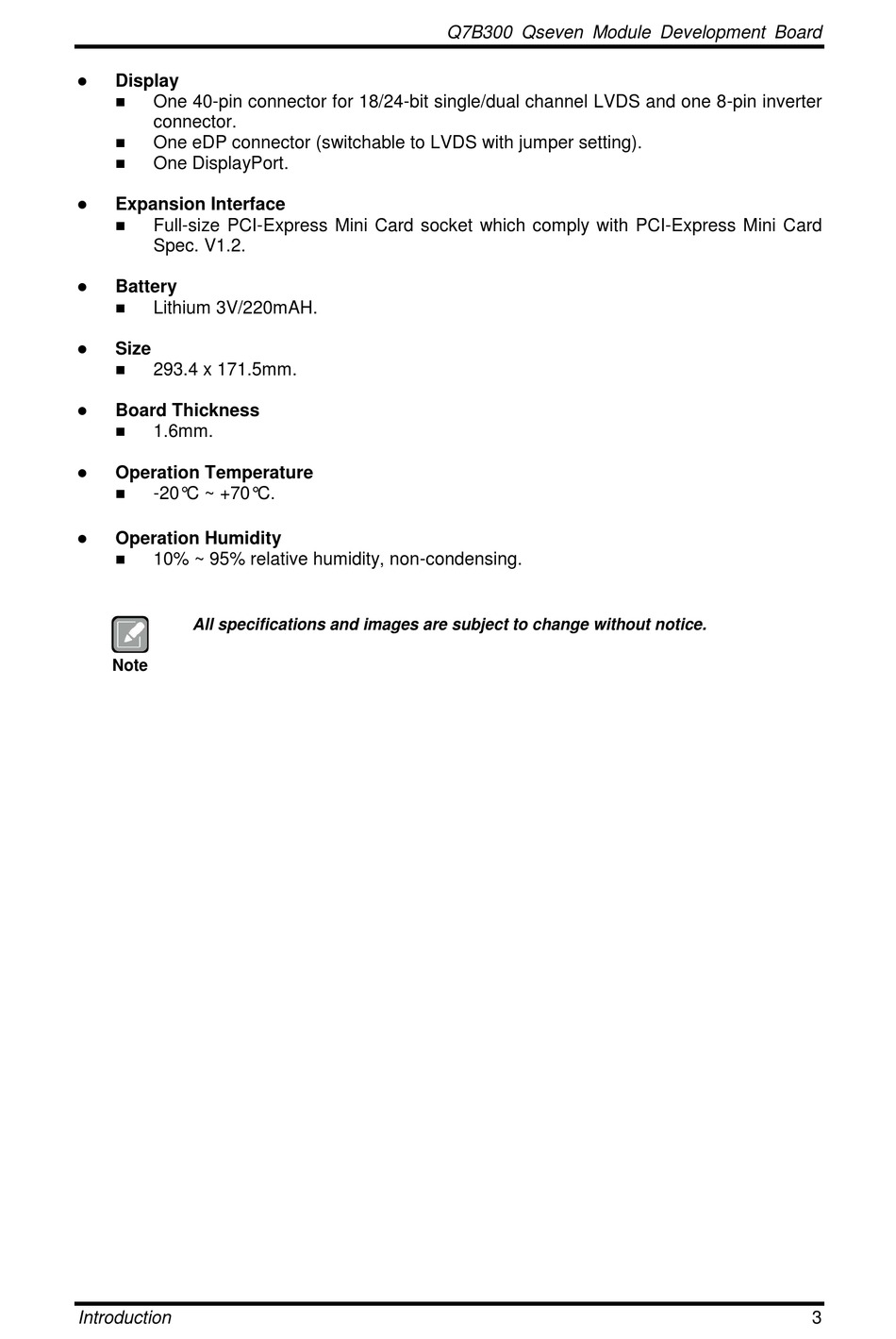

 Display
 One 40-pin connector for 18/24-bit single/dual channel LVDS and one 8-pin inverter
connector.

One eDP connector (switchable to LVDS with jumper setting).
 One DisplayPort.
 Expansion Interface
 Full-size PCI-Express Mini Card socket which comply with PCI-Express Mini Card
Spec. V1.2.
 Battery
 Lithium 3V/220mAH.
 Size
 293.4 x 171.5mm.
 Board Thickness

1.6mm.
 Operation Temperature
 -20°C ~ +70°C.
 Operation Humidity
 10% ~ 95% relative humidity, non-condensing.
All specifications and images are subject to change without notice.
