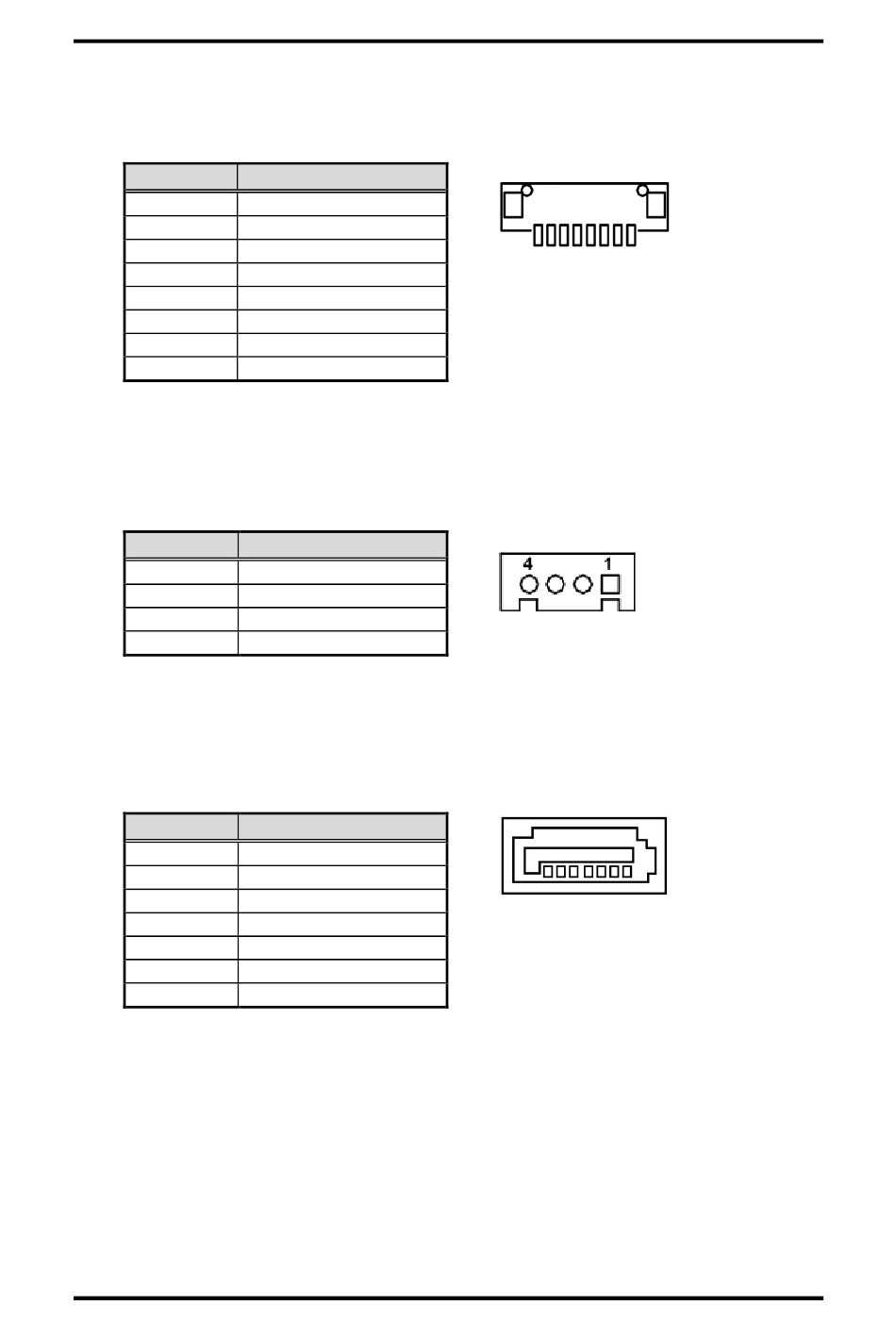

2.5.10
Inverter Connector (CN12)
The CN12 is an 8-pin connector for LVDS inverter interface. We strongly recommend
you to use the matching DF13-8S-1.25C connector to avoid malfunction.
Pin
1
2
3
4
5
6
7
8
2.5.11
SATA Power Connector (CN13)
This is a 4-pin connector for interfacing to SATA 2.5" and SATA 3.5" HDD power supply
which also could supply dual HDD.
Pin
1
2
3
4
2.5.12
SATA Connectors (CN19 and CN21)
The Serial Advanced Technology Attachment (Serial ATA or SATA) connector is
computer bus interface for connecting to devices such as hard disk drive.
Pin
1
2
3
4
5
6
7
Board and Pin Assignments
Signal
VBL1 (+12V )
VBL1 (+12V )
VBL2 (+5V )
LVDS_BLEN
GND
GND
GND
LVDS_BLT_CTRL
Signal
+12V
GND
GND
+5V
Signal
GND
SATA_TX+
SATA_TX-
GND
SATA_RX-
SATA_RX+
GND
Q7B300 Qseven Module Development Board
8
7
1
1
19
