2.5.2

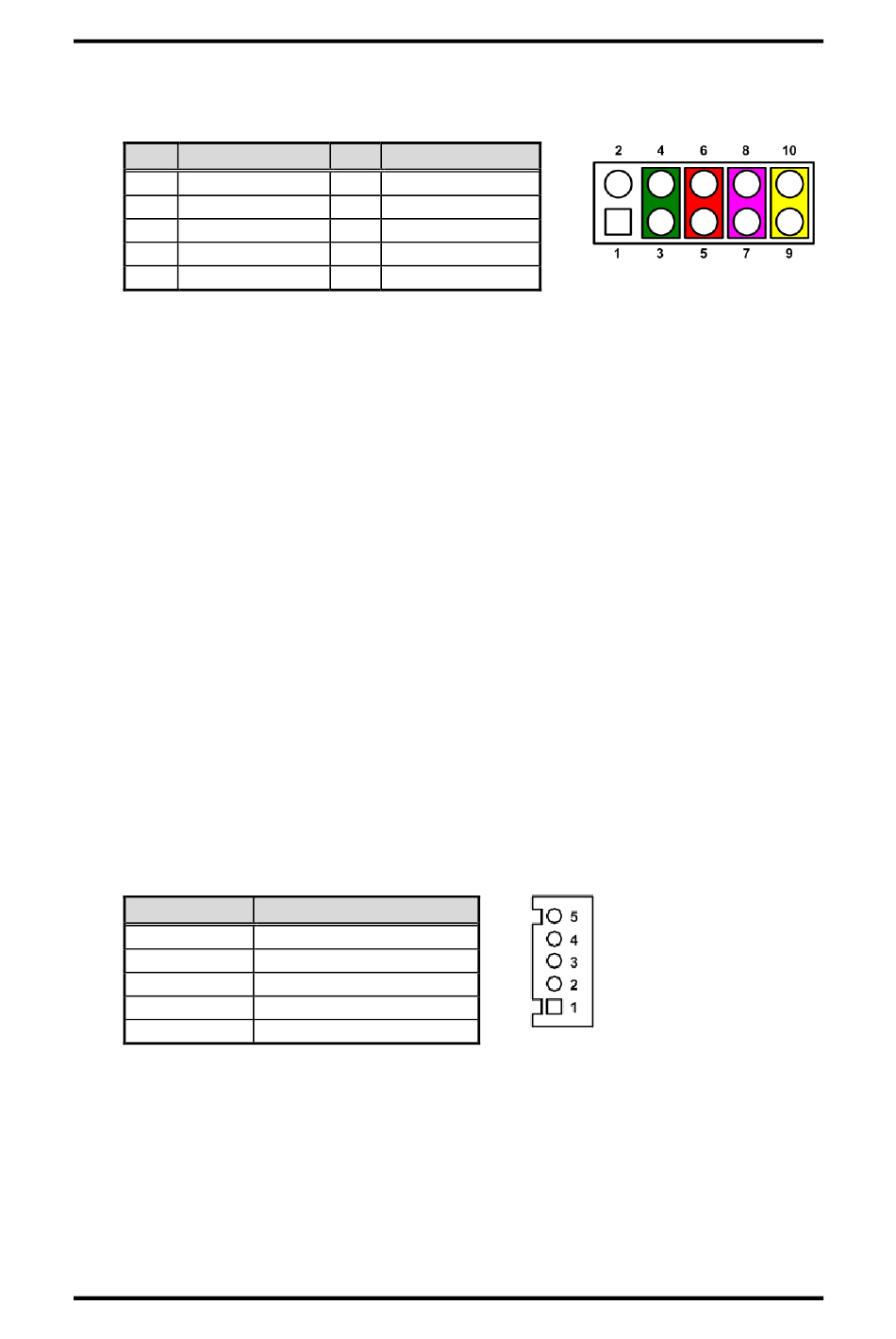

Front Panel Connector (CN2)

The CN2 is a 2x5-pin connector for front panel interface.
Pin Signal
1 GND
3 PWRLED-
5 PWRSW-
7 HW RST-
9 HDDLED-
ATX Power Supply ON
Short pin 1 and pin 2, ATX power supply is forcing to turn on state. Otherwise, system
will control ATX power supply state.
Power LED
Pin 4 connects anode(+) of LED and pin 3 connects cathode(-) of LED. The power LED
lights up when the system is powered on.
Power On/Off Button
Pin 5 and 6 connect the power button on front panel to the CPU board, which allows
users to turn on or off power supply.
System Reset Switch
Pin 7 and 8 connect the case-mounted reset switch that reboots your computer without
turning off the power switch. It is a better way to reboot your system for a longer life of
system power supply.
HDD Activity LED
This connection is linked to hard drive activity LED on the control panel. LED flashes
when HDD is being accessed. Pin 9 and 10 connect the hard disk drive to the front panel
HDD LED, pin 9 is assigned as cathode(-) and pin 10 is assigned as anode(+).
2.5.3

SMBus Connector (CN4)

The CN4 is a 5-pin connector for SMBus interface. The SMBus (System Management
Bus) is a simple bus for the purpose of lightweight communication.
Pin
1
2
3
4
5
14
Pin Signal
2 ATX_PSON#
4 PWRLED+
6 PWRSW+
8 HW RST+
10 HDDLED+
Signal
+3.3V
SMB_CLK
SMB_DATA
SMB_ALERT
GND
Board and Pin Assignments
