2.5.4

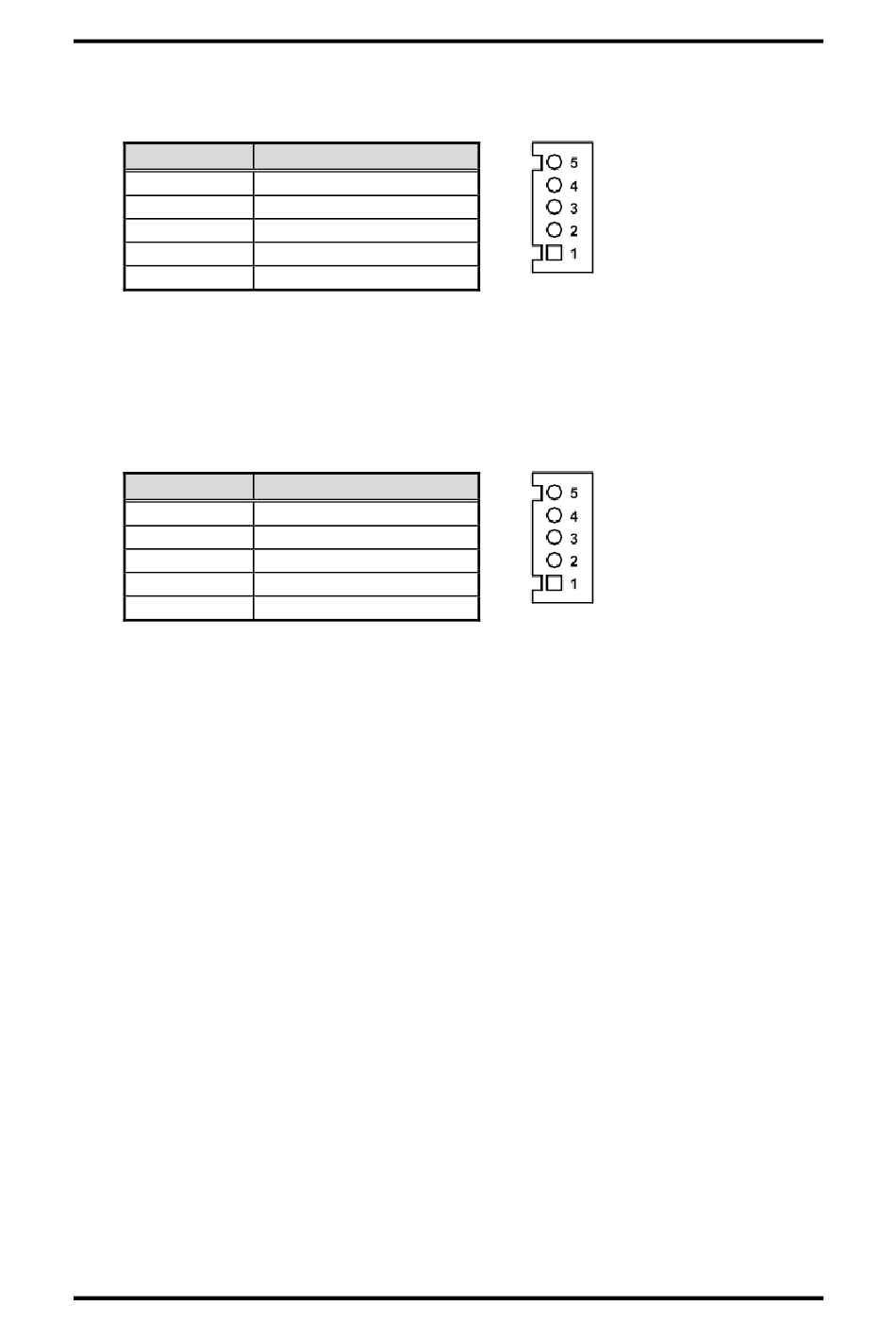

I2C Connector (CN5)
The CN5 is a 5-pin connector for I2C interface.
Pin
1
2
3
4
5
2.5.5
CAN Connector (CN6)
The CN6 is a 5-pin connector for CAN interface. Controller Area Network (CAN or
CAN-bus) is a message based protocol designed specifically for automotive applications
but now is also used in other areas such as industrial automation and medical
equipment.
Pin
1
2
3
4
5
Board and Pin Assignments
Signal
+3.3V
I2C_CLK
I2C_DATA
NC
GND
Signal
+3.3V
CAN_TX(CMOS 3.3V)
CAN_RX(CMOS 3.3V)
NC
GND
Q7B300 Qseven Module Development Board
15
