2.4.1

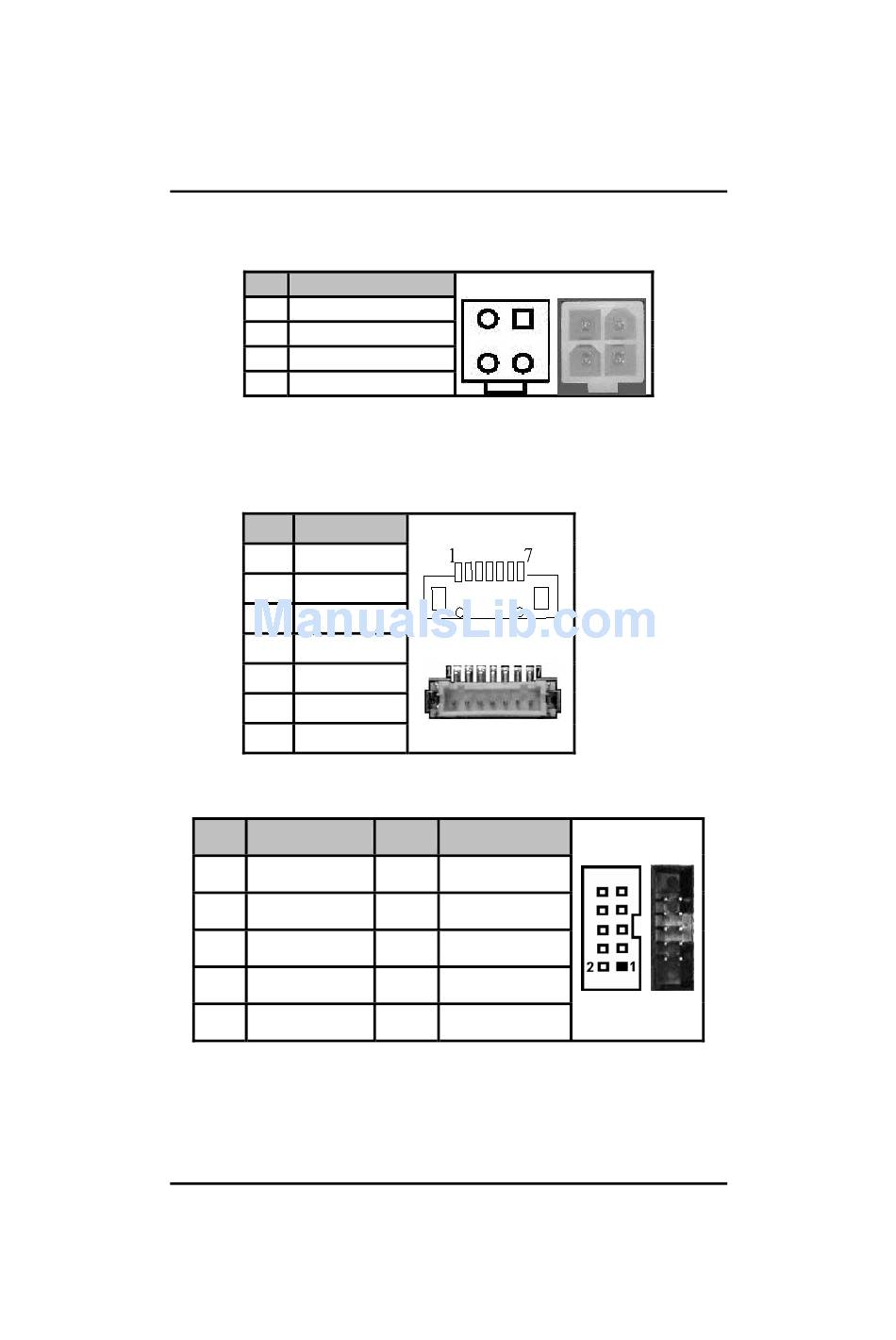

ATX 4 Pin 12V Connector (ATX1)

Connect it to the power supply ATX12V power.
Pin
1
2
3
4
2.4.2

LVDS Backlight Connector (CN1)

The CN1 is DF13-7S-1.25C 7-pin connectors for inverter, We strongly
recommend you to use the matching DF13-7S-1.25C connector.
Pin Signal
1 +12V
2 +12V
3 +5V
4 ENABLE
5 GND
6 GND
7 GND
2.4.3

Audio Phone Jack Connector (CN2)

Pin Signal
1 MIC_IN
3 LINE_IN_L
5 LINE_IN_R
7 AUDIO_OUT_L
9 AUDIO_OUT_R
JUMPERS AND CONNECTORS
SBC84833 Series All-In-One Capa Board User's Manual
Signal
GND
GND
+12V
+12V
Pin Signal
2 Ground (GND)
4
Ground (GND)
6
Ground (GND)
8
Ground (GND)
10
Ground (GND)
2 1
21
