CAPA110/111 AMD Embedded G-Series Processor Capa Board with LVDS
2.4.1

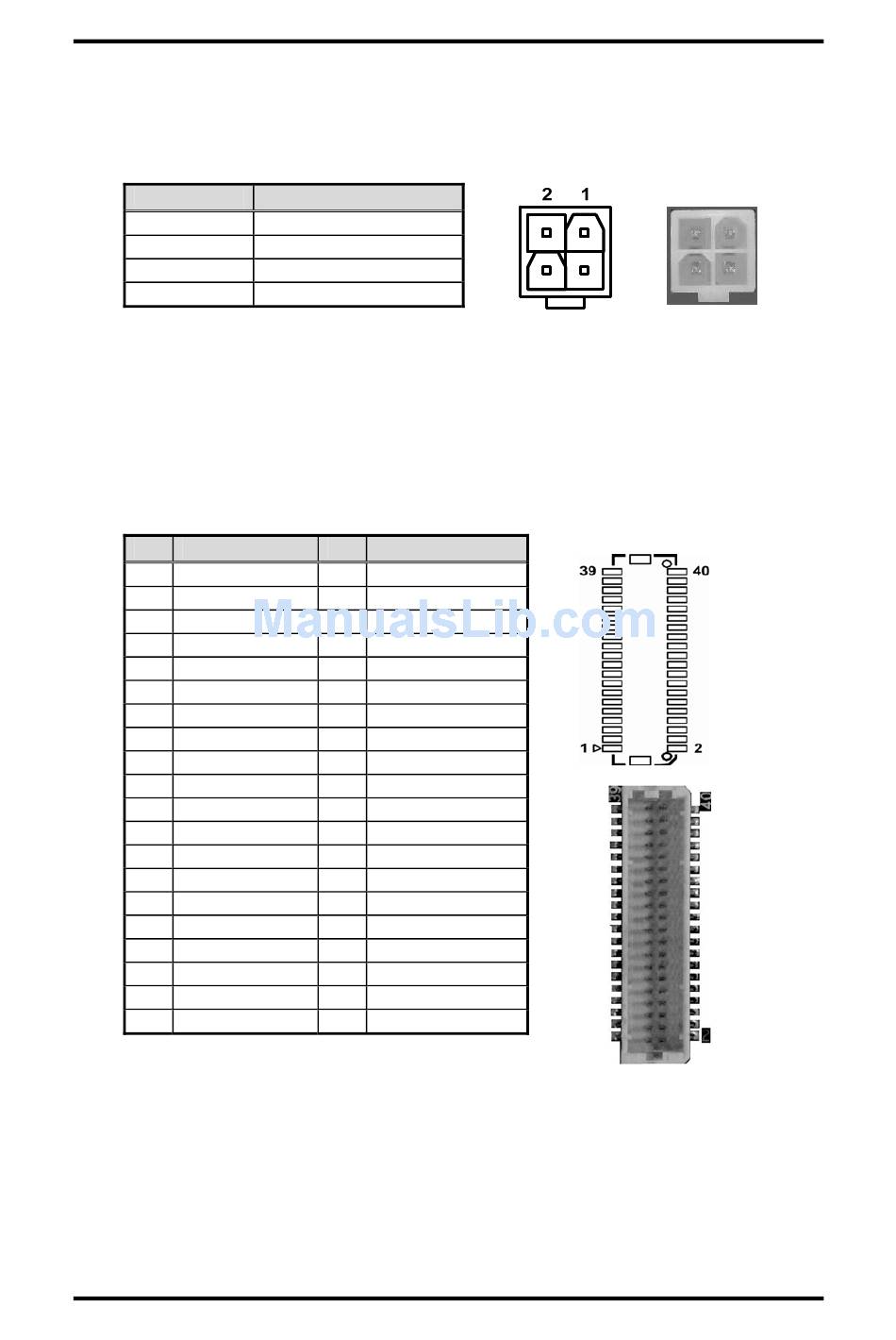

Power Connector (ATX1)

The ATX1 is a 4-pin power supply interface. External power supply plug fits into ATX1 in
only one orientation. Properly press down power supply plug until it completely and
firmly fits into this connector. Loose connection may cause system instability.
Pin
1
2
3
4
2.4.2

LVDS Connector (CN1)

This board has a 40-pin connector CN1 for LVDS LCD interface. It is strongly
recommended to use the matching JST SHDR-40VS-B 40-pin connector for LVDS
interface. Pin 1~6 VCCM can be set to +3.3V level or +5V level by JP2 (see section
2.3.2).
18bits single channel
Pin Signal
1 VCCM
3 VCCM
5 VCCM
7 N.C.
9 GND
11 N.C.
13 N.C.
15 GND
17 N.C.
19 N.C.
21 GND
23 Channel A D0-
25 Channel A D0+
27 GND
29 Channel A D1-
31 Channel A D1+
33 GND
35 Channel A D2-
37 Channel A D2+
39 GND
14
Signal
GND
GND
+12V
+12V
Pin Signal
2 VCCM
4 VCCM
6 VCCM
8 N.C.
10 GND
12 N.C.
14 N.C.
16 GND
18 N.C.
20 N.C.
22 GND
24 N.C.
26 N.C.
28 GND
30 N.C.
32 N.C.
34 GND
36 Channel A CLK-
38 Channel A CLK+
40 GND
Board Layout and Pin Assignments
