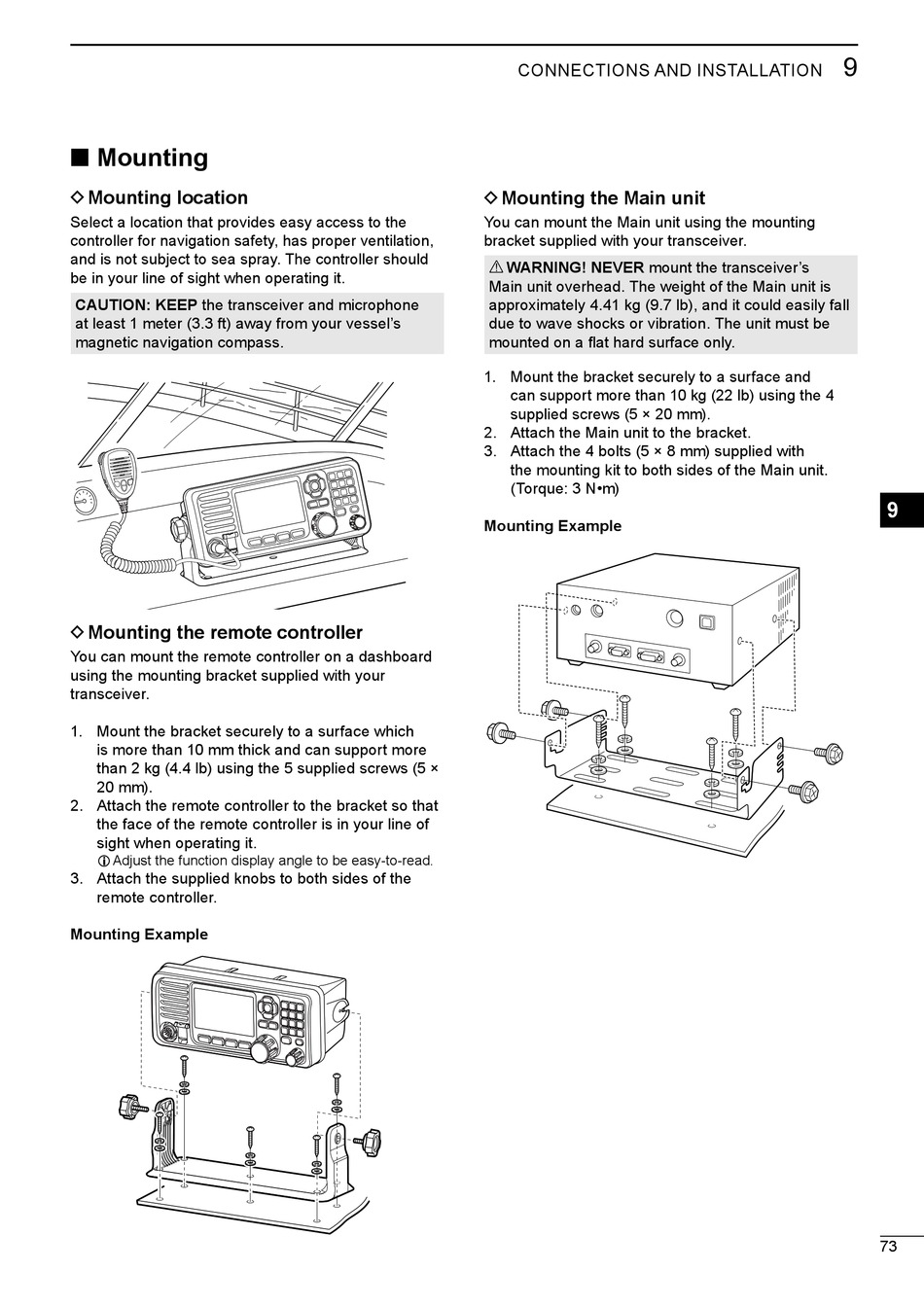

■ Mounting

D Mounting location

Select a location that provides easy access to the
controller for navigation safety, has proper ventilation,
and is not subject to sea spray. The controller should
be in your line of sight when operating it.
CAUTION: KEEP the transceiver and microphone
at least 1 meter (3.3 ft) away from your vessel's
magnetic navigation compass.

D Mounting the remote controller

You can mount the remote controller on a dashboard
using the mounting bracket supplied with your
transceiver.
1. Mount the bracket securely to a surface which
is more than 10 mm thick and can support more
than 2 kg (4.4 lb) using the 5 supplied screws (5 ×
20 mm).
2. Attach the remote controller to the bracket so that
the face of the remote controller is in your line of
sight when operating it.
L Adjust the function display angle to be easy-to-read.
3. Attach the supplied knobs to both sides of the
remote controller.
Mounting Example
CONNECTIONS AND INSTALLATION

D Mounting the Main unit

You can mount the Main unit using the mounting
bracket supplied with your transceiver.
R WARNING! NEVER mount the transceiver's
Main unit overhead. The weight of the Main unit is
approximately 4.41 kg (9.7 lb), and it could easily fall
due to wave shocks or vibration. The unit must be
mounted on a flat hard surface only.
1. Mount the bracket securely to a surface and
can support more than 10 kg (22 lb) using the 4
supplied screws (5 × 20 mm).
2. Attach the Main unit to the bracket.
3. Attach the 4 bolts (5 × 8 mm) supplied with
the mounting kit to both sides of the Main unit.
(Torque: 3 N•m)
Mounting Example
