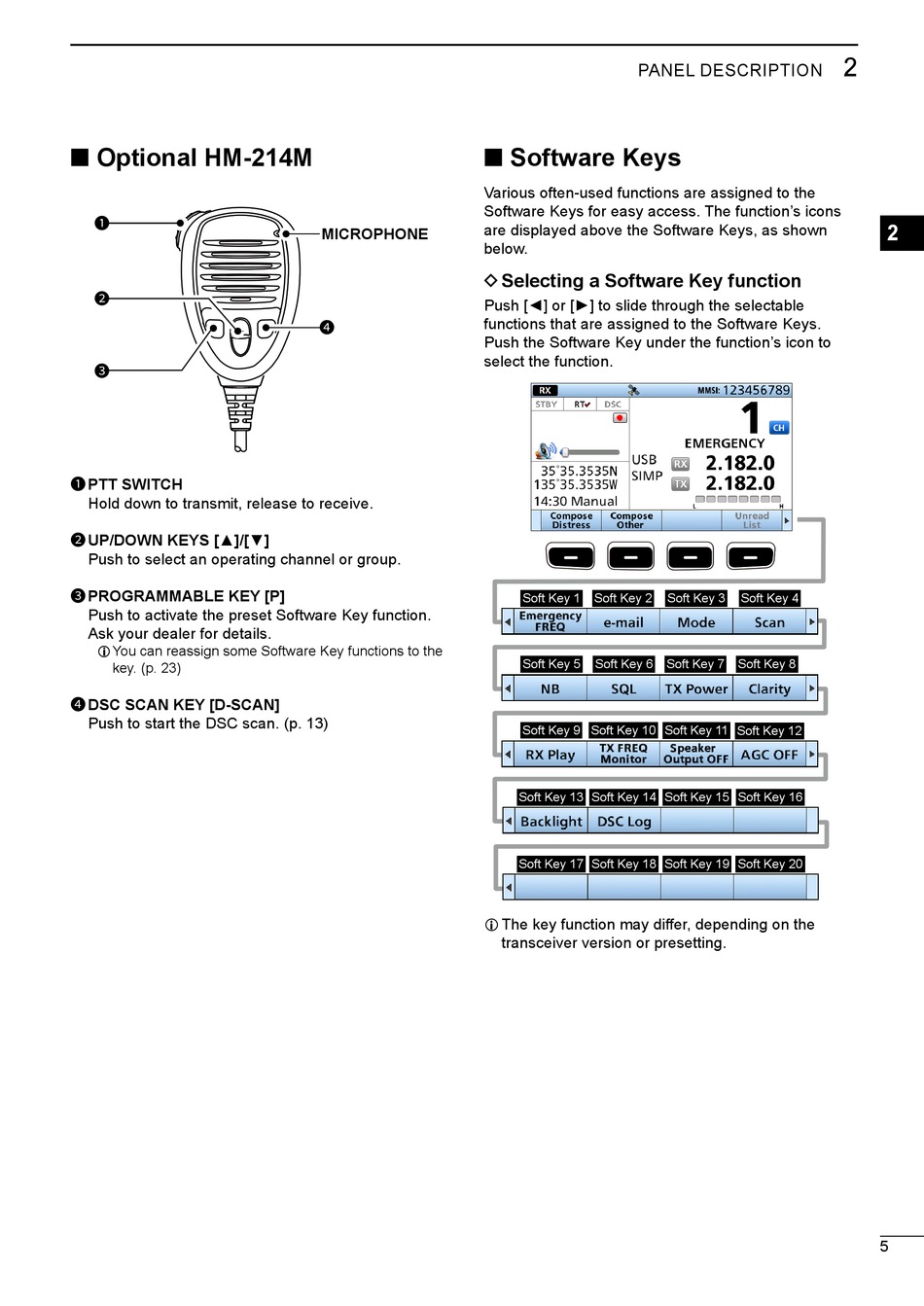

■ Optional HM-214M

1
2
3
1 PTT SWITCH
Hold down to transmit, release to receive.
2 UP/DOWN KEYS [▲]/[▼]
Push to select an operating channel or group.
3 PROGRAMMABLE KEY [P]
Push to activate the preset Software Key function.
Ask your dealer for details.
L You can reassign some Software Key functions to the
key. (p. 23)
4 DSC SCAN KEY [D-SCAN]
Push to start the DSC scan. (p. 13)

■ Software Keys

Various often-used functions are assigned to the
Software Keys for easy access. The function's icons
are displayed above the Software Keys, as shown
MICROPHONE
below.

D Selecting a Software Key function

Push [◄] or [►] to slide through the selectable
functions that are assigned to the Software Keys.
4
Push the Software Key under the function's icon to
select the function.
L The key function may differ, depending on the
PANEL DESCRIPTION
Soft Key 1 Soft Key 2 Soft Key 3
Soft Key 5 Soft Key 6 Soft Key 7
Soft Key 9 Soft Key 10 Soft Key 11
Soft Key 13 Soft Key 14 Soft Key 15 Soft Key 16
Soft Key 17 Soft Key 18 Soft Key 19 Soft Key 20
transceiver version or presetting.
2
2
Soft Key 4
Soft Key 8
Soft Key 12
5
