Setting A Temporary Operating Frequency - Icom IC-M803 Instruction Manual

6
OTHER FUNCTIONS AND OPERATIONS

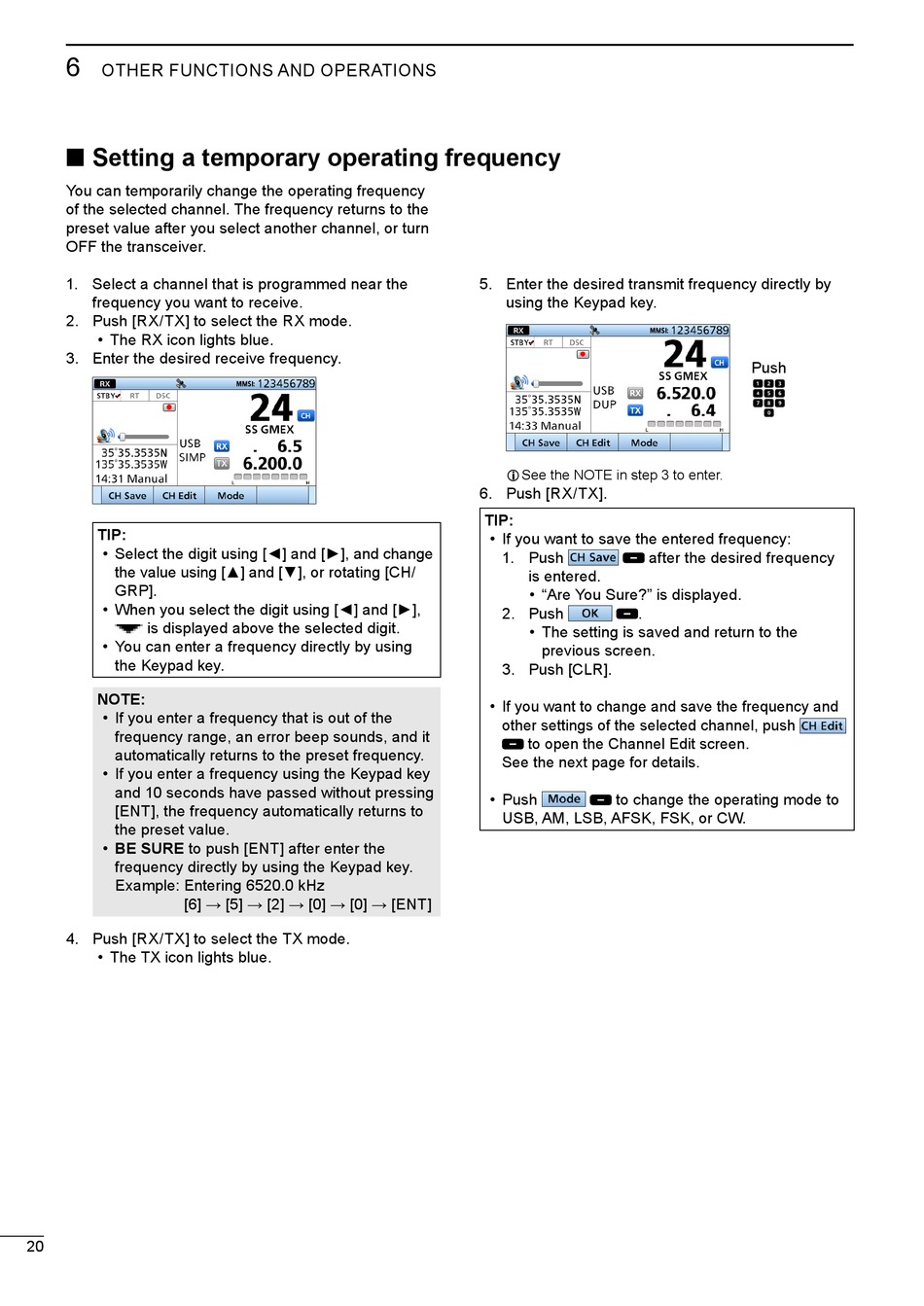

■ Setting a temporary operating frequency

You can temporarily change the operating frequency
of the selected channel. The frequency returns to the
preset value after you select another channel, or turn
OFF the transceiver.
1. Select a channel that is programmed near the
frequency you want to receive.
2. Push [RX/TX] to select the RX mode.
• The RX icon lights blue.
3. Enter the desired receive frequency.
TIP:
• Select the digit using [◄] and [►], and change
the value using [▲] and [▼], or rotating [CH/
GRP].
• When you select the digit using [◄] and [►],
is displayed above the selected digit.
• You can enter a frequency directly by using
the Keypad key.
NOTE:
• If you enter a frequency that is out of the
frequency range, an error beep sounds, and it
automatically returns to the preset frequency.
• If you enter a frequency using the Keypad key
and 10 seconds have passed without pressing
[ENT], the frequency automatically returns to
the preset value.
• BE SURE to push [ENT] after enter the
frequency directly by using the Keypad key.
Example: Entering 6520.0 kHz
[6] → [5] → [2] → [0] → [0] → [ENT]
4. Push [RX/TX] to select the TX mode.
• The TX icon lights blue.
20
5. Enter the desired transmit frequency directly by
using the Keypad key.
L See the NOTE in step 3 to enter.
6. Push [RX/TX].
TIP:
• If you want to save the entered frequency:
1. Push after the desired frequency
is entered.
• "Are You Sure?" is displayed.
2. Push .
• The setting is saved and return to the
previous screen.
3. Push [CLR].
• If you want to change and save the frequency and
other settings of the selected channel, push
to open the Channel Edit screen.
See the next page for details.
• Push to change the operating mode to
USB, AM, LSB, AFSK, FSK, or CW.
Push
