D DC power cable fuses

If a fuse blows, or the transceiver stops functioning,
find and repair the cause of the problem. Then replace
the damaged fuse with a new adequately rated fuse.
L Spare fuses are supplied with the transceiver.
The fuses are installed in the DC power cable and in
the inside circuitry, to protect the transceiver.
• DC power cable: ATC 30 A
• Circuitry unit: BFLP 5 A
R WARNING!
• Disconnect the DC power cable from the Main unit
before replacing the fuse.
• NEVER use fuses that are not specified.

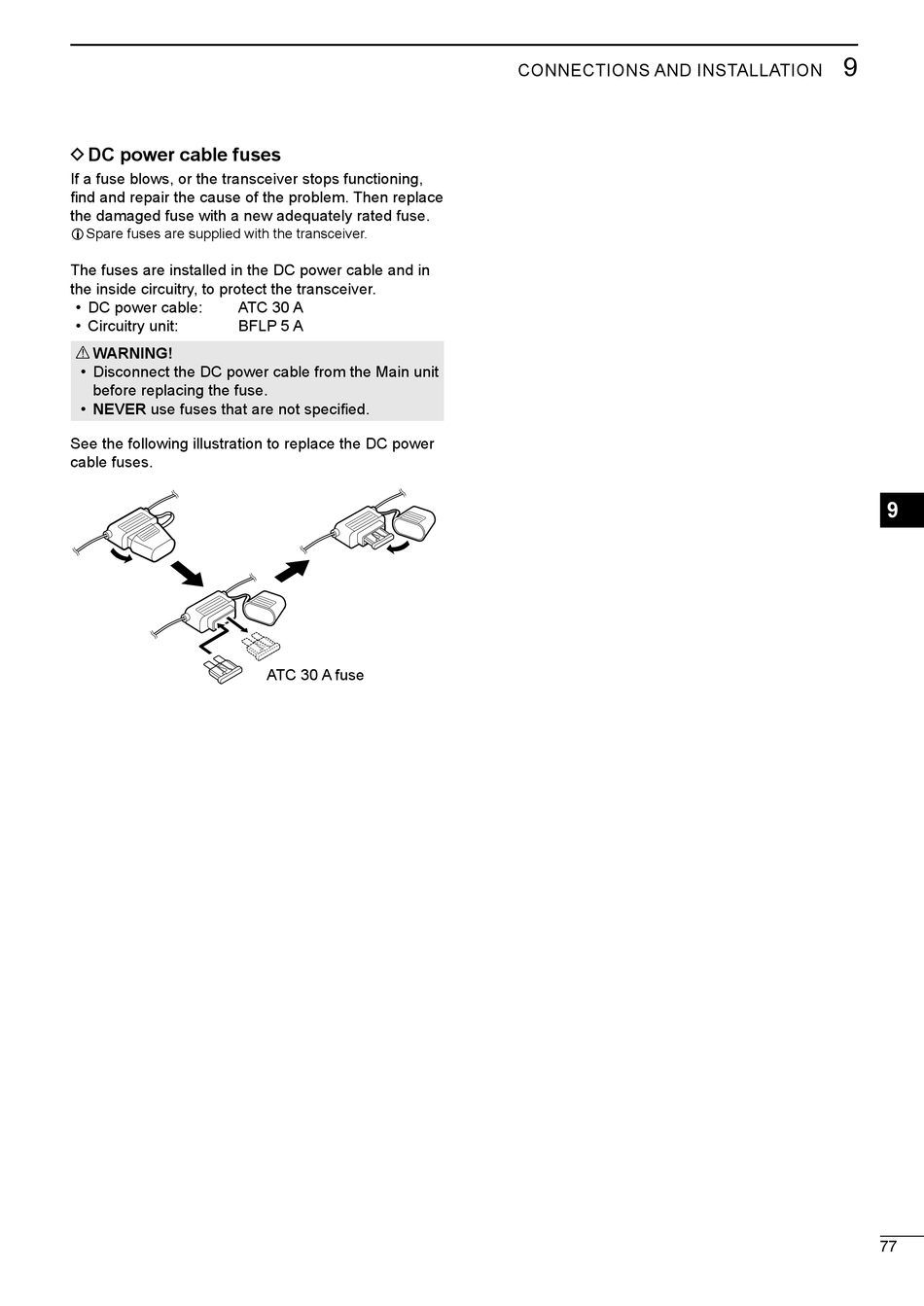

See the following illustration to replace the DC power
cable fuses.
ATC 30 A fuse
