AYC-W6500
Fingerprint, Pin & Prox
Convertible Reader/Controller
Installation and User Manual
June 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AYC-W6500 and is the answer not in the manual?

Questions and answers

Related Manuals for Rosslare AYC-W6500

Summary of Contents for Rosslare AYC-W6500

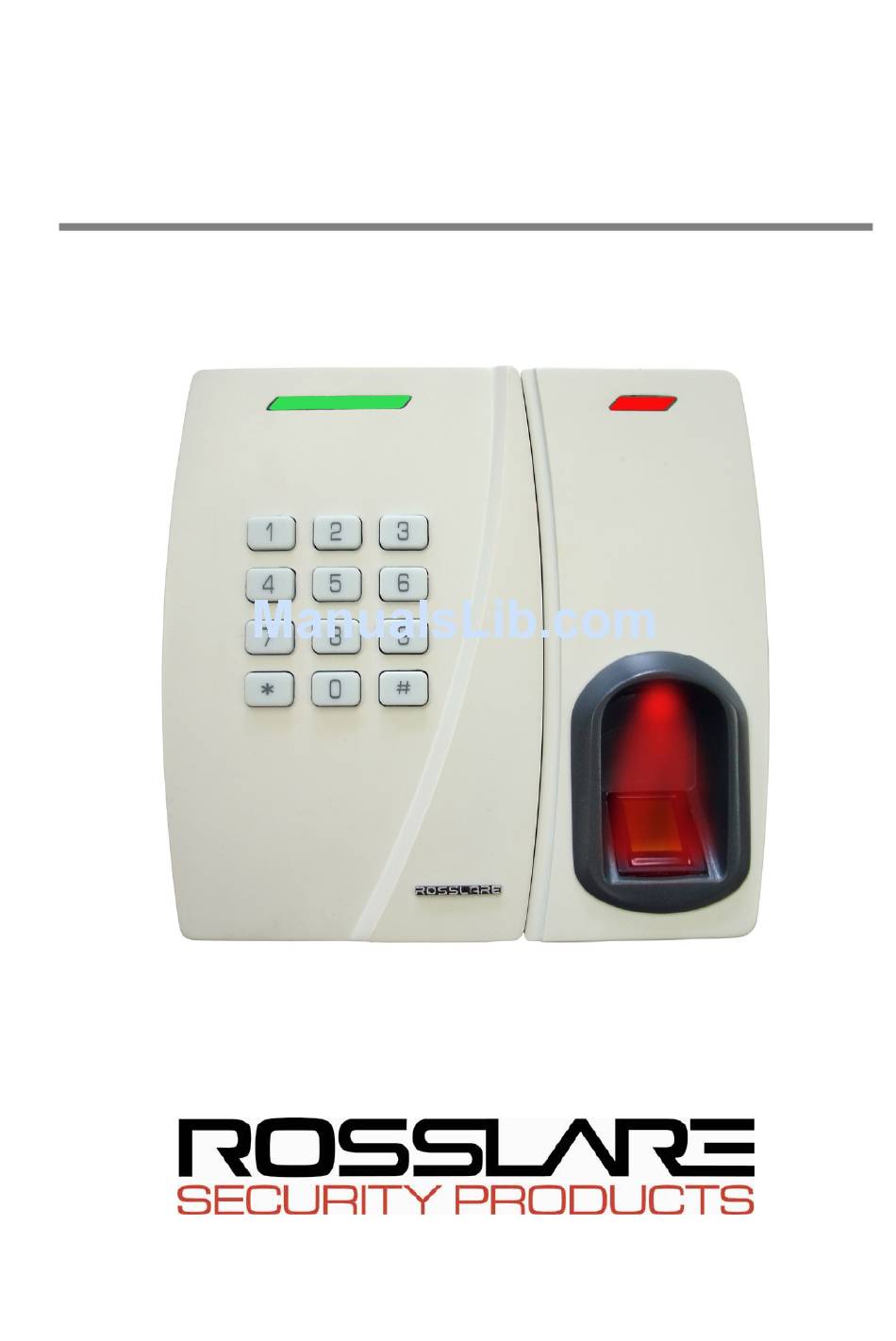

  • Page 1 AYC-W6500 Fingerprint, Pin & Prox Convertible Reader/Controller Installation and User Manual June 2006...

  • Page 3: Table Of Contents

    1.3 Box Content ................4 1.4 Ancillary Equipment.............4 2. Technical Specifications ..........5 2.1 Key Features .................6 3. Installation ..............8 3.1 Mounting the AYC-W6500 ..........8 4. Wiring Instructions .............9 5. Reader Functionality..........12 5.1 Modes of Operation ............12 5.2 Enrolling a Fingerprint............13 5.3 Programming the AYC-W6500 ..........14 6.

  • Page 4: General Information

    Reader Functionality on page 12. For information on how the unit functions as a controller, see Controller Functionality on page 28. The AYC-W6500 can optionally work with BioTrax software. For more information on BioTrax software see the BioTrax Software Manual.

  • Page 5: Reader/Controller Types

    General Information 1.2 Reader/Controller Types Upon power-on reset, the AYC-W6500 searches for the presence of the AC-C15T or PS-C15T power supply. If the power supply is detected, then the AYC-W6500 is automatically configured as a secure access control unit. Two short beeps (one second apart) are generated on power-on reset.

  • Page 6: Technical Specifications

    ASK at 125 KHz Proximity card compatibility EM cards Card Transmit format (Reader) 26-bit Wiegand, or Clock & Data Keypad 3 x 4 Key, Backlit Keypad Transmit Format Programmable PIN code formats (Reader) LED indicators Tri-colored LED Page 5 AYC-W6500 Installation Manual...

  • Page 7: Key Features

    Dimensions: 5.16" x 4.92" x 1.38" (131x125x35 mm) Weight: 270g (0.595lbs) *Measured using Rosslare proximity card (AT-14) or equivalent. Range also depends on the electrical environment and proximity to metal. 2.1 Key Features The key features for the AYC-W6500 are: •...
  • Page 8 • Comes with mounting template for easier installation • Comes with an installation kit that includes a security screw and a security screw tool Additional features for the AYC-W6500 series include the following: Reader • Programmable keypad transmission format •...

  • Page 9: Installation

    When the unit is used as a reader, route the interface cable from the AYC-W6500 to the controller. When the unit is used as a secured controller, route the interface cable from the AYC- W6500 to the AC-C15T or PS-C15T.

  • Page 10: Wiring Instructions

    If the tamper output is used, connect the purple wire to the correct input on the controller when used as reader, or to the zone input of an intruder alarm system when used as a controller. Trim and cover all unused conductors. Page 9 AYC-W6500 Installation Manual...
  • Page 11 AYC-W6500 Figure 2: Controller Application Wiring Diagram #1 Wiring diagram #2 (below) shows the door monitor and the tamper input to an external alarm system. Figure 3: Controller Application Wiring Diagram #2 AYC-W6500 Installation Manual Page 10...
  • Page 12 AYC-W6500 Figure 4: Controller Application Wiring Diagram #3 The wiring diagram #4 (below) shows the wiring for the reader application. Figure 5: Reader Application Wiring Diagram #3 Figure 6: PC Connection Using RS-232 Cable Page 11 AYC-W6500 Installation Manual...

  • Page 13: Reader Functionality

    Reader Functionality Reader Functionality The AYC-W6500 series can function both as a reader and as a controller. If the unit is connected to a standard access controller, it functions as a reader. This is indicated by one beep generated on resetting the unit.

  • Page 14: Enrolling A Fingerprint

    • You will hear three short beeps to indicate the fingerprint has been successfully enrolled. • If the fingerprint is not successfully enrolled, you will hear a long beep. Repeat the process from the beginning. Page 13 AYC-W6500 Installation Manual...

  • Page 15: Programming The Ayc-W6500

    During the AYC-W6500's manufacturing process certain codes and settings are pre-programmed. These settings are the called the "Default Factory Settings". The table below shows the names of all the AYC-W6500 Menus. Programming Menu Default Factory Settings are marked by a "*" sign.
  • Page 16 Indication LED turns orange and the AYC- Orange W6500 is in Programming Mode. Note: The factory default Programming Code is 1234. If a Programming Code is not entered within 60 seconds, the AYC-W6500 will return to Transmit Mode. Page 15 AYC-W6500 Installation Manual...
  • Page 17 You will hear three short beeps. • The Indication LED turns red. • This indicates that the AYC-W6500 has returned to Normal Access Mode. Selecting Keypad Transmission Format The AYC-W6500 has four different keypad transmission formats to select from. Follow the steps below to select the appropriate keypad transmission format that you wish to use.
  • Page 18 The PIN number range is 000000 to 999999 (0F423Fh) • PIN Code 4-8 Keys – Not a valid setting Option 1: Single Key, 6-Bit Wiegand (Rosslare Format) Transmission of 4 bits with 2 parity bits added occurs after fingerprint verification in several frames 50mSec apart, the...
  • Page 19 PIN Code 6 Keys 6 Wiegand 6 bit frames, 6 digits entered. • PIN Code 4-8 Keys 4 to 7 Wiegand 6 bit frames, 4-7 keys entered. Or, 8 Wiegand 6bits frames, 8 keys entered. AYC-W6500 Installation Manual Page 18...
  • Page 20 Or, 8 Wiegand 6bits frames, 8 keys entered. Selecting Proximity Card Transmission Format The AYC-W6500 has two proximity card transmission formats to select from. Follow the steps below to select the appropriate Proximity Card reader transmission format you wish to use.
  • Page 21 This code is used only by PIN codes that are transmitted in multiple keys formats. It is inserted in the MSB byte of the transmitted data, one bit following the leading parity bit. 1. Enter Programming Mode. 2. Press “5” to enter Menu 5. AYC-W6500 Installation Manual Page 20...
  • Page 22 The Third and Fourth Digits have no meaning for this option. 4. System returns to Normal Access Mode. • You will hear three beeps. Note: The default backlight setting is set to 5000, Backlight off Page 21 AYC-W6500 Installation Manual...
  • Page 23 The Code Search method is mainly used when enrolling a second card or PIN code and the user slot code is unknown. The Code Search method only works if a user was already assigned a code (Card or PIN) AYC-W6500 Installation Manual Page 22...
  • Page 24 3-digit slot number that you want to assign a code to. 5. If you do not wish to continue enrolling codes, press the “#” key twice and the controller will return to Normal Access Mode. Page 23 AYC-W6500 Installation Manual...
  • Page 25 4 or press “#” twice to exit programming mode. • If the Second ID is invalid a long beep is generated, and the AYC-W6500 will continue to wait for a valid ID to be entered. • If the Second ID is of the same type (PIN-PIN/Card-Card) a short beep is generated, and the AYC-W6500 will continue to wait for a valid ID to be entered.
  • Page 26 3. Enter the 3-digit User Slot codes you wish to delete. • If the User Slot is empty, you will hear a long beep and the AYC-W6500 is waiting for a different user slot number. • If the user slot exists, the indication LED will flash green.
  • Page 27 AYC-W6500 returns to Normal Access Mode. If the programming code is invalid, you will hear a long beep and the AYC-W6500 returns to Normal Access Mode. Note: It is recommended that a record be kept of added and deleted users so that it is be easier to keep track of which user slots are empty and which user slots are not.
  • Page 28 2. Activate tamper by removing the reader from the wall or removing the reader's case. 3. Apply power to the reader. 4. You have 10 seconds to enter Programming Mode using the factory default Programming Code 1234 Page 27 AYC-W6500 Installation Manual...

  • Page 29: Controller Functionality

    Controller Functionality Controller Functionality The AYC-W6500 can function both as a reader and as a controller. If the unit is connected to the AC-C15T or PS-C15T, it functions as a controller. This is indicated by two short beeps on power-on reset.

  • Page 30: Modes Of Operation

    Controller Functionality 6.2 Modes of Operation The AYC-W6500 has two modes of operation: Normal Mode • Indication LED is red. Normal Mode is the default mode. In Normal Mode the door is locked until a PIN code or card and the user’s finger is presented to the controller.

  • Page 31: Enrolling A Fingerprint

    • The finger LED flashes orange. Orange 3. Place the user’s finger on the sensor. • You will hear a short beep followed by an additional three short beeps. • The finger LED flashes red. AYC-W6500 Installation Manual Page 30...

  • Page 32: Auxiliary Input Functions

    For example, while in Secure mode, using the Test Codes to clear a tamper event does not work because the Test Codes do not work in Secure mode. However, applying a Secure Code will clear the tamper event in Secure mode. Page 31 AYC-W6500 Installation Manual...

  • Page 33: Request To Exit (Rex) Function

    AYC-W6500. They are designed to operate indoors and installed within the premises to be secured. The AYC-W6500 must be used with AC-C15T or PS-C15T, which provides its Lock output and Request to Exit (REX) Input. The PS- C15T provides Speaker Functions: Bell and Siren*.

  • Page 34: Programming The Ayc-W6500

    During the AYC-W6500's manufacturing process certain codes and settings are pre-programmed. These settings are the called the Default Factory Settings. The table below shows the names of all the AYC-W6500 Menus. It also shows of all the AYC-W6500’s default factory codes and settings.
  • Page 35 You will hear three short beeps. • The Indication LED turns red. • This indicates that the AYC-W6500 has returned to Normal Access Mode. Changing the Test Code The Test Code is mainly used as a method to quickly test the Lock output during installation.

  • Page 36: Access Mode

    Code 0000 will erase the Normal / Secure Code. • This code is disabled in case the Auxiliary Input is set to • toggle between Normal and Secure Access modes. The default Normal/Secure code is 3838 • Page 35 AYC-W6500 Installation Manual...
  • Page 37 The default value is 0004 which corresponds to Fail Secure operation, no siren, and 4-seconds Lock Output release time. Settings Alarms and Auxiliary The default auxiliary setting is 2004. 1. Enter Programming mode. 2. Press “6” to enter Menu 6. AYC-W6500 Installation Manual Page 36...
  • Page 38 Auxiliary Mode Auxiliary Setting Auxiliary Mode In addition to the Lock output and Lock REX, the AYC-W6500 features an Auxiliary Output and an Auxiliary Input. The Auxiliary Mode defines the function of the Auxiliary Input and Output. The Auxiliary Mode also determines if the Auxiliary Output is set for Fail Safe or Fail Secure Operation.
  • Page 39 “1” for always on “2” for 10 seconds backlight after a key is pressed The Third and Fourth Digits have no meaning for this option. 4. System returns to Normal Access Mode. • You will hear three beeps. AYC-W6500 Installation Manual Page 38...
  • Page 40 The Code Search method is mainly used when enrolling a second card or PIN code and the user slot code is unknown. The Code Search method only works if a user was already assigned a code (Card or PIN) Page 39 AYC-W6500 Installation Manual...
  • Page 41 Enrolling Cards and PIN Codes using the Code Search Method This is useful for detecting a User with one ID (card or PIN) and adding a second ID to them by using their current ID to find the User without entering the User Number. AYC-W6500 Installation Manual Page 40...
  • Page 42 4 or press “#” twice to exit programming mode. • If the Second ID is invalid a long beep is generated, and the AYC-W6500 will continue to wait for a valid ID to be entered. • If the Second ID is of the same type (PIN-PIN/Card-Card) a short beep is generated, and the AYC-W6500 will continue to wait for a valid ID to be entered.
  • Page 43 3. Enter the 3-digit User Slot codes you wish to delete. • If the User Slot is empty, you will hear a long beep and the AYC-W6500 is waiting for a different user slot number. • If the user slot exists, the indication LED will flash green.
  • Page 44 AYC-W6500 returns to Normal Access Mode. If the programming code is invalid, you will hear a long beep and the AYC-W6500 returns to Normal Access Mode. Note: It is recommended that a record be kept of added and deleted users so that it is be easier to keep track of which user slots are empty and which user slots are not.
  • Page 45 0000 is invalid and will not delete the Programming Code. Replacing a Lost Programming Code Note: The AYC-W6500 must be in Normal mode. Make sure that the Indication LED is red before proceeding. 1. Remove power from the Power Supply Unit (AC-C15T or PS-C15T).

  • Page 46: Appendix A. Limited Warranty

    2 years (24 Months). Warranty Remedy Coverage In the event of a breach of warranty, ROSSLARE will credit Customer with the price of the Product paid by Customer, provided that the warranty claim is delivered to ROSSLARE by the Customer during the warranty period in accordance with the terms of this warranty.
  • Page 47 This warranty shall not extend to any ancillary equipment not furnished by ROSSLARE, which is attached to or used in conjunction with a Product, nor to any Product that is used with any ancillary equipment, which is not furnished by ROSSLARE.

  • Page 48: Appendix B. Technical Support
