Installation

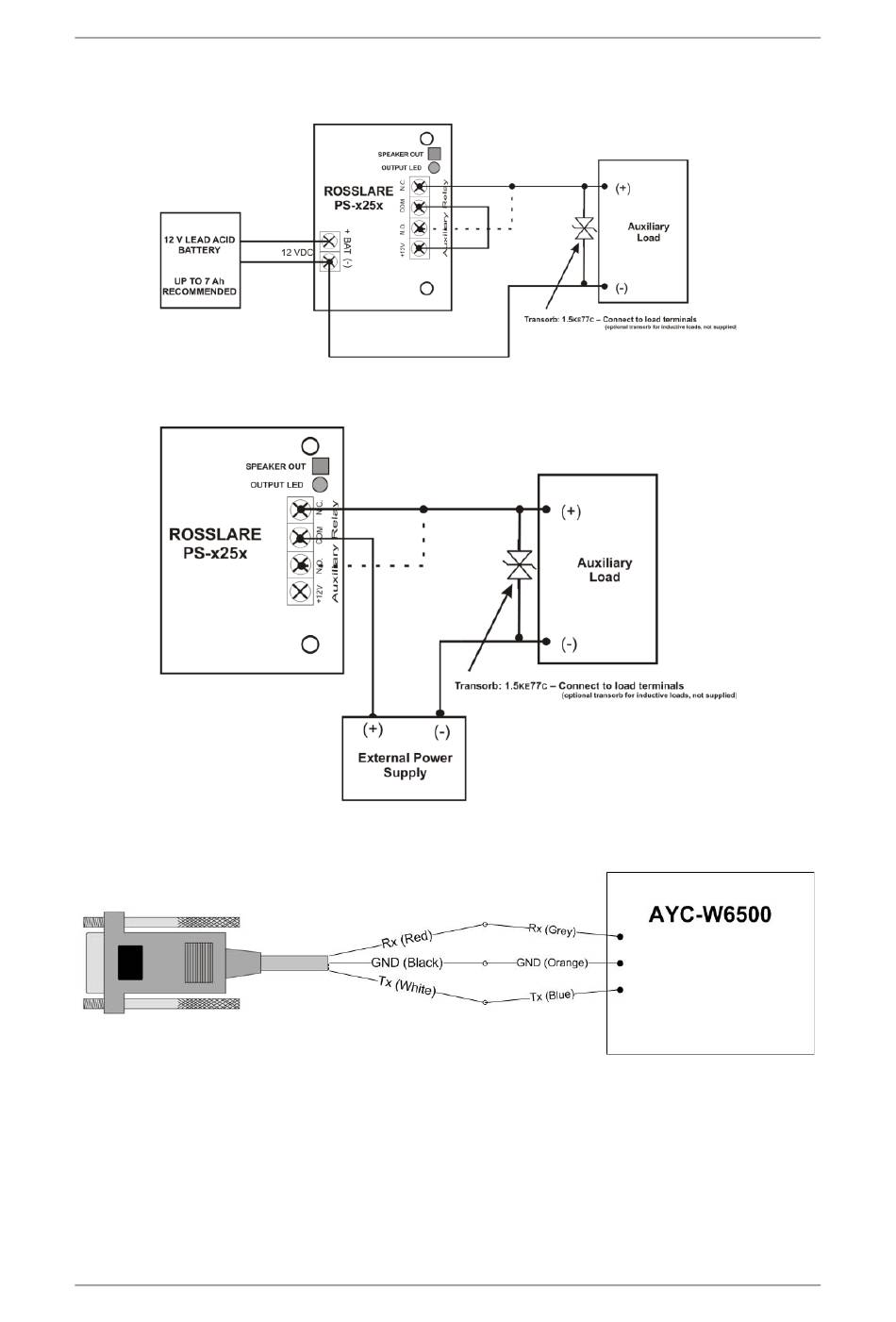

Figure 3 shows the auxiliary output connection using the internal power.
Figure 3: Controller Wiring – Using the Internal Power
Figure 4 shows the auxiliary output connection using the external power.
Figure 4: Controller Wiring – Using the External Power
Figure 5 shows the wiring for to a PC using the RS-232 cable.
Figure 5: PC Connection Using RS-232 Cable
16
AYC-W6500 Installation and Programming Manual
