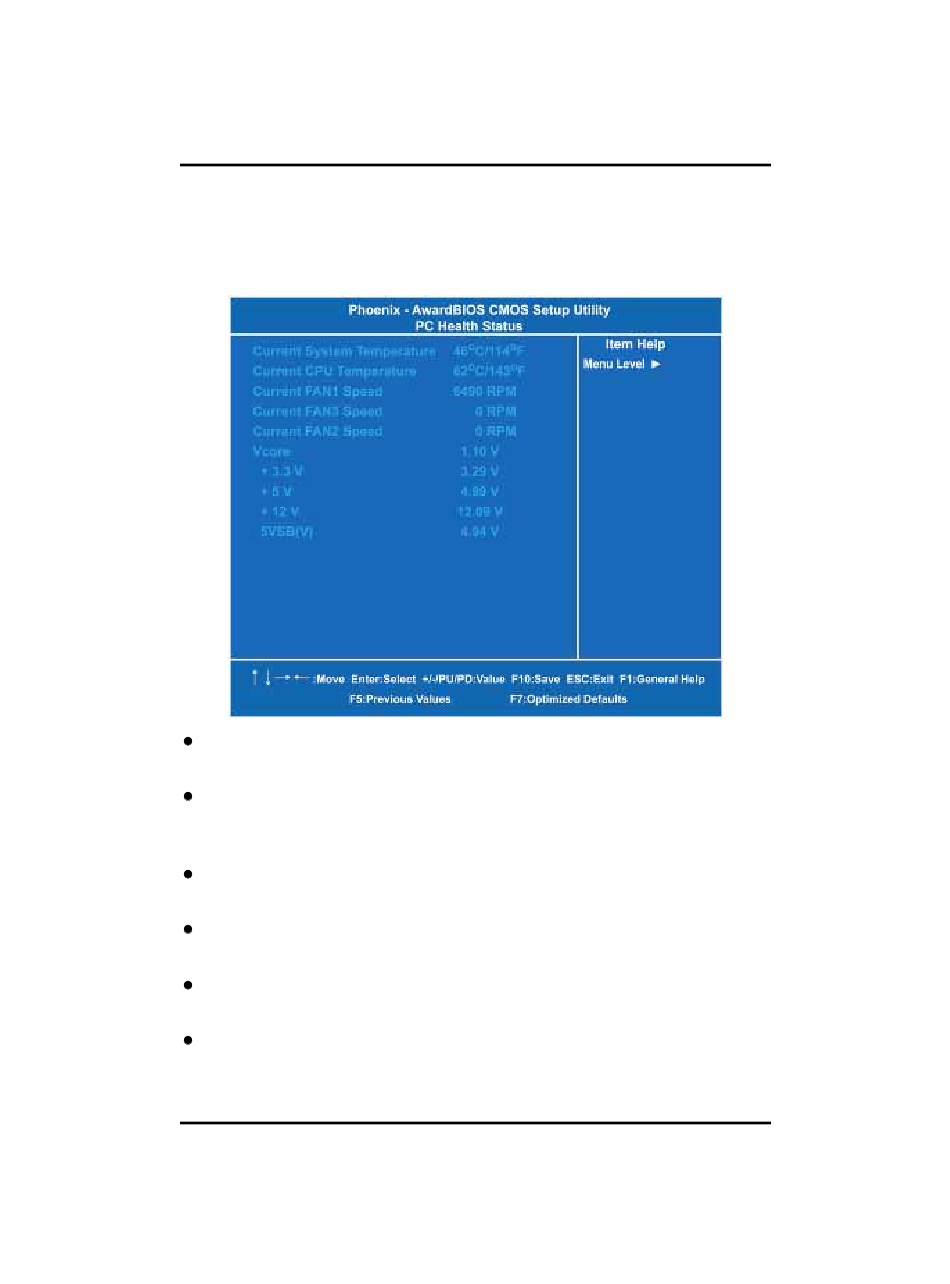

3.11 PC Health Status
This section supports hardware monitoring that lets you monitor those
parameters for critical voltages, temperatures and fan speed of the
board.
Current System Temperature
Show you the current system temperature.
Current CPU Temperature
The current system CPU temperature will be automatically
detected by the system.
Current FAN1 Speed
Show you the current system fan1 temperature.
Current FAN3 Speed
Show you the current system fan3 temperature.
Current FAN2 Speed
Show you the current system fan2 temperature.
Vcore +3.3V/+5V/+12V/VBAT(V)/5VSB
Show you the voltage of +3.3V/+5V/+12V.
Phoenix-Award BIOS Utility
IPC910H Series User's Manual
51
