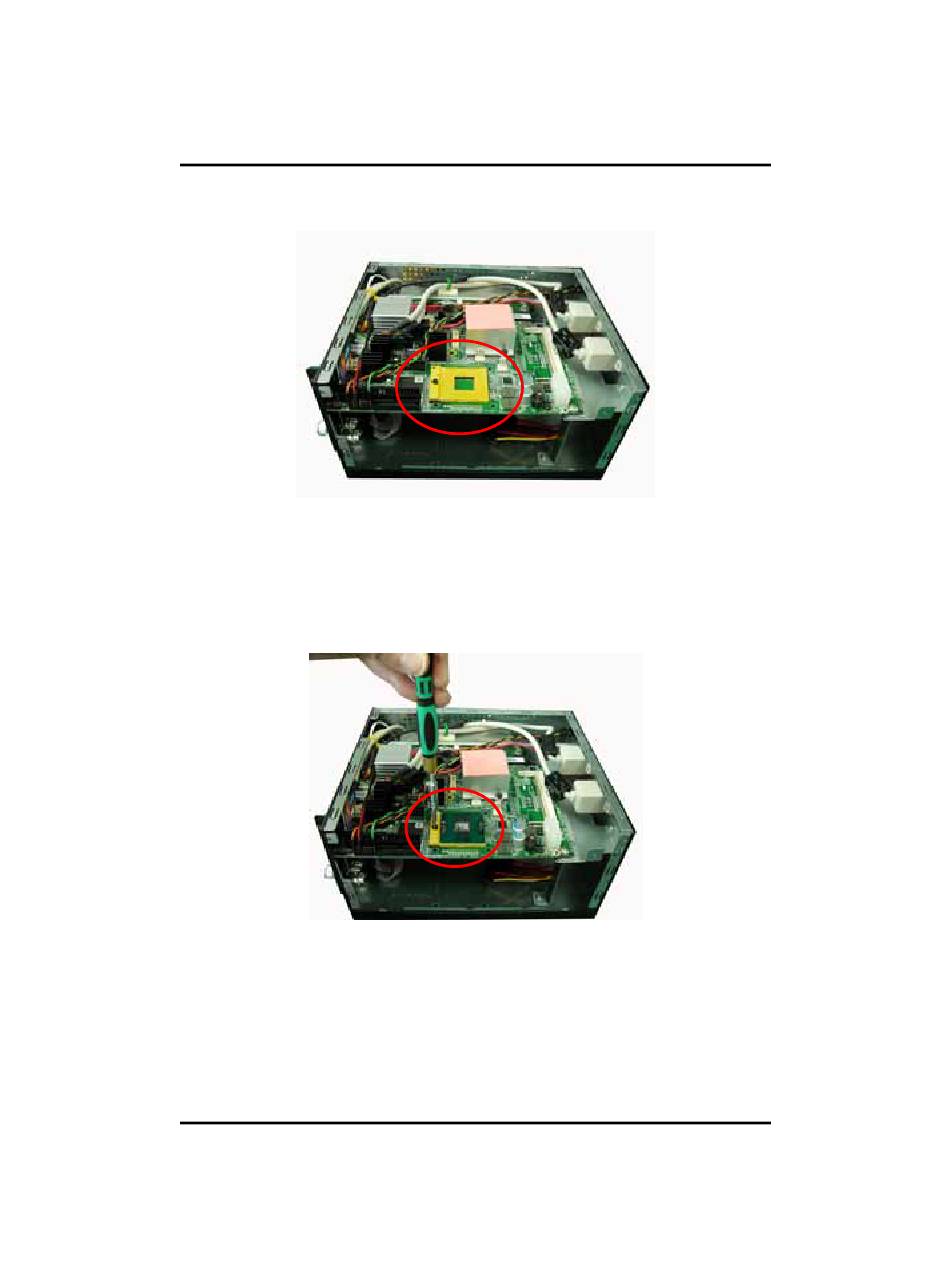

Step 4

After opening the top and side covers, you can locate the

CPU socket and heatsink as marked.

Step 5

Align pins of the CPU with pin holes of the socket. Be careful

of the CPU's orientation that you need to align the arrow mark

on the CPU with the arrow key on the socket. Place the CPU

into the socket, and use a screwdriver to lock it onto the

socket.

Hardware Installation

IPC910H Series User's Manual
