2.4
Installing the PCIe Card (when Backplane
HAB100 installed)
Notes
The system provides two PCIe slots when backplane
HAB100 is installed. You can install one PCIe x1 and
one PCIe x4; or two PCIe x1.
Step 1
Turn off the system.
Step 2
Disconnect the power connector.
Step 3

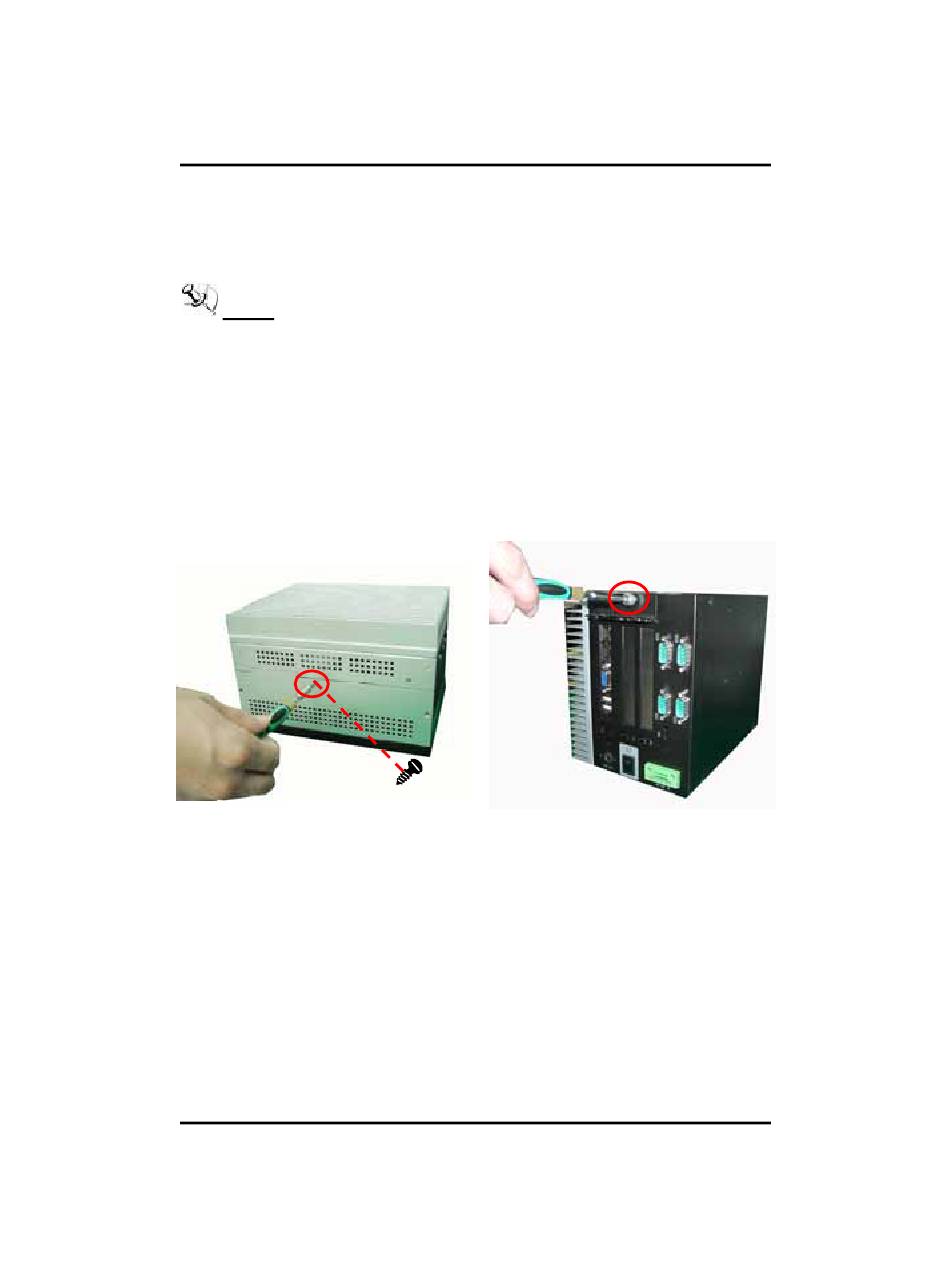

Loosen screws to remove the side cover from the chassis.
Removing the PCI bracket by releasing the button as marked.
Hardware Installation
IPC910H Series User's Manual
19
