IPC910H Series User's Manual
2.5
Installing the PCIe Card (when Backplane
HAB103 installed)
Notes
The system provides PCI & PCIe slots when backplane
HAB103 is installed. You can install one PCI and one
PCIe x4.
Step 1
Turn off the system.
Step 2
Disconnect the power connector.
Step 3

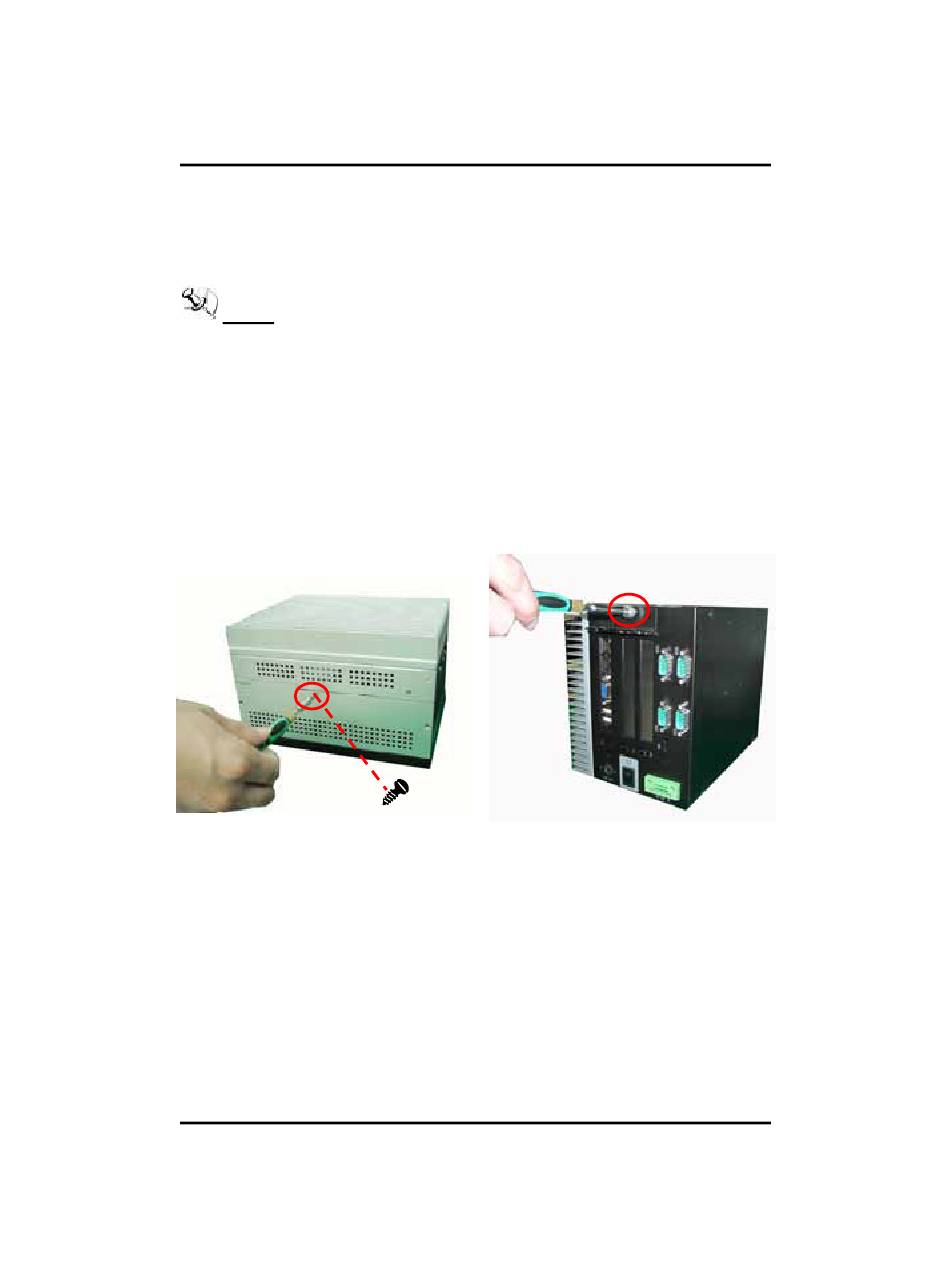

Loosen screws to remove the side cover from the chassis.
Removing the PCI bracket by releasing the button as marked.
22
Hardware Installation
