Cable Cubby Drawer CCD 220 and CCD 320
Step 4: Mounting a Power Supply to the CCD 320 (Optional)

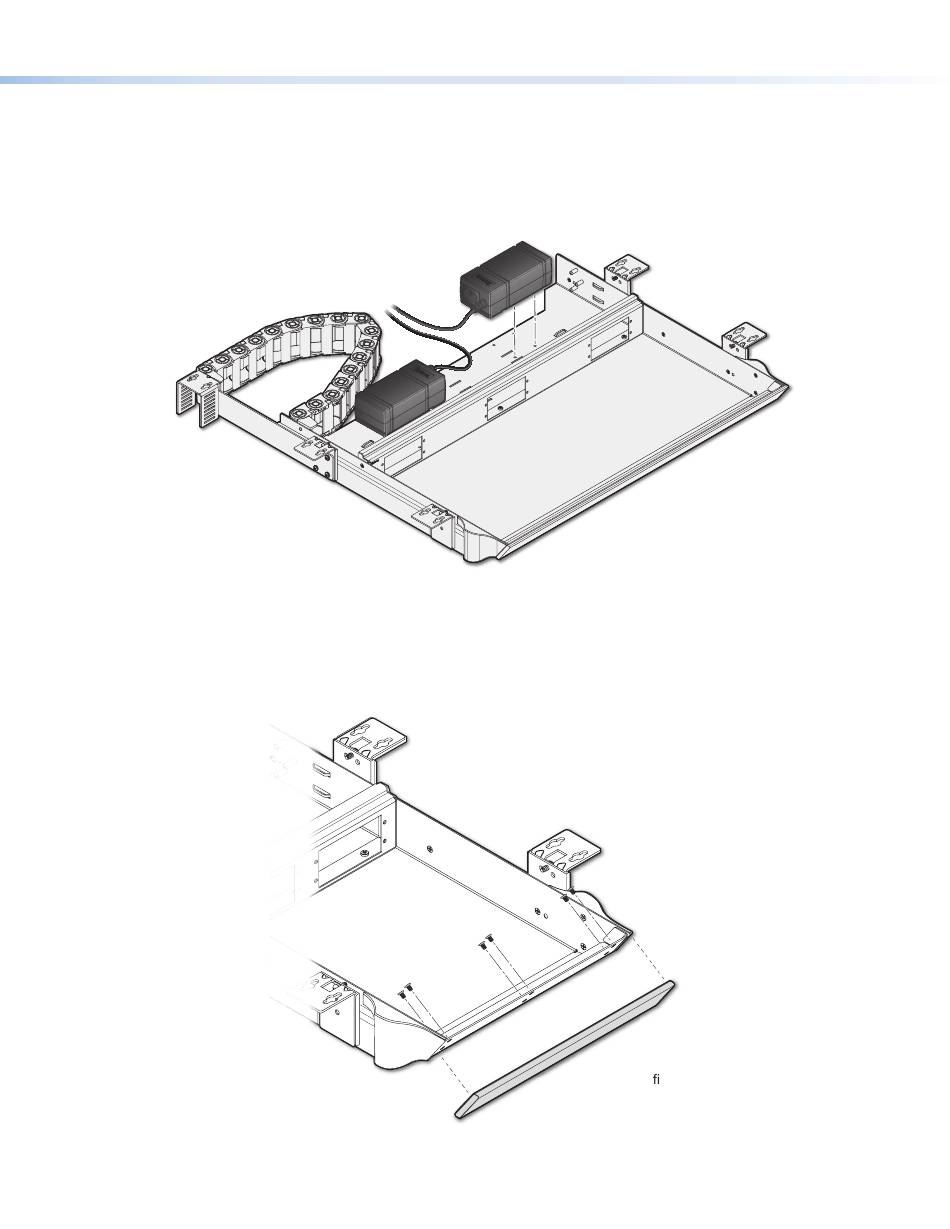

Place one or two power supplies behind the AAP modules as seen in the image below.
A power supply can be mounted in either location or orientation by lining up the mounting holes.
1
Install #4-40 mounting screws through
the bottom holes to secure the power supply.
Step 5: Customize the Front Façade (Optional)
Refinish, paint, or add veneer to the façade to complement the furniture, or fabricate a new facade using the
dimensions seen on the next page.
9
1 Remove the screws holding
the facade to the drawer.
•
Installation Guide (Continued)
2
Once modi ed, reattach the facade
to the drawer by using the same screws
removed from Step 1.
Or use the proper hardware or
adhesive for the new facade material
