Extron electronics Cable Cubby 202 Installation Manual

Cable Cubby 202 • Installation Guide
This guide provides instructions for an experienced installer to install and connect the
Extron Cable Cubby 202 Cable Access Enclosures.

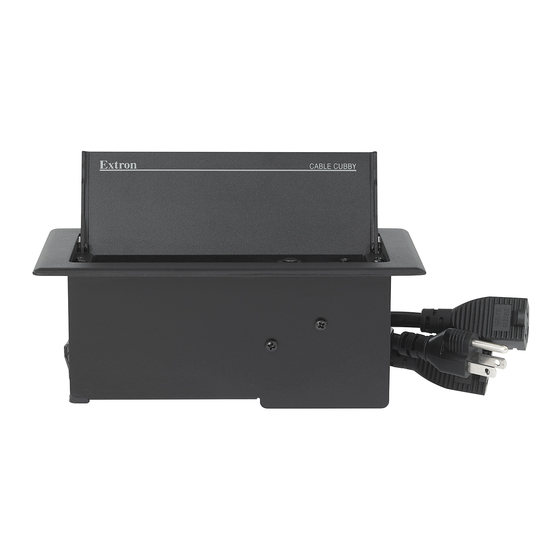

The Cable Cubby units are furniture-mounted enclosures for cable access,
connections, and AC power. Cables that are not in use can be stored out of
the way while remaining connected to the presentation system.
Planning
Check with local and state regulations before
starting the installation:
…
Ensure that the planned installation complies with building and
electrical codes.
…
Ensure that the planned installation complies with the Americans with Disabilities
Act or other accessibility requirements.
Check all parts and equipment before installation:
…
Ensure that all parts are present in each kit.
…
Ensure that necessary tools and equipment are available for the installation.

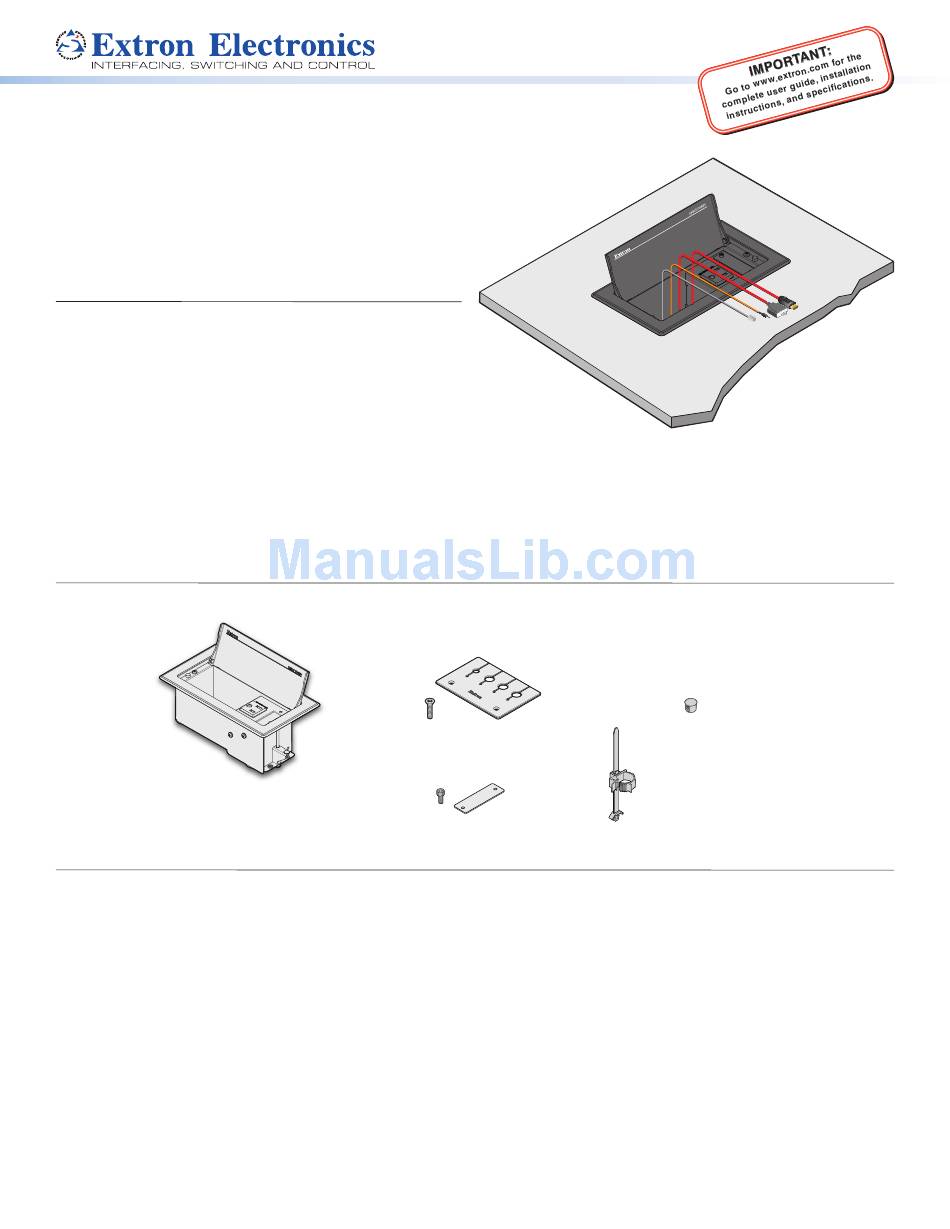

Kit Contents
Cable Cubby 202
Preparing the Table
Cut a hole in the surface where the enclosure will be installed. Read the following information before making a cut.
Determine the best location for the enclosure
…
Ensure that the location where the Cable Cubby is to be installed is convenient for as many users as possible.
…
Ensure that the edge on which the lid opens is oriented correctly.
…
Ensure that there is ample space under the table for cables.
Choose a method for cutting the hole in the table
See the next page for details on cutting the hole in the table.
Cable Grommet Plate
and #4-40 Plate Screws
Mini AAP and #4-40 Mounting
Screws (US model only)
Grommet Plugs
(3) 3/8", (1) 1/4"
AC Cord Retainer Clip
(Non-US models only)
1
