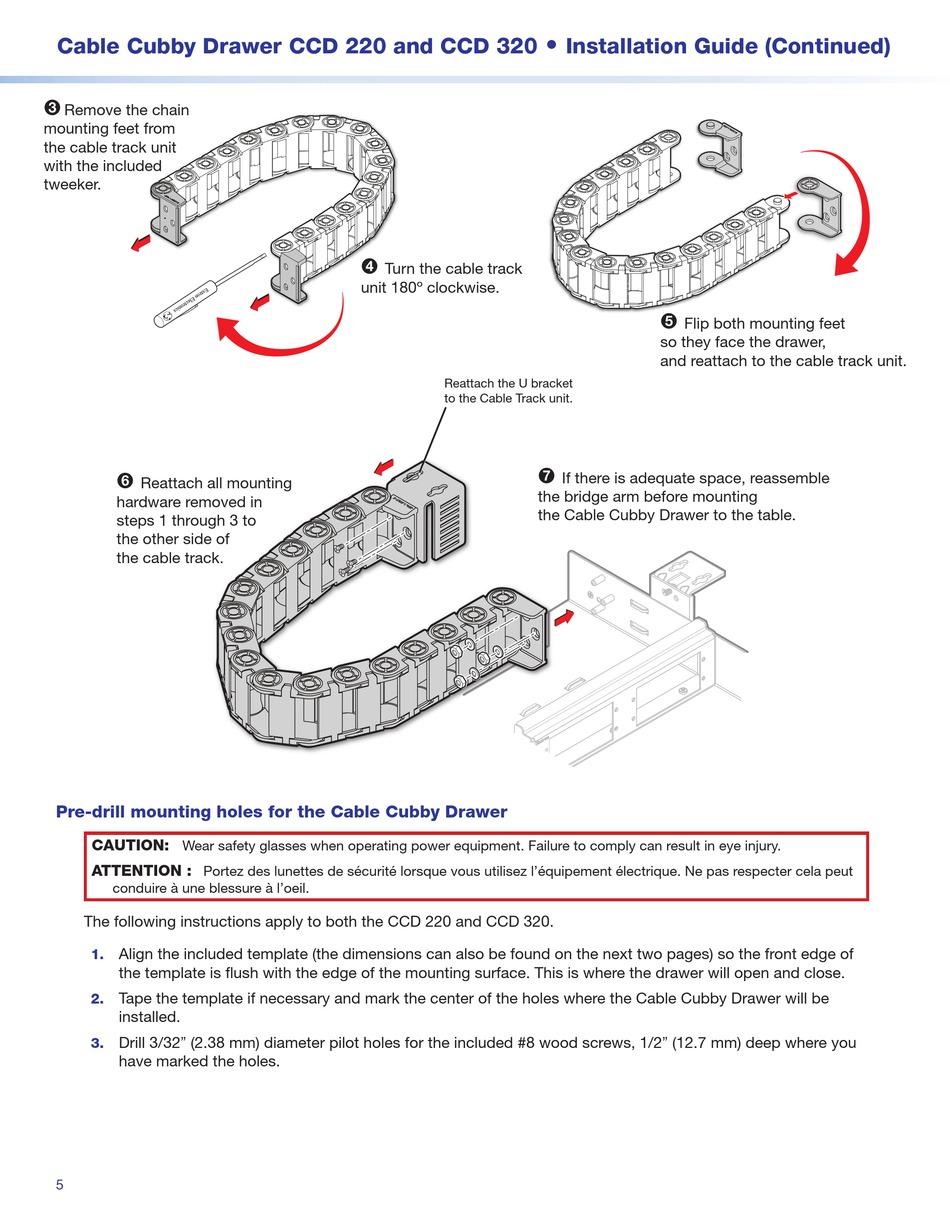

Cable Cubby Drawer CCD 220 and CCD 320
3
Remove the chain
mounting feet from
the cable track unit
with the included
tweeker.
6
Reattach all mounting
hardware removed in
steps 1 through 3 to
the other side of
the cable track.
Pre-drill mounting holes for the Cable Cubby Drawer
CAUTION:
Wear safety glasses when operating power equipment. Failure to comply can result in eye injury.
ATTENTION :
Portez des lunettes de sécurité lorsque vous utilisez l'équipement électrique. Ne pas respecter cela peut
conduire à une blessure à l'oeil.
The following instructions apply to both the CCD 220 and CCD 320.
Align the included template (the dimensions can also be found on the next two pages) so the front edge of
1.
the template is flush with the edge of the mounting surface. This is where the drawer will open and close.
Tape the template if necessary and mark the center of the holes where the Cable Cubby Drawer will be
2.
installed.
Drill 3/32" (2.38 mm) diameter pilot holes for the included #8 wood screws, 1/2" (12.7 mm) deep where you
3.
have marked the holes.
5
4
Turn the cable track
unit 180º clockwise.
Reattach the U bracket
to the Cable Track unit.
7
the bridge arm before mounting
the Cable Cubby Drawer to the table.
•
Installation Guide (Continued)
5
Flip both mounting feet
so they face the drawer,
and reattach to the cable track unit.
If there is adequate space, reassemble
